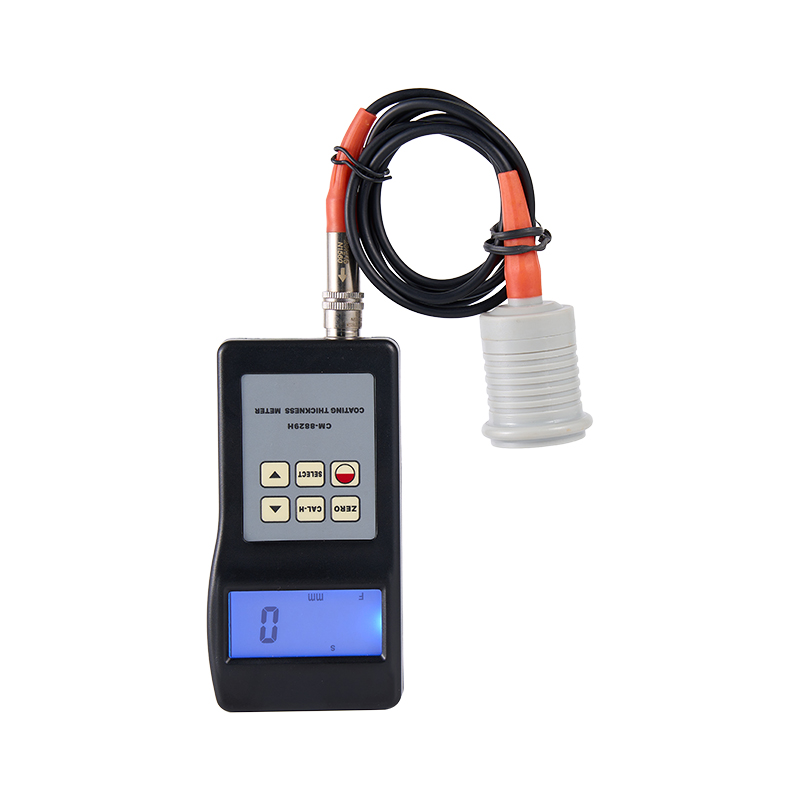

Coating Thickness Gauge CM-8829H
Spec：

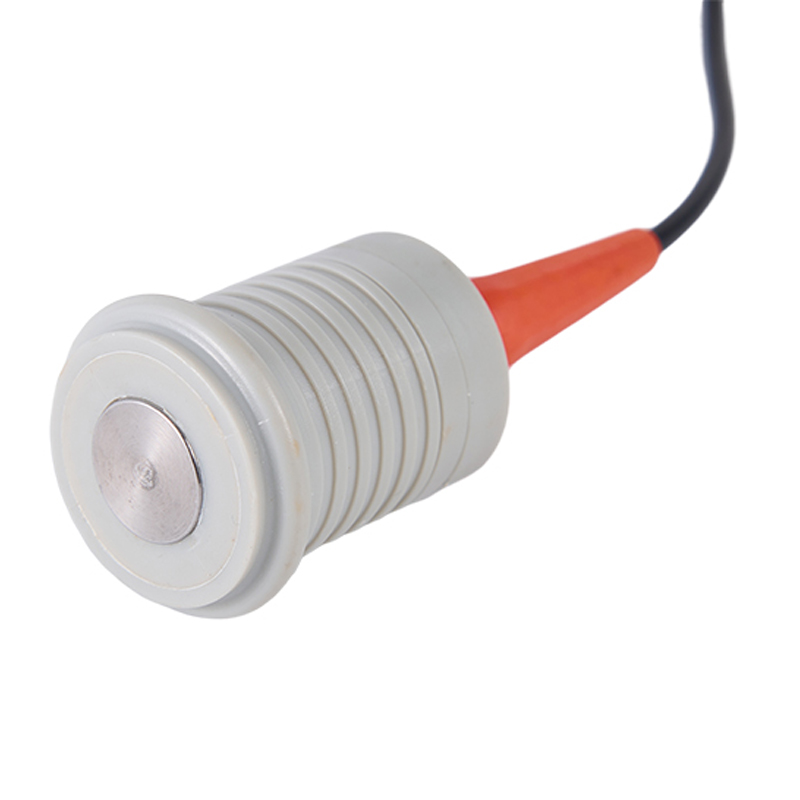

The F probes measure the thickness of non-magnetic materials on magnetic materials.
Model：
CM-8829H
產品詳情
Features
* Measuring principle: magnetic induction (F). * Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the
coating thickness of curved objects and tiny objects.） * Metric/imperial system selectable. * Manual or automatic shut down. * Automatic memory of calibration value,and automatic recognize the substrate. * Operation process have buzzing reminder,while no buzzing in continuous mode. * Use USB/RS-232 data output to connect with PC. * Provide Bluetooth data output choice.
Principles
Applications
Examples
F Type Magnetic Induction (Iron Base)
Measure the thickness of non-magnetic materials on magnetic materials
Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc
NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
