Provide high-tech measuring products and technical developments for instrument service providers

NDT and Photoelectric Measurements

產品詳情

Share to：

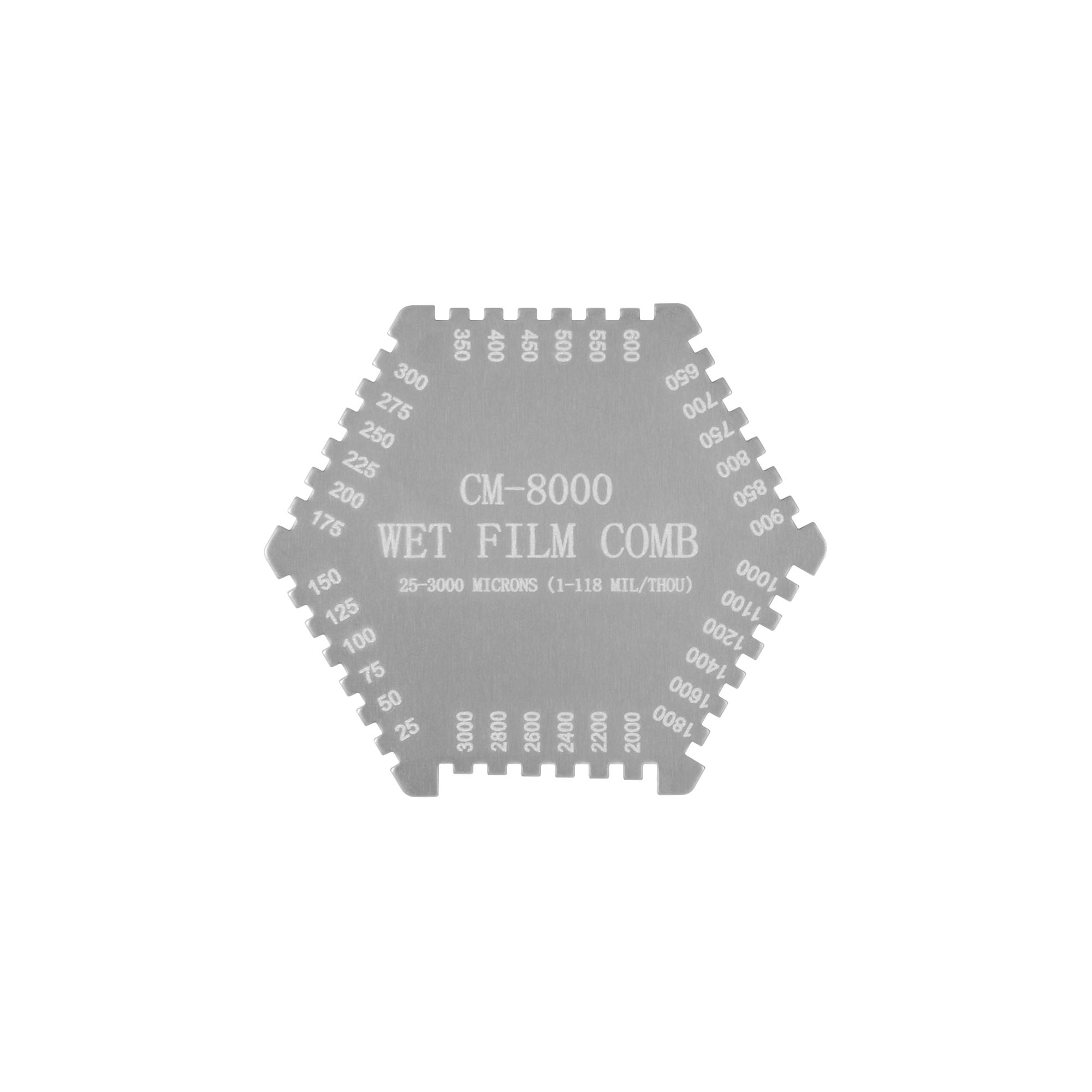

Wet Film Comb CM-8000

Spec：	Used for checking the thickness coating of wet paint, enamel lacquer,adhensive , architectural coating, color coating, varnish, chemical industry,or other coating that has been applied to a smooth sur
Model：	CM-8000

產品詳情

Specifications

Standards		GB/T1764-79 GB/T134522-92 ISO2808-74
Range		25μm~3000μm / 1mil~118mil
Values		25μm, 50μm, 75μm, 100μm, 125μm, 150μm, 175μm, 200μm, 225μm, 250μm, 275μm, 300μm, 350μm, 400μm, 450μm, 500μm, 550μm, 600μm, 650μm, 700μm, 750μm, 800μm, 850μm, 900μm, 1000μm, 1100μm, 1200μm, 1400μm, 1600μm, 1800μm, 2000μm, 2200μm, 2400μm, 2600, 2800, 3000μm
		1mil, 2mil, 3mil, 4mil, 5mil, 6mil, 7mil, 8mil, 9mil, 10mil, 11mil, 12mil, 14mil ,16mil, 18mil, 20mil, 22mil, 24mil, 26mil, 28mil, 30mil, 31mil, 33mil, 35mil, 39mil, 43mil, 47mil, 55mil, 63mil, 71mil, 79mil, 87mil, 94mil, 102mil, 110mil, 118mil

　Measuring Procedure

1. Select appropriate comb according to approximate known thickness.
2. Hold comb perpendicular to surface coating to be measured.
3. Press into coating until the comb stands square on substrate.
4. Wet film thickness is between the highest step which is coated and the next (higher) step which remains uncoated.

　Downloads

　WetFilmComb_CM-8000_Catalog

　CM-8000_EN_Manual
