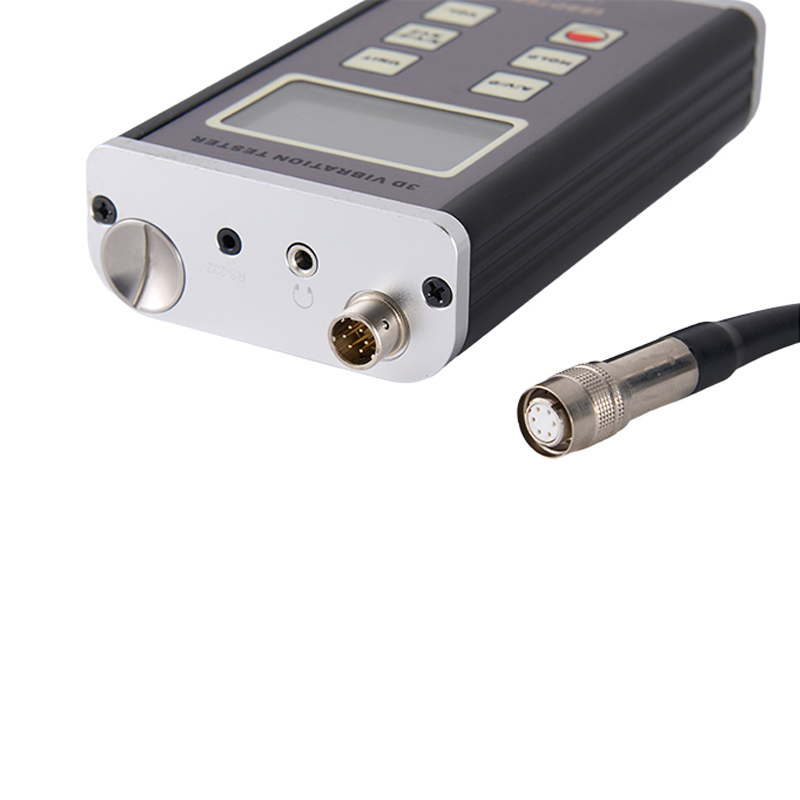

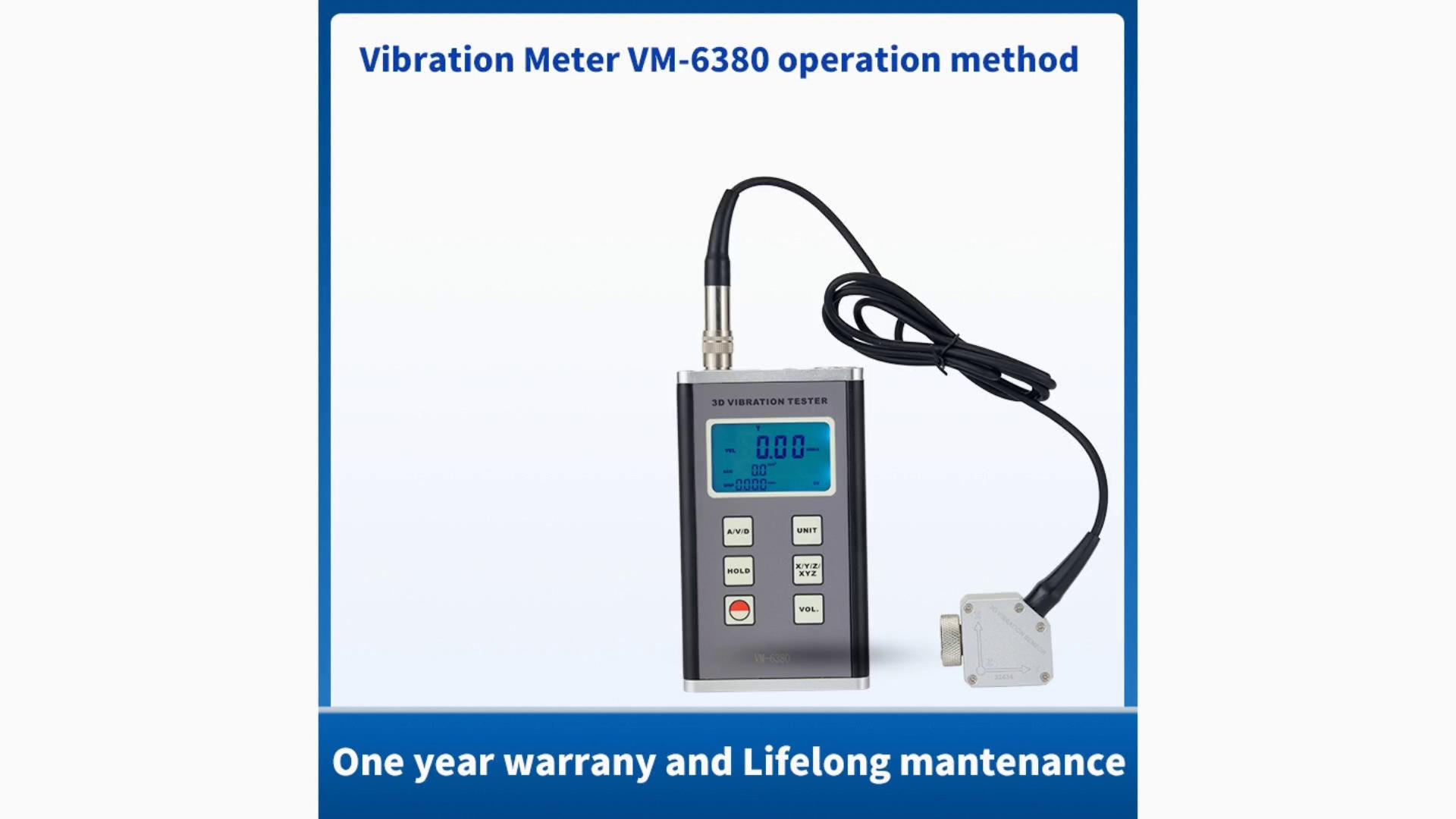

Vibration Meter VM-6380

Spec：	Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.
Model：	VM-6380

產品詳情

　Features

* 3 same parameters in one display for 3 dimensional measurement or 1 dimensional measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

　Vibration Standard

ISO/IS2373 Motor Quality Standard According As Vibration Velocity
Quality Rank	Rev(rpm)	H:high of shaft(mm) Maximum vibration velocity rms(mm/s)
Quality Rank	Rev(rpm)	80<H<132	132<H<225	225<H<400
Normal	600~3600	1.8	2.8	4.5
Good(R)	600~1800	0.71	1.12	1.8
Good(R)	1800~3600	1.12	1.8	2.8
Excellent(S)	600~1800	0.45	0.71	1.12
Excellent(S)	1800~3600	0.71	1.12	1.8

　Specifications

Sensor	Piezoelectric Transducer
Measuring Range	Acceleration	0.1m/s2~400m/s2 0.3ft/s2~1312ft/s2 0.0g~40g Equivalent Peak
	Velocity	0.01mm/s~400mm/s 0.004inch/s~16.0inch/sTrue RMS
	Displacement	0.001mm~4.0 mm 0.04mil~160.0 mil Equivalent Peak-peak
Frequency Range	Acceleration	10Hz~10kHz
	Velocity	10Hz~1kHz
	Displacement	10Hz~1kHz
Accuracy	5% of Reading+2 digits
Operating Conditions	Temperature	0oC~50oC
	Humidity	<90%RH

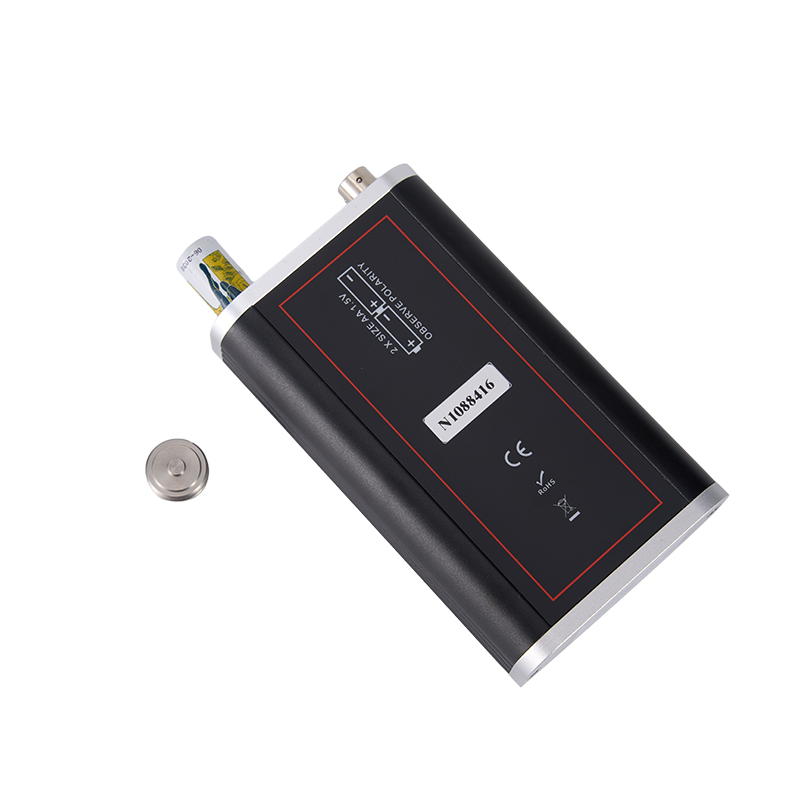

Power Supply	2x1.5V AA(UM-3)Battery
Dimensions	137mmx76mmx32mm
Weight	425g(Not Including Batteries)

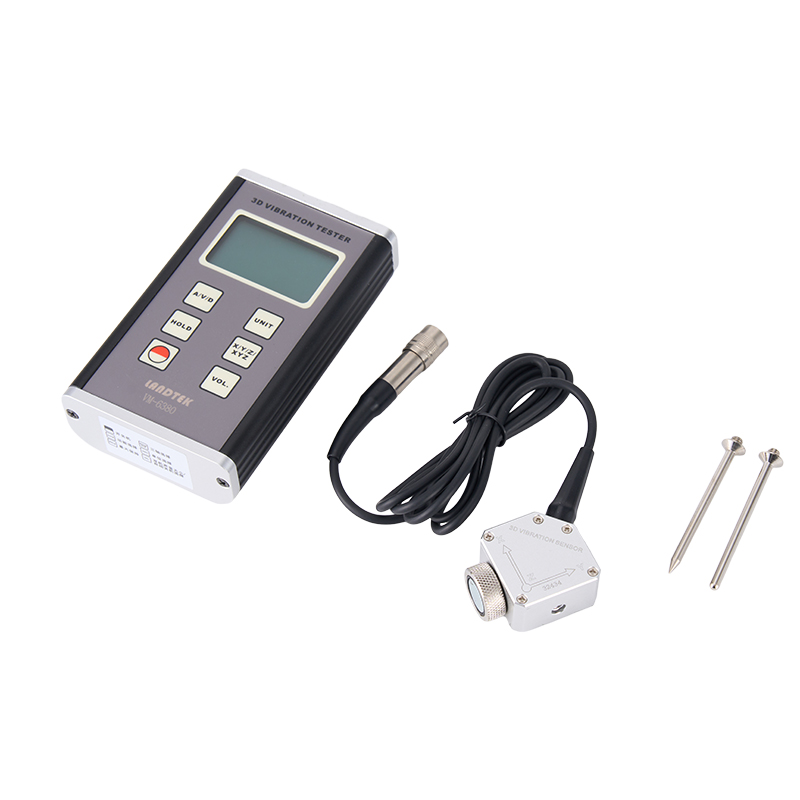

Standard Accessories	Main Unit

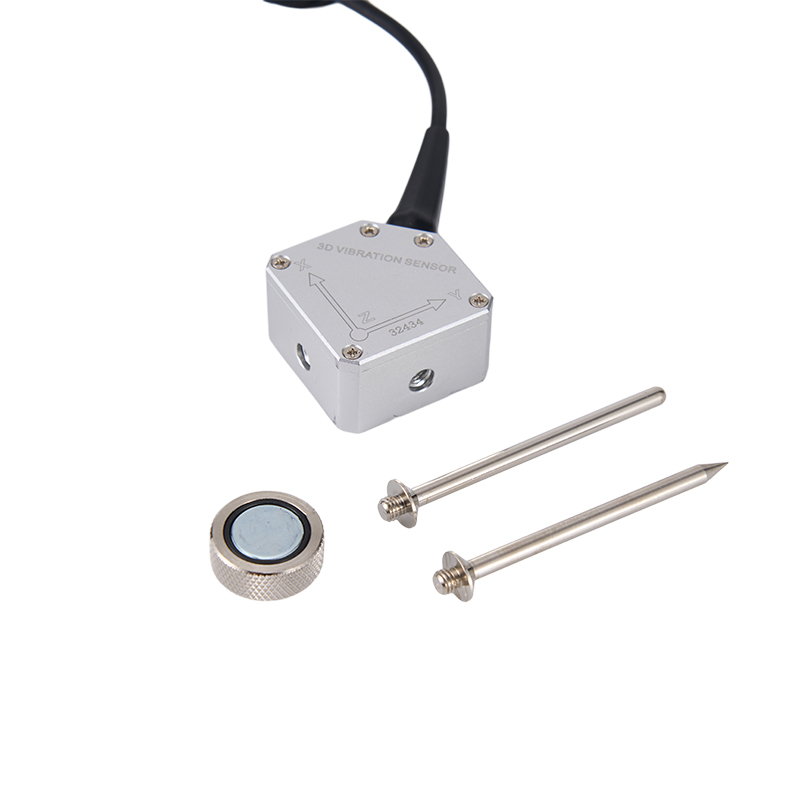

	Piezoelectric Transducer
	Powerful Rare Earth Magnet
	Probe(Cone)&Probe(Spherical)

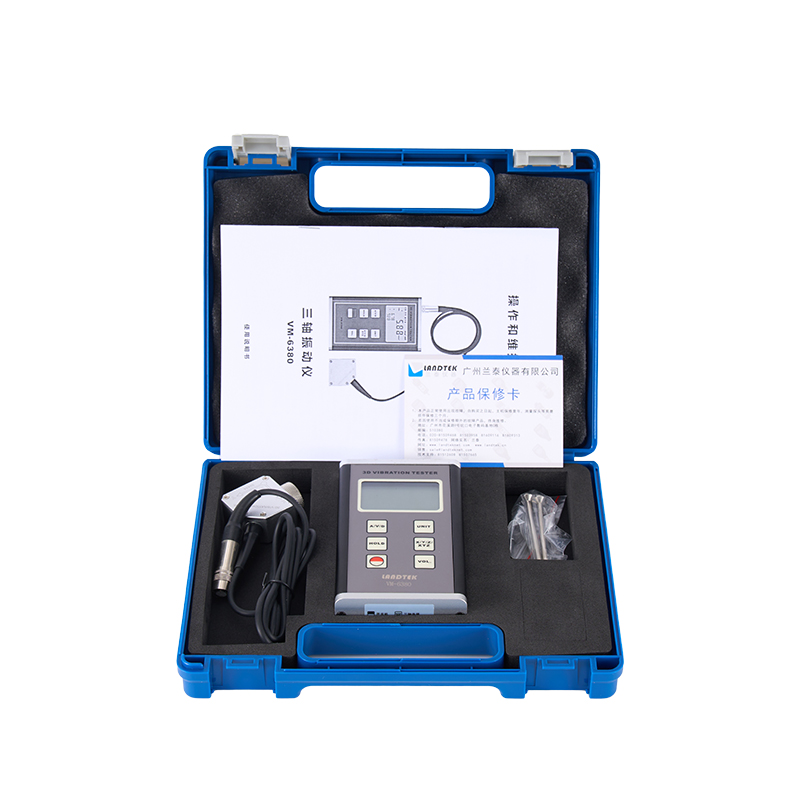

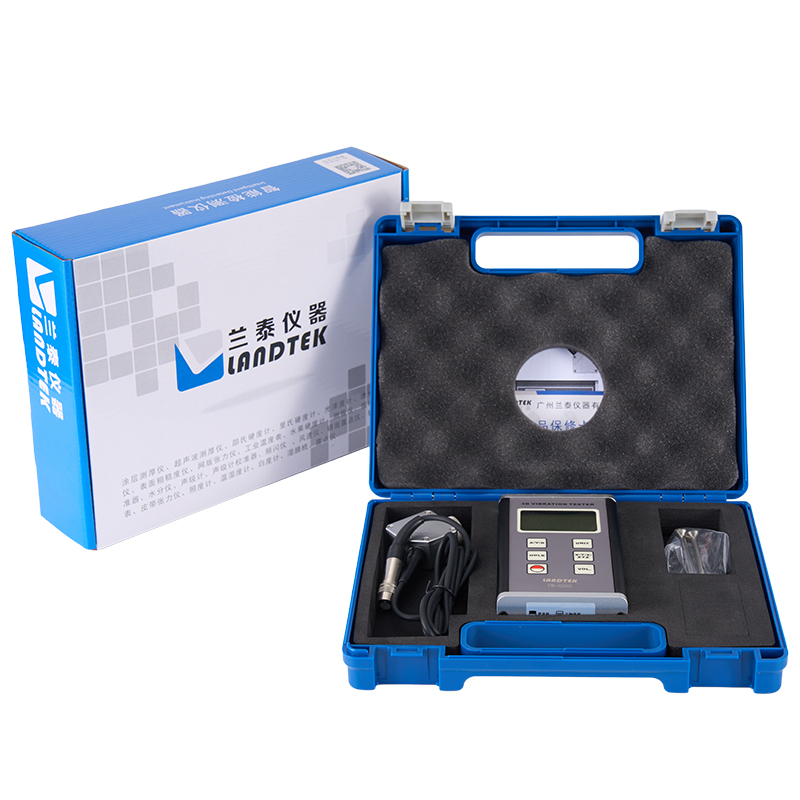

	Carrying Case(B04)
	Manual Book
Optional Accessories	Headset
	RS-232C Data Cable with Software
	Bluetooth Data Adapter with Software

　Downloads

VibrationMeter_VM-6380_Catalog

VM-6380_EN_Manual

　RS232Software

NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
