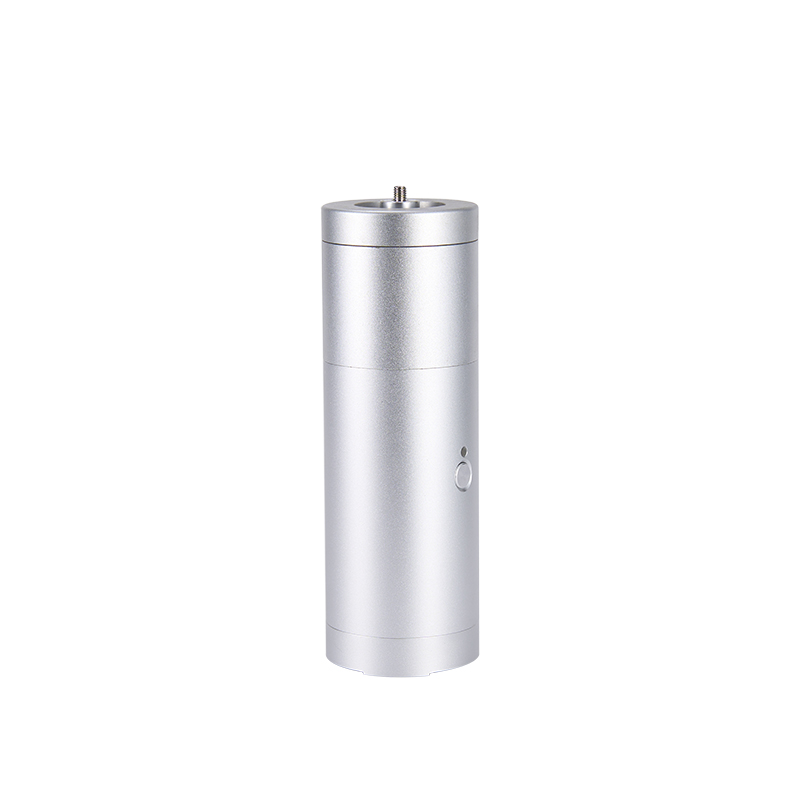

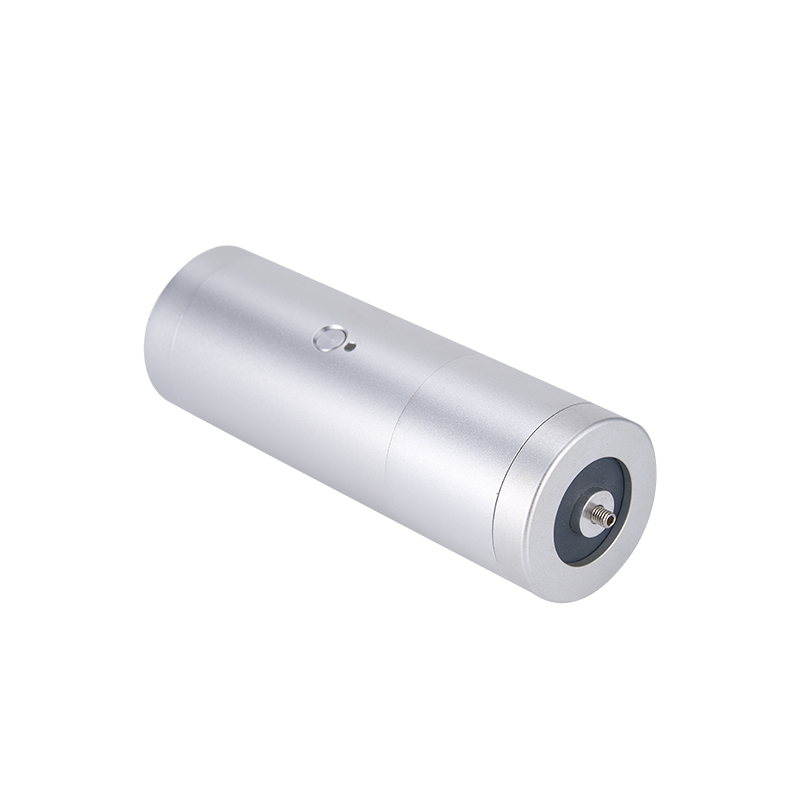

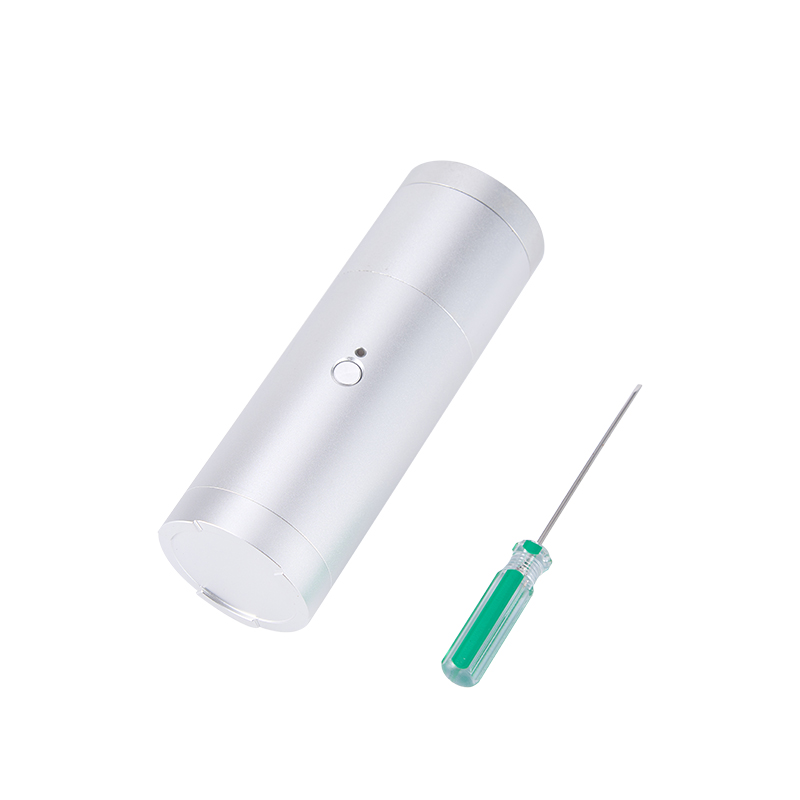

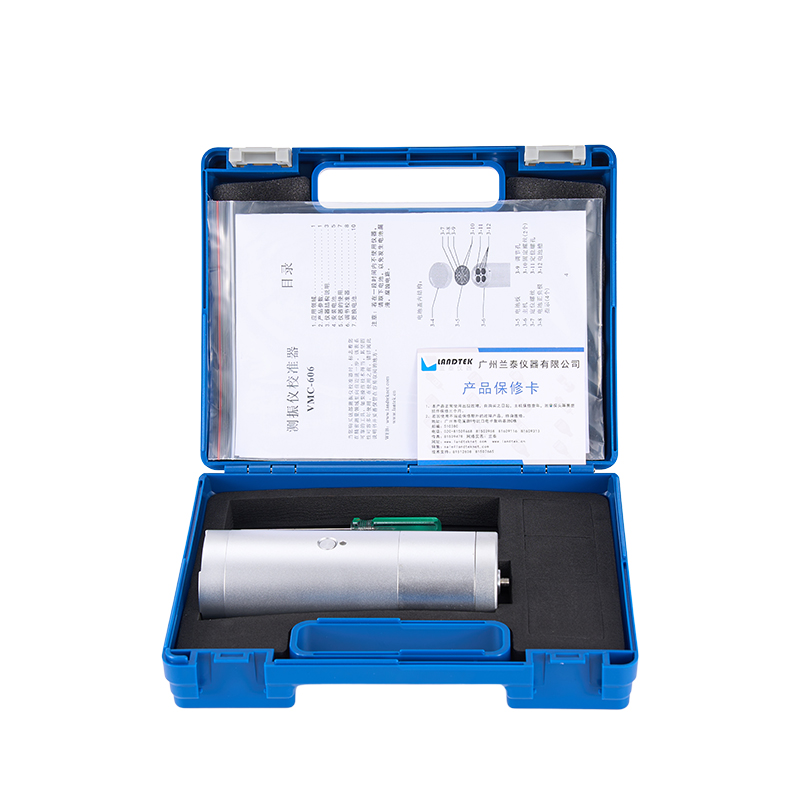

Vibration Calibrator VMC-606
Spec: The Vibration Calibrator is a small, self-contained handheld shaker designed for quick and easy checking of accelerometers, vibration monitoring systems and recording systems.
Model: VMC-606
產品詳情

 Applications

The Vibration Calibrator is a small, self-contained handheld shaker designed for quick and easy checking of accelerometers, vibration monitoring systems and recording systems. Providing a known and controlled RMS vibration for verification of accelerometers weighing up to 150g.

 Features

*Operates at 159.2 Hz.
*10 mm/s RMS velocity output.
*Drives vibration sensors up to 150g.
*CE compliant.

  Specifications

Operating Frequency
159.2Hz±0.5%
Acceleration Output
14.14m/s2(Peak)±3%
Velocity Outout
10mm/s(RMS)±3%
Displacement Output
28um(Peak-Peak)±4%
Transverse Output
<5%
Distortion
<3%
Maximum Losd
150 g
Ramp-Up Time
< 3 Seconds
Operating Conditions
Temp: -10°C~40°C        Humidity: <85%RH

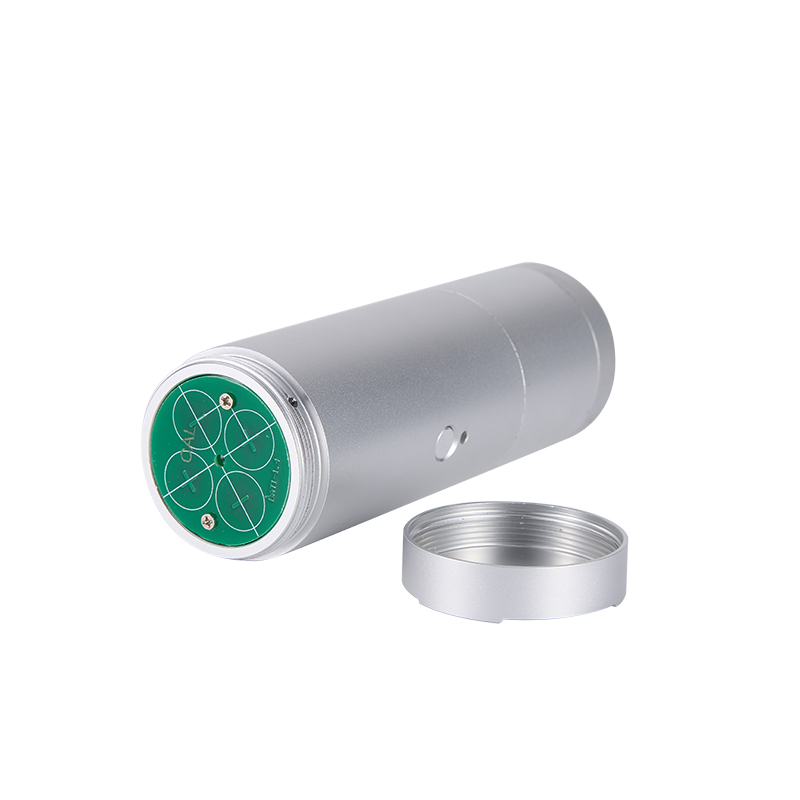

Battery Supply
4x1.5V AA (UM-3) battery
Size (Diamter x Height)
56 mm x 200 mm
Weight (with batteries)
960g

 Downloads

VibrationCalibrator_VMC-606_Catalog

VMC-606_EN_Manual

  RS232Software

NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
