Provide high-tech measuring products and technical developments for instrument service providers

NDT and Photoelectric Measurements

產品詳情

Share to：

Ultrasonic Thickness Meter TM-1240

Spec：	Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.
Model：	TM-1240

產品詳情

　Features

* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

　Material Selection

Code	Material
CD01	Steel
CD02	Cast Iron
CD03	Aluminum
CD04	Red Copper
CD05	Brass
CD06	Zinc
CD07	Quartz Glass
CD08	Polyethylene
CD09	PVC
CD10	Gray Cast Iron
CD11	Nodular Cast Iron
XXXX	Sound Velocity

　Specifications

Display	LCD
Operating Principle	Ultrasonic
Measuring Range	0.75mm~400mm(45#steel)(Depend on Probe)
Resolution	0.1mm/0.01mm/0.001inch
Accuracy	±(0.5%n+0.1mm)
Lower Limit of Pipes	Φ15mmx2.0mm Φ20mmx3.0 mm Determined By Transducer
Sound Velocity	1000m/s~9999 m/s
Operating Conditions	Temperature:0oC ~40oC Humidity:<85%RH
Power Supply	4x1.5V AAA(UM-4)Battery
Dimensions	140mmx72mmx34mm
Weight	185g(Not Including Batteries)

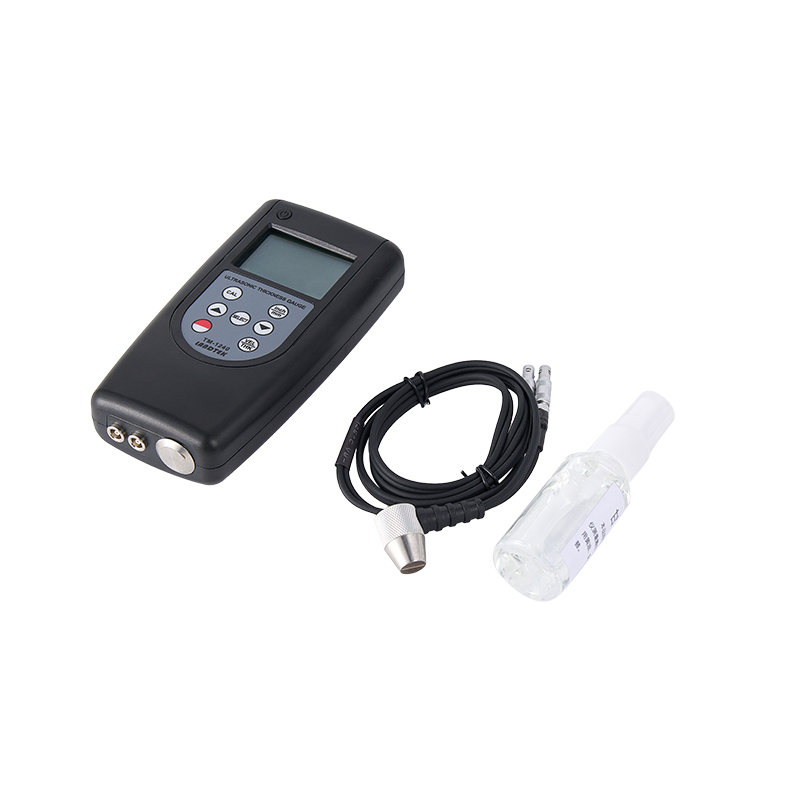

Standard Accessories	Main Unit
	Standard Probe
	Coupling Agent

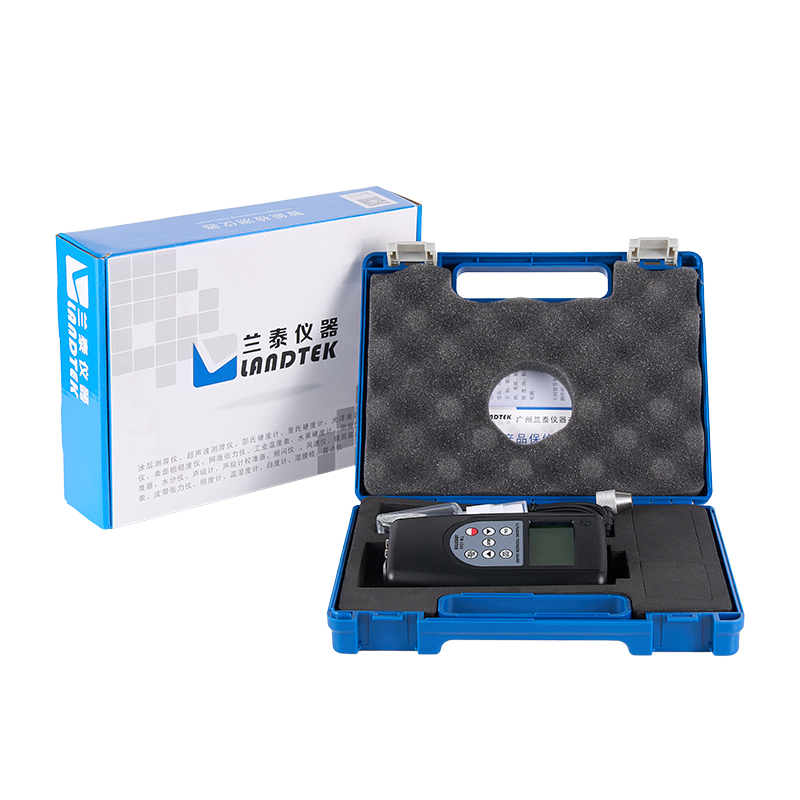

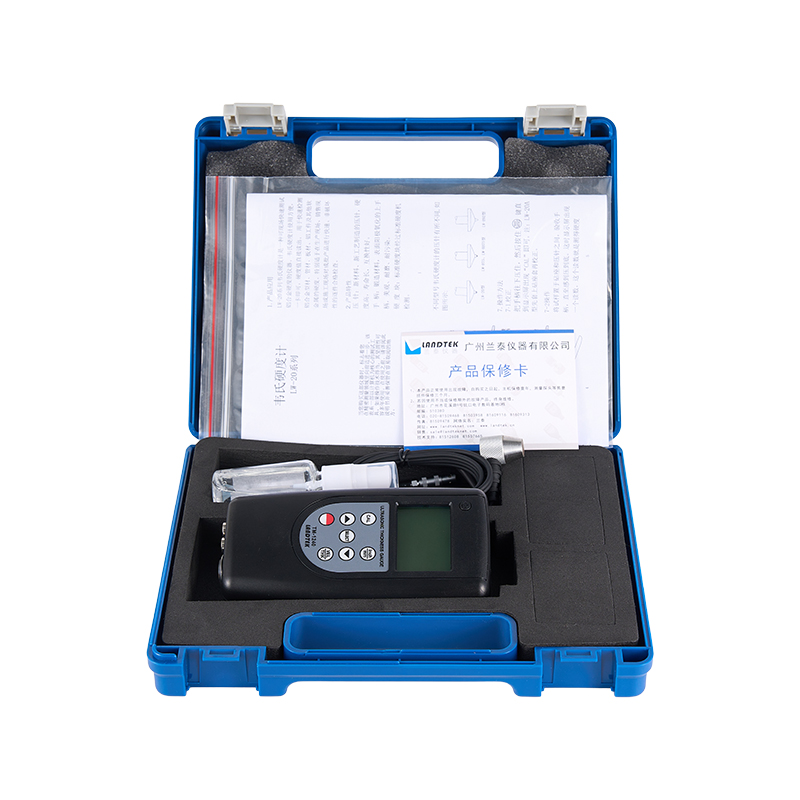

	Carrying Case(B04)
	Operation Manual
Optional Accessories	Other Special-purpose Probe
	RS-232C Data Cable with Software
	Bluetooth Data Adapter with Software

　Downloads

　UltrasonicThicknessMeter_TM-1240_Catalog

　TM-1240_EN_Manual

　RS232Software

　 NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
