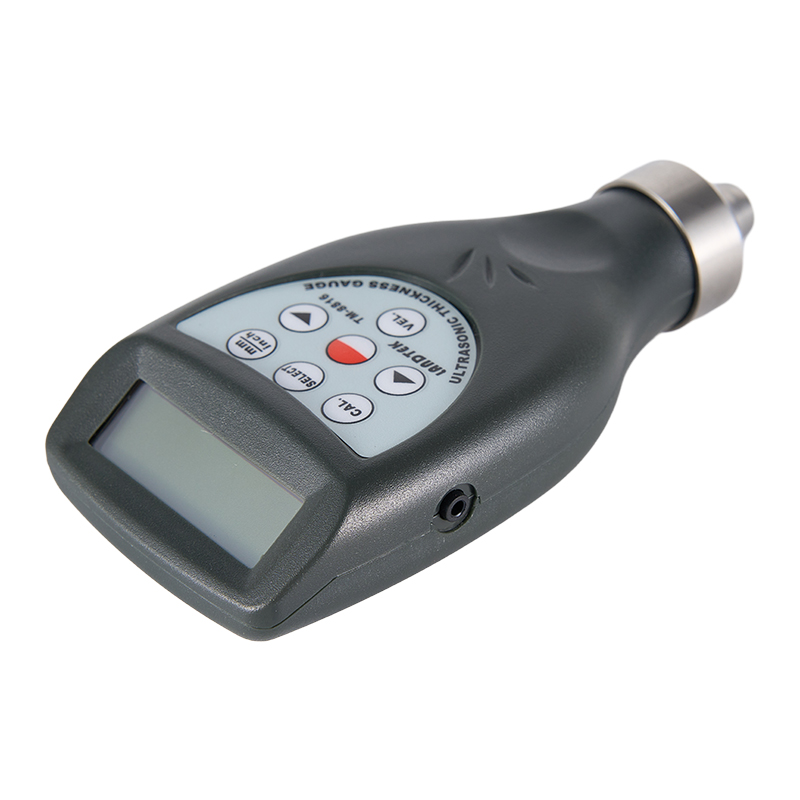

Ultrasonic Thickness Meter TM-8816
Spec: Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.
Model: TM-8816
產品詳情

 Features

* Wide Measuring Range and high resolution. With high power emission and broad band receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.
* Applicable to measure the thickness of many materials, e. g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

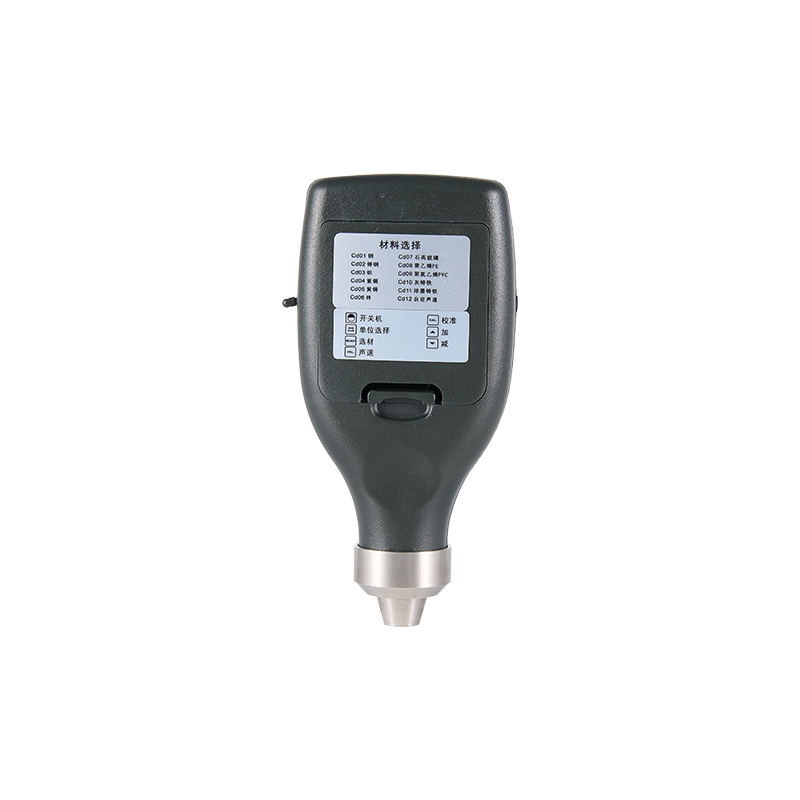

Code
Material
CD01
Steel
CD02
Cast Iron
CD03
Aluminum
CD04
Red Copper
CD05
Brass
CD06
Zinc
CD07
Quartz Glass
CD08
Polyethylene
CD09
PVC
CD10
Gray Cast Iron
CD11
Nodular Cast Iron
XXXX
Sound Velocity



Housing Material
Strong,Light Weight ABS-Plastic
Display
4 Digit,10 mm LCD
Measuring Range
1.0~200mm/0.04~8 inch
Resolution

MPE:+(0.1+H/100)mm

Accuracy
±(0.5%n+0.05)
Sound Velocity
500~9,990m/s
Lower Limit of Pipes
Φ15x2.0mmΦ20x3.0mm Determined By Transducer
Operating
Conditions
Temperature
0~40oC
Humidity
<85%RH
Power Supply
4x1.5V AAA(UM-4)Battery
Dimensions
135x65x27 mm
Weight
120g(Not Including Batteries)

 Downloads

  UltrasonicThicknessMeter_TM-8816_Catalog

  TM-8816_EN_Manual

  RS232Software

NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
