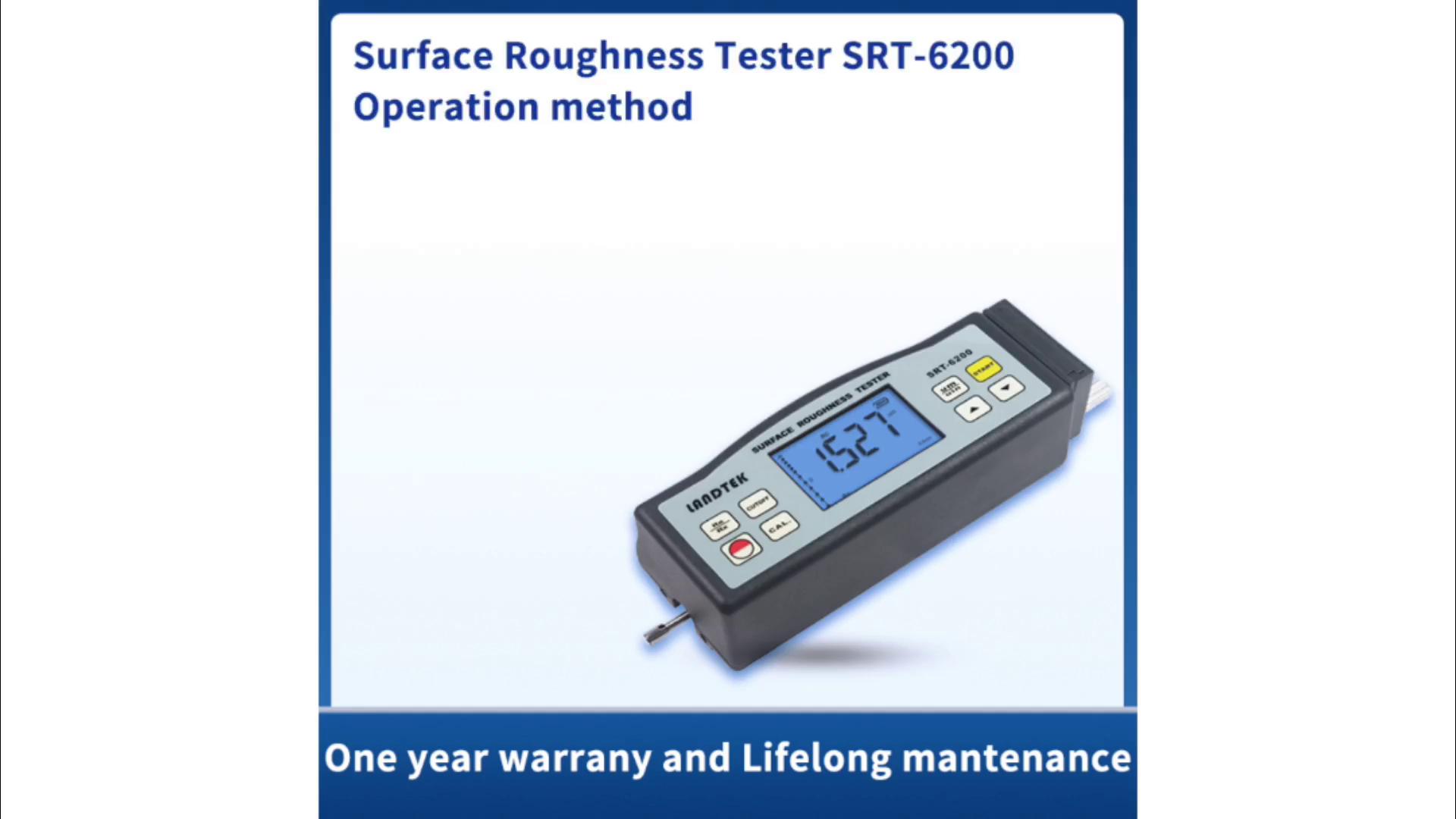

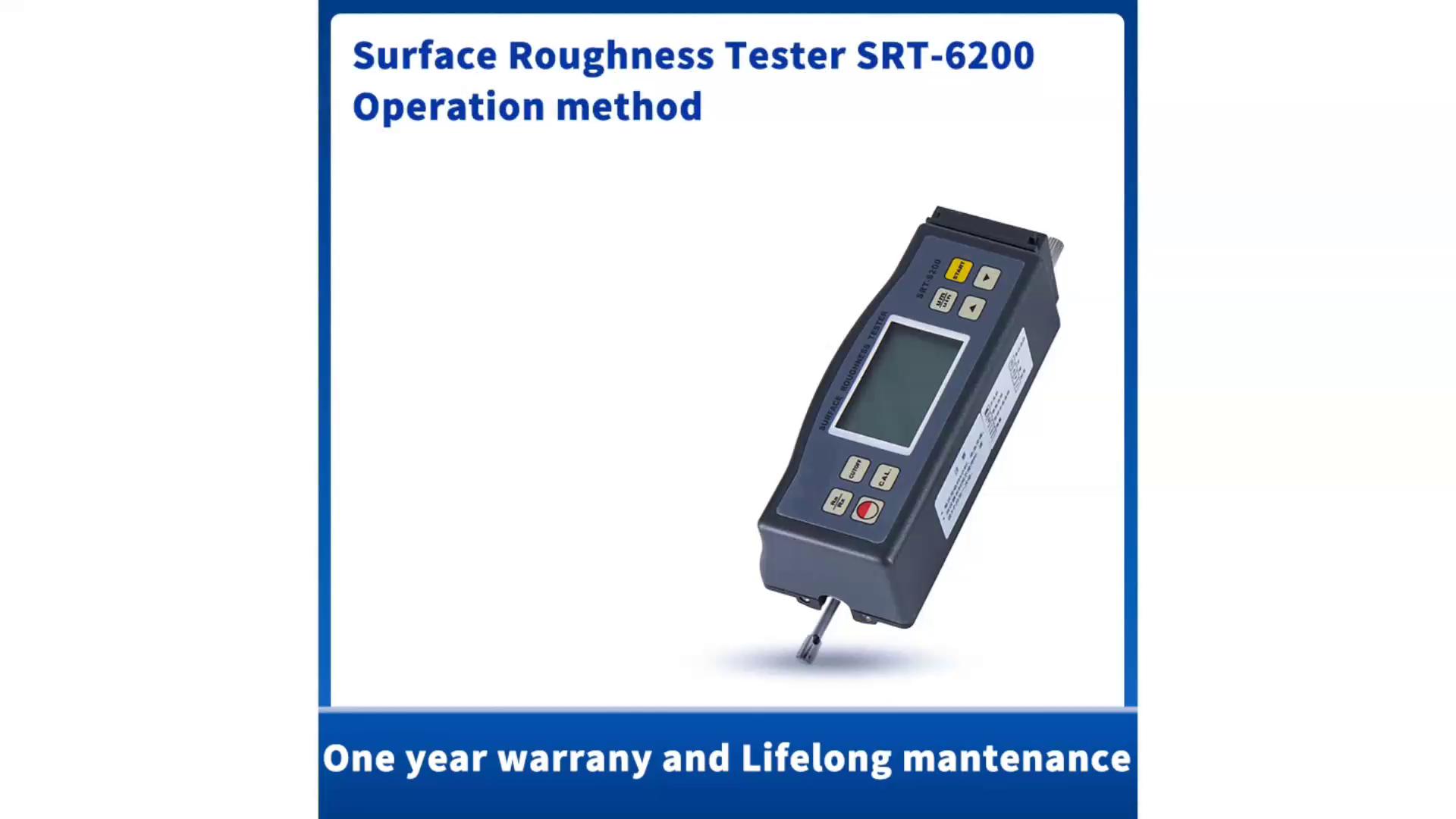

Surface Roughness Tester SRT-6200

Spec：	Widely used in production site to measure surface roughness of various machinery-processed parts.
Model：	SRT-6200

產品詳情

　Features

* Be compatible with four standards of ISO, DIN, ANSI and JIS.
* Multiple parameter measurement: Ra, Rz.
* Highly sophisticated inductance sensor.
* Built-in lithium ion rechargeable battery and control circuit with high capacity.
* Small in size, light in weight and easy to use.
* Manual or automatic shut down.
* Metric /Imperial Conversion.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

Principle　

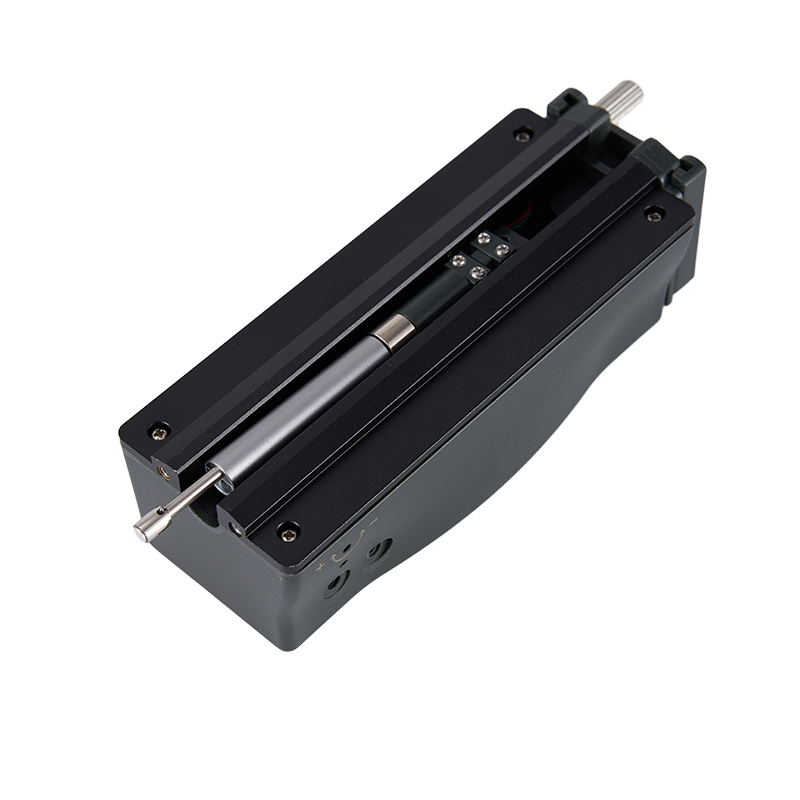

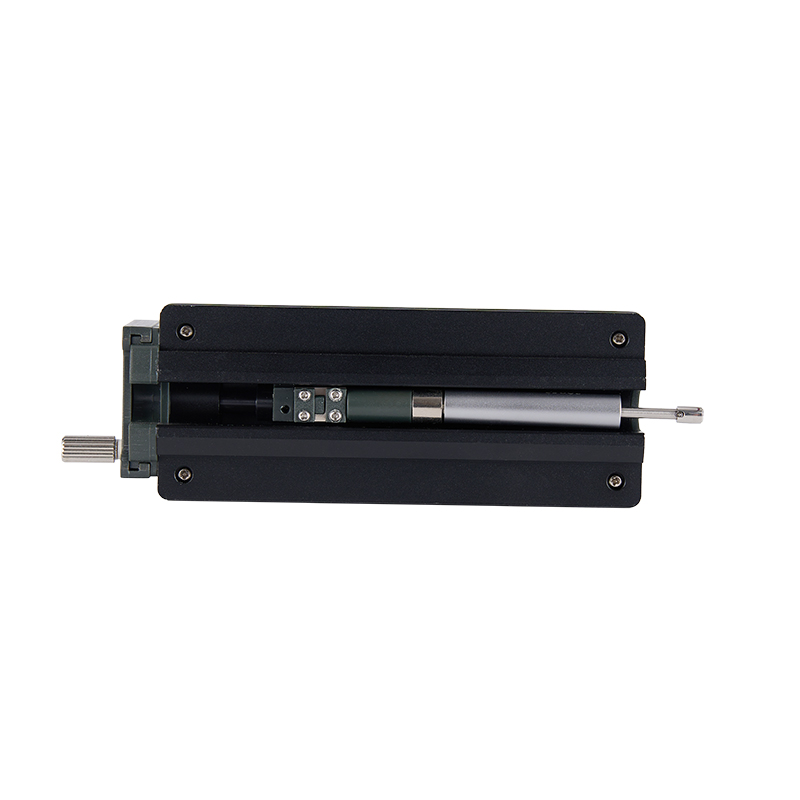

When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD.

Specifications　

Standards	GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1
Parameters	Ra,Rz
Measuring Range	Ra:0.05~10.00μm/1.000~400.0μinch Rz:0.020~100.0μm /0.780~4000μinch
Accuracy	<<±10%
Fluctuation of Display Value	<<6%
Resolution	0.001/0.01/0.1
Sensor	Radius of Probe Pin	10μm
	Material of Probe Pin	Diamond
	Measurement Force of Probe	16mN(1.6gf)
	Probe Angle	90o
	Vertical Radius of Guiding Head	48 mm
	Maximum Driving Stroke	17.5mm/0.7inch
	Cutoff length(l)	0.25mm,0.8mm,2.5mm
Driving Speed	Sampling	When Length=0.25mm,Vt=0.135 mm/s range≤1
		When Length=0.8mm,Vt=0.5mm/s range≤2.5
		When Length=2.5mm,Vt=1mm/s range=1
	Returning	Vt=1mm/s
Profile Digital Filter	RC,PC-RC,GAUSS,D-P
Evaluation Length	1L~5L Optional
Data Memorize	-------
Operating Conditions	Temp:0oC~50oC Humidity:<80%RH
Power Supply	Built -in Rechargeable Li-ion Battery
Dimensions	140mmx52mmx48 mm
Weight	420g

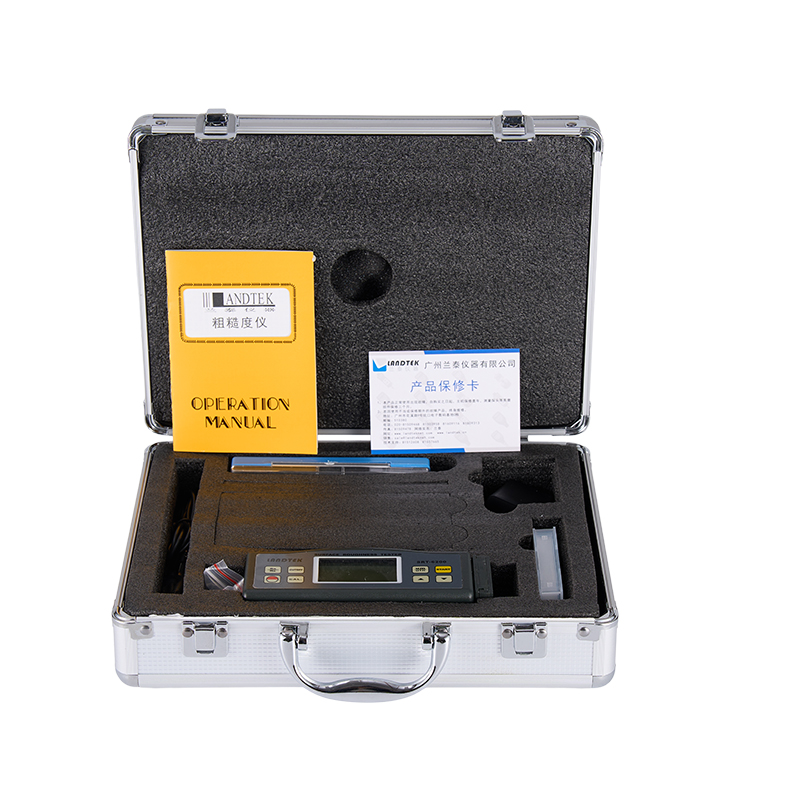

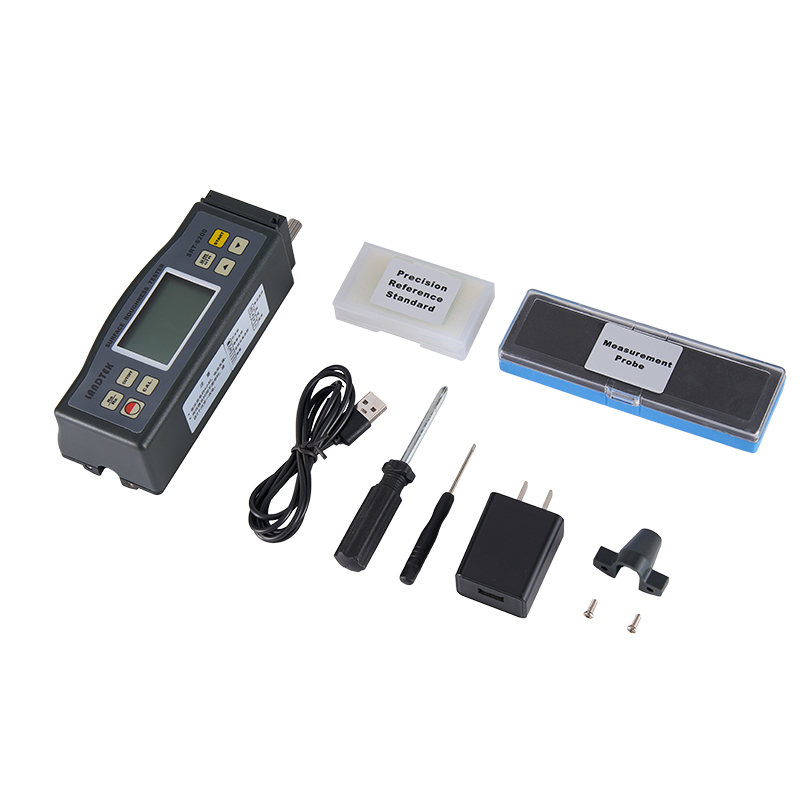

Standard Accessories	Main Unit
	Standard Sample Plate SSP-100
	Standard Sensor SSP-100
	Small Screwdriver
	Carrying Case ( B09 )
	Operation Manual
Optinal Accessories	RS-232C Cable with Software
	Bluetooth Adapter with Software
	Extension Rod SER-150
	Groove Stylus SRP-110
	Curvature Probe SRP-120
	Measurement Stand SRS-1

　Downloads

　SurfaceRoughnessTester_SRT-6200_Catalog

　SRT-6200_EN_Manual

　RS232Software

NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
