Provide high-tech measuring products and technical developments for instrument service providers

NDT and Photoelectric Measurements

產品詳情

Share to：

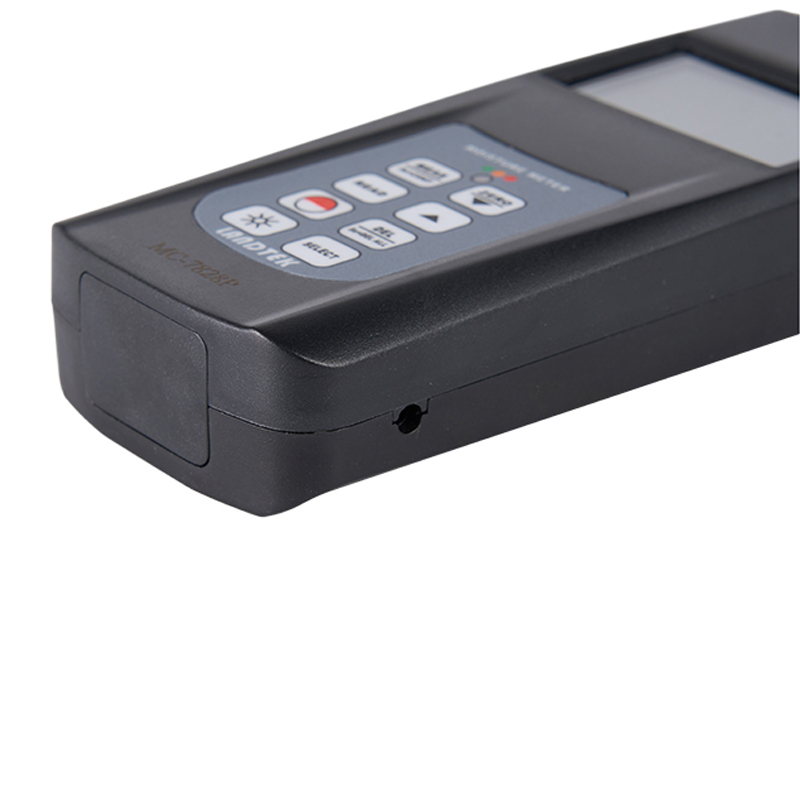

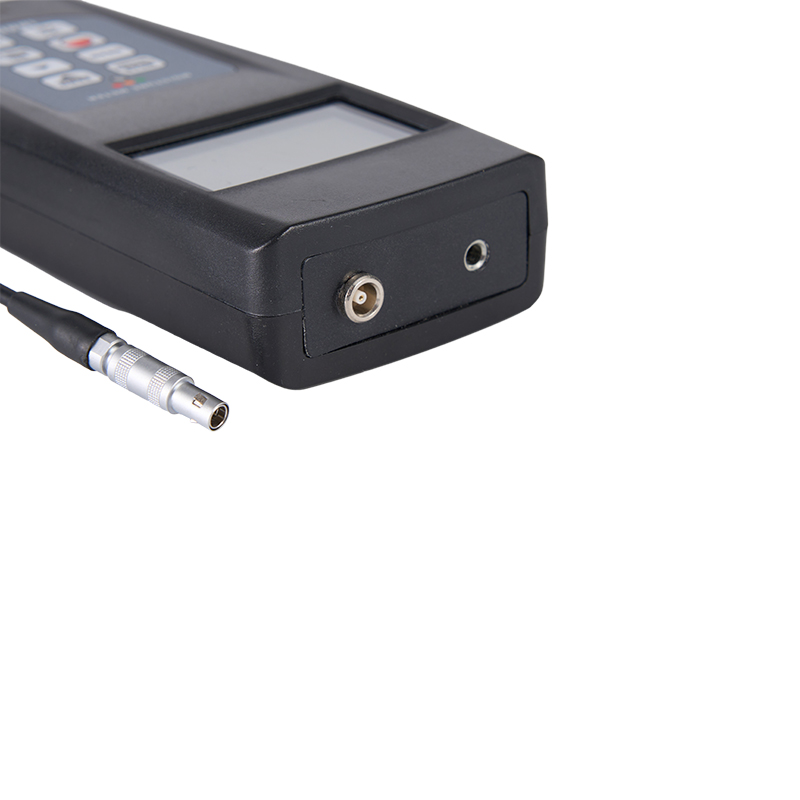

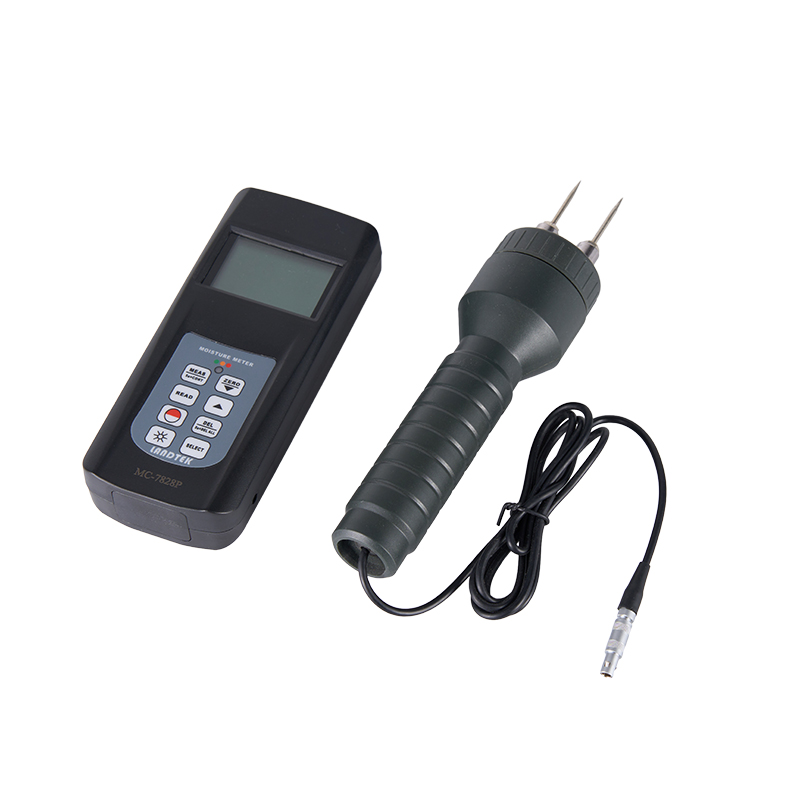

Moisture Meter MC-7828P

Spec：	Applicable of wood fiber materials, wooden articles, Chinese traditional medicine, tobacco, cotton paper, building, soil and other fibre materials.
Model：	MC-7828P

產品詳情

　Features

* Measure the moisture of sample by testing the conductivity between two pin probes.
* Two presentations, digital display and color coded LED indication.
* With storage and statistical functions. Can store 240 groups of measurements.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

　Pin Type Code

Code	Material
Cd00	Abies grandis, Acer macrophyllum, Maple, Acer saccharum, Pine(scots ), yellow Pine, Dalbergia latifolia, Dipterocarpus zeylanicus, Eucalyptus microcorys, Fraxinus excelsior, Cupressus spp, Pinus contorta,Pterygota bequaertii, Quercus robur, Pinus sylvestris, Balsa, Boxwood (maracaibo), red Gum(American), Gum spotted, Gurjun, Birch, Cypress (African) Karri, Oak(European), Oak(Japanese),black Poplar,Redwood (Baltic European), Rosewood(Indian),Pine(lodgepole),Tallowwood,Walnut (American), Kapur
Cd01	Araucaria bidwilli, Eucalyptus crebra, Eucalyptus saligna,Flindersia bray-leyana, Fraxinus Americana, Intsia bijuga, Podocarpus dacrydioides, Seq-uoia sempervirens, Pinus pinaster,Gum(southern),Mahogany(west Indian ), Douglas fir, Maple (queensland), red (light or dark) Meranti, white Mera-nti, Redwood(Californian), Walnut (new guinea), white Pine (new Zealand), Araucaria angustifolia
Cd02	Distemonanthus benthamianus, Jarrah, Endiandra palmerstonii, Erythro-phleum spp, Abies alba, Fagus sylvatica, Grevillea robusta, Juglans regia, Larix deciduas, Larix occidentalis, Podocarpus spicatus, Picea abies, Pin-us caribaea, Pinus nigra, Pinus palustris, Pinus ponderosa, Pinus radiata, Taxus baccata,Thuja plicata,Tsuga heterophylla,red Cedar(western), Che-stnut, Greenheart, Hemlock (western), Larch (European), Larch (Japanese ),Queensland walnut,red Seraya,Spruce,Silky oak(African),Silky oak(Aus-tralian), Pine (Corsican), Pine, radiata, Walnut(European), Walnut (queen-sland), Whitewood, Yew, Pine(ponderosa), Stringybark, Oak (tasmanese)
Cd03	Khaya senegalensis, Podocarpus totara, Quercus cerris, Ulmus American,Ulmus procera, Ulmus thomasii, Afzelia, Kauri( new Zealand), Lime, Elm(English), white Elm, Matai, Oak( Turkey), Pyinkado
Cd04	Acer pseudoplatanus, Carya glabra, Sycamore, Cassipourea elliotii, Dipte-rocarpus (keruing), Teak, Cordia alliodore, Larix occidentalis, Pterocarpus soyauxii, Hickory Padauk( African)
Cd05	Afrormosia elata, Diospyros virginiana, Gonystylus macrophyllum, Ptero-carpus indicus, Afrormosia, Amboyna, Basswood, Coachwood, Persimmon
Cd06	Calophyllum brasiliense, Guarea cedrata, white Guarea
Cd07	Abies procera,Agathis robusta,Betula pendula,Croton megalocarpus, Pru-nus avium, Agba, Birch( European), Cedar( west lndian), black Guarea, Kauri (queensland), Walnut( African), Cherry (european), Utile
Cd08	Chipboard, Paper
Cd09	Building, Wall, Concrete

　Specifications

Model		MC- 7825S	MC- 7825P	MC- 7825PS	MC- 7828P	MC- 7806
Sensor Type	Search	√	-----	√	-----	-----
	Pin	-----	√	√	√	√
Measurement Codes		20	10	30	10	Fixed
Range	Moisture	0%~70%	0%~80%			0%~50%
	Temperature	-----				-10oC~60oC
Accurary	Moisture	±(0.5%n+1%)				±(0.5%n+1.5%)
	Temperature	-----				±0.8oC
Resolution		0.1
Display		LCD
LED Indicator		Green LED represents a safe,air-dry state				-----
		Yellow LED represents a borderline state				-----
		Red LED represents a damp state				-----
Operating Conditions	Temperature	0oC~50oC
	Humidity	<90%RH				<85%RH

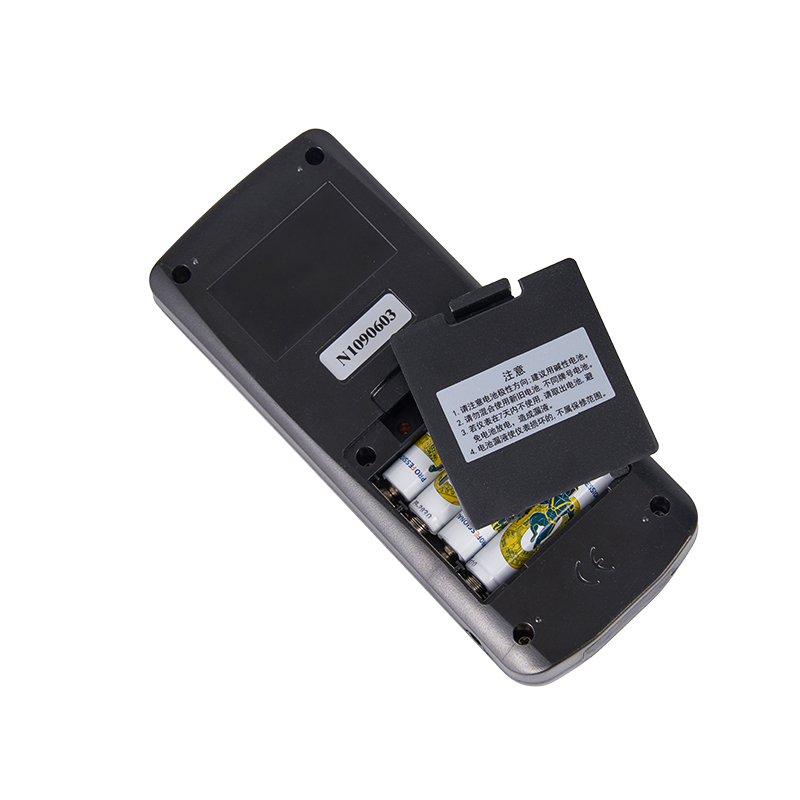

Power Supply		4x1.5V AAA(UM-4)Battery				4x1.5V AA(UM-3)
Dimensions	Main Unit	165mmx62mmx26 mm		165mmx62mmx26mm	150mmx65mmx30mm	178mmx68mmx39mm
	Probe	-----		71mmx65mmx22mm	192mmx44mmx44mm	170mmx44mmx25mm
Weight		119g		175g	324g	334g

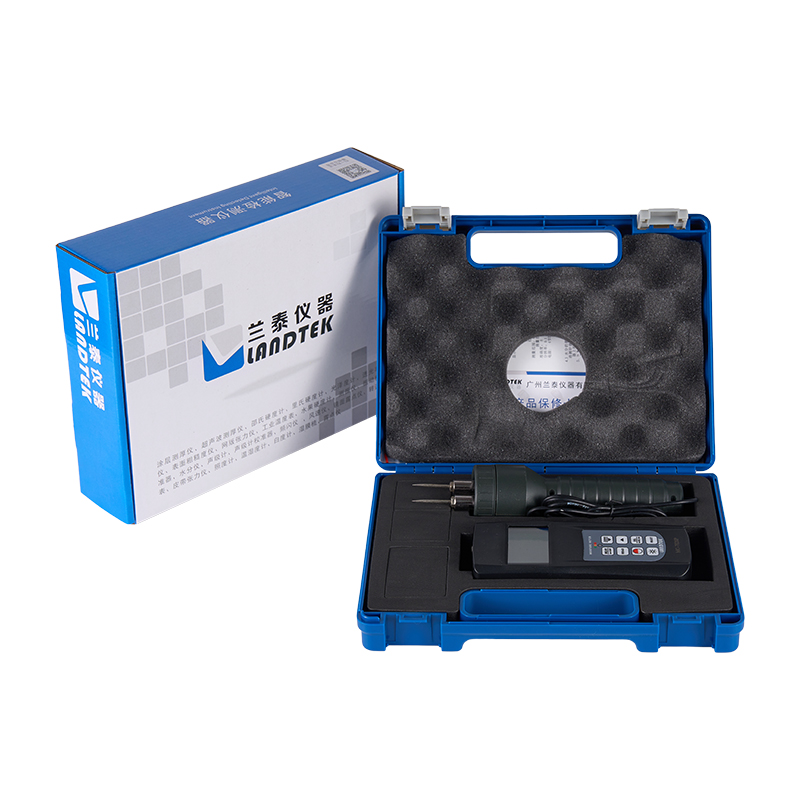

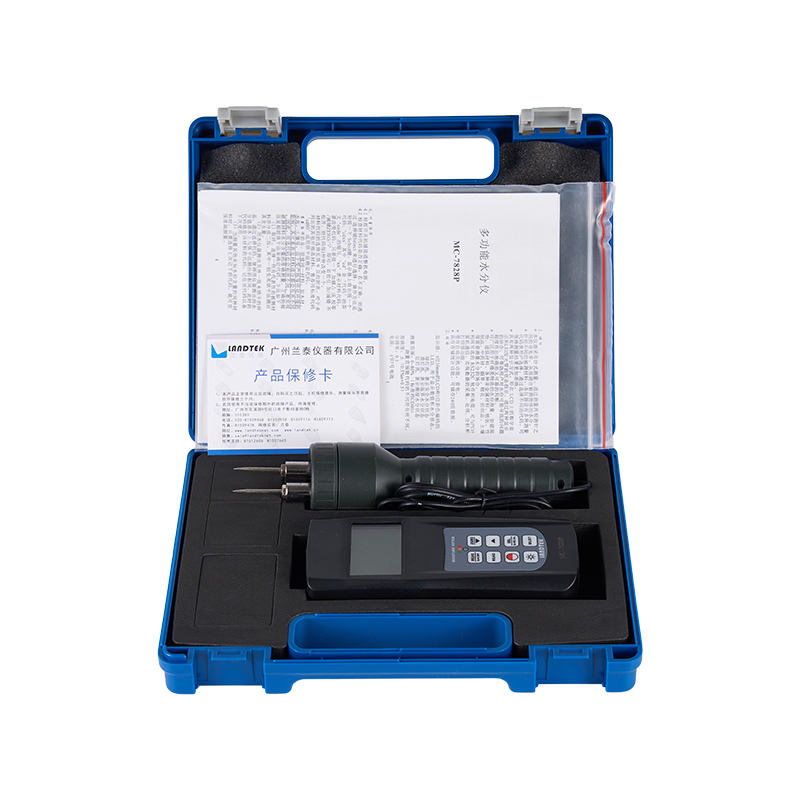

Standard Accessories		Main Unit,Operation Manual
		-----	-----	Probe(P25)	Probe(P28)	Probe(P06)
		Carrying Case(B04)				Carrying Case(B02)
		-----	Measuring Hammer			-----
Optional Accessories		RS-232C Data Cable with Software,Bluetooth Data Adapter with Software				-----

　Probe Specifications

　Downloads

　MoistureMeter_MC-7828P_Catalog

　MC-7828P_EN_Manual

　RS232Software

NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
