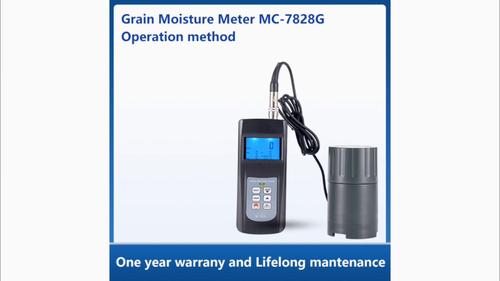

Grain Moisture Meter MC-7828G
Spec：
Used for fast and accurate measurement of moisture in the process of allotment, acquisition, storage, machining of packed grains, feedstuff, powder.
Model：
MC-7828G
產品詳情
Features
* Able to measure grains up to 36 species. * The cup type measurement causes small error. * Wide measuring range. * With storage and statistical functions. Can store 240 groups of measurements. * Two presentations, digital display and color coded LED indication. * Use the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement. It can obtain automatically the temperature corrected moisture value. * Use USB/RS-232 data output to connect with PC. * Provide Bluetooth data output choice.
Code
Grain
Range
Cd01
Wheet / Rye ( Whole )
7~31
Cd02
Wheet / Rye ( Ground )
7~29
Cd03
Paddy ( Whole )
7~29
Cd04
Paddy ( Ground )
7~26
Cd05
Rice ( Milled )
7~29
Cd06
Semolia
7~25
Cd07
Maize / Corn ( Whole )
7~27
Cd08
Maize / Corn ( Ground )
7~26
Cd09
Soya Beans ( Whole )
6~28
Cd10
Soya Beans ( Ground )
5~22
Cd11
Barley Oats ( Whole )
7~34
Cd12
Barley Oats ( Ground )
7~29
Cd13
Coffe ( Whole )
7~31
Cd14
Coffee ( Ground )
7~26
Cd15
Coffee Green ( Ground )
7~27
Cd16
Cocoa Beans ( Whole )
4~13
Cd17
Linseed ( Whole )
6~21
Cd18
Lentils ( Ground / Whole )
7~21
Cd19
Oilseed Rape ( Ground )
5~26
Cd20
Mustard Seed ( Whole )
7~21
Cd21
Sorghum / Milo ( Whole )
7~28
Cd22
Sorghum / Milo ( Ground )
7~26
Cd23
Sunflower Seed ( Whole )
5~25
Cd24
Sugarbeet Seed ( Whole )
6~20
Cd25
Flax ( Whole )
5~21
Cd26
Peas ( Progreta ) ( Ground )
7~27
Cd27
Peas ( Ground )
7~30
Cd28
Ground Nuts Hulled ( Whole )
5~13
Cd29
Grass Seed / Rye Grass ( Whole )
7~28
Cd30
Grass Seed / Cocksfoot ( Whole )
6~23
Cd31
Four / Soft Wheat
7~29
Cd32
Clover / White Seed ( Whole )
6~24
Cd33
Clover / Red lucerne Seed ( Whole )
6~22
Cd34
Buckwheat ( Ground )
7~29
Cd35
Brassicas / Brussels Sprout ( Whole/Ground )
5~15
Cd36
Beans / Tic /Winter ( Ground )
7~25
Model
MC-7828G
MC-7825G
MC-7821
Grains
36 Kinds
36 Kinds
4 Kinds
Display
LCD
LED Indicator
Green LED Represents a Safe,Air-dry State
-----
Yellow LED Represents a Borderline State
-----
Red LED Represents a Damp State
-----
Range
Moisture
7~30%
7~30%
8~20%
Tempreature
-----
-----
-10~55oC
Resolution
0.1
Battery Indicator
Low Battery Indicator
Accuracy
Moisture
±(0.5%n+1)
±0.6%/±0.8%/±1%
Tempreature
-----
±0.8oC
Operatin
Conditions
Temperature
0~50oC
0~50oC
Humidity
<90%RH
<80%RH

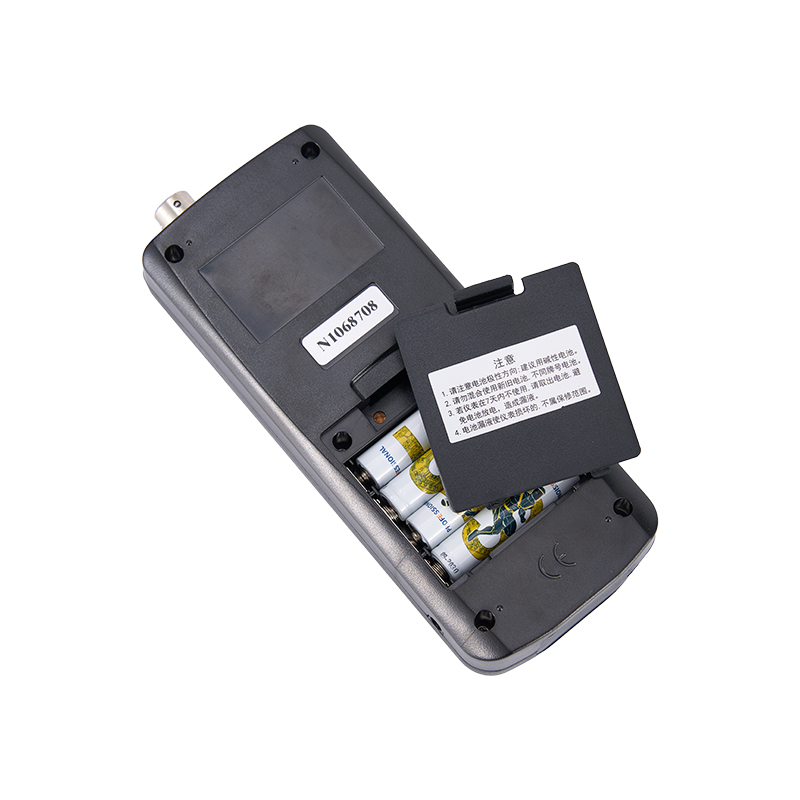

Power Supply
4x1.5V AAA Size(UM-4)Battery
4x1.5V AA Size
(UM-3)
Battery
Dimensions
Main Unit
150x65x30mm
165x62x26mm
178x68x39mm
Sensor
115x66x66mm
368x44x25mm
368x44x26mm
Weight(Not Including Batteries)
520g
320g
420g

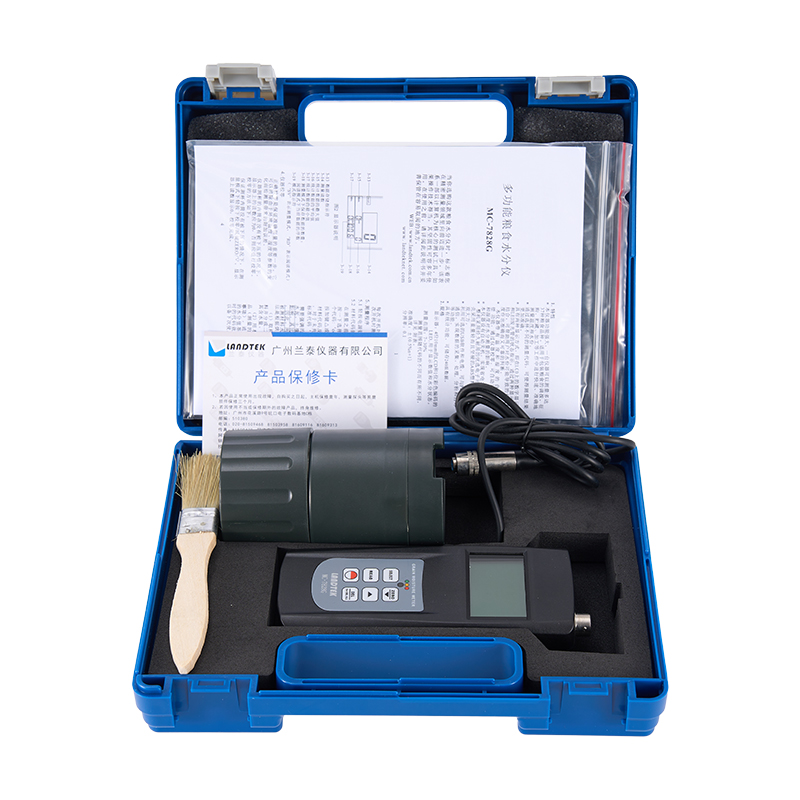

Standard
Accessories
Main Unit
√
Probe
-----
√
√
Cup
√
-----
-----
Carrying Case
B04
B04
B01
Manual
√
Optional Accessories
USB Data Cable with Software,Bluetooth Data Adapter with Software
NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
