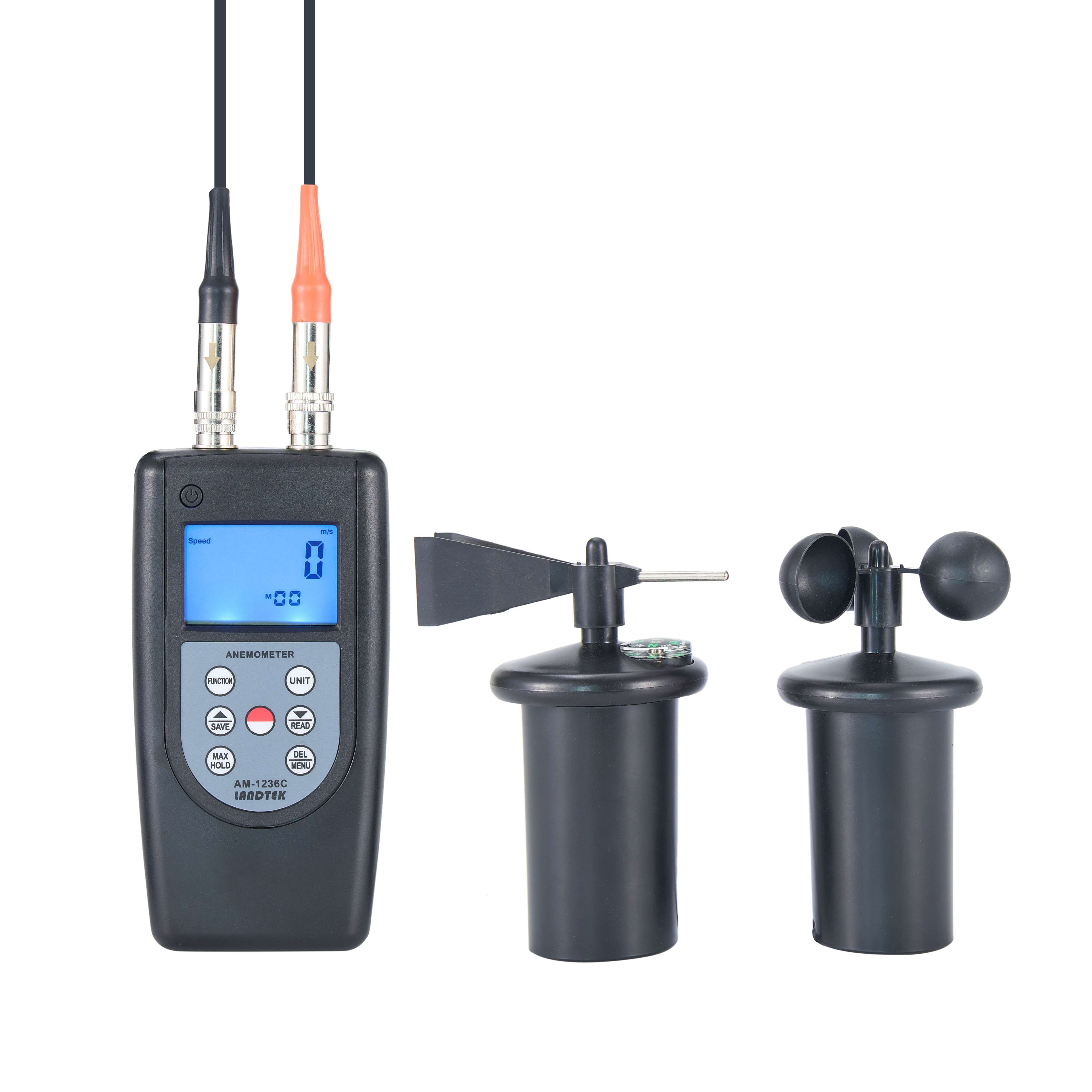

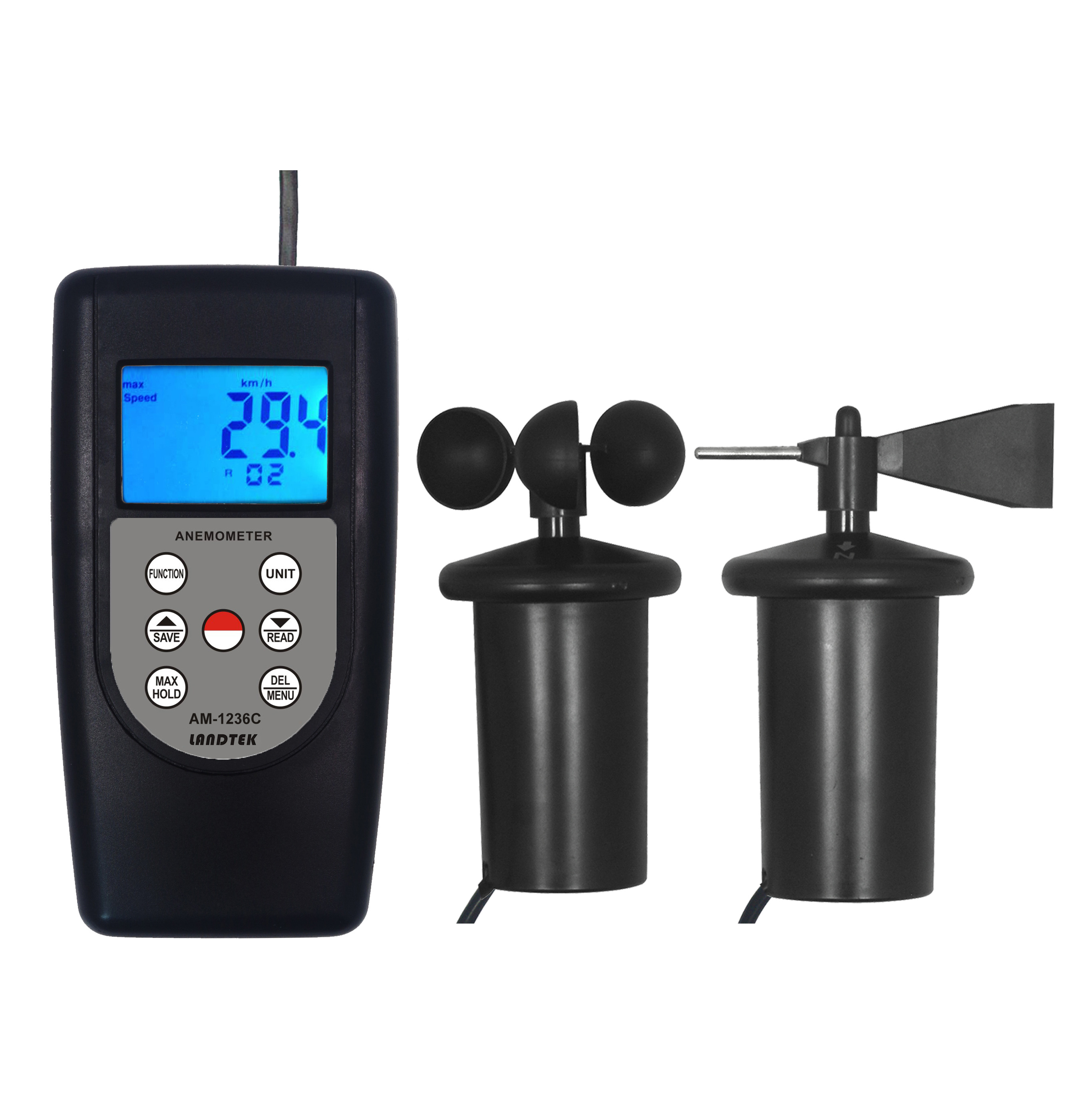

Anemometer AM-1236C

Spec：	Wide applications: use to check air conditioning & heating systems , measure air velocity, wind speed, direction, temperature, etc.
Model：	AM-1236C

產品詳情

　Features

* Wide applications: use to check air conditioning & heating systems , measure air velocity, wind speed, direction, temperature, etc.
* Multifunctional. the measurement unit can be selected according to different requirements.
* Maximum value data hold function.
* DATA HOLD function for storing 24 groups of datas.
* Low-friction ball-bearing design allows free vane movement.
* Separate type design, convenient to measure.
* Automatic Power off, 0-9 minutes set by users.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

Specifications　

Model		AM-1236V	AM-1236C
Display		LCD
Measurement Units	Air Velocity	m/s,km/h,ft/min,knots
	Air Flow	CMM(m3/min),CFM(ft3/min)
	Beaufort Scale	Force
	Wave Height	m
	Direction	------	o from The North Diection
	Temoerature	oC,oF
Data Hold		Maximum Value
Data Memorized		24 Groups
Sampling Rate		Reading Per Second Approx

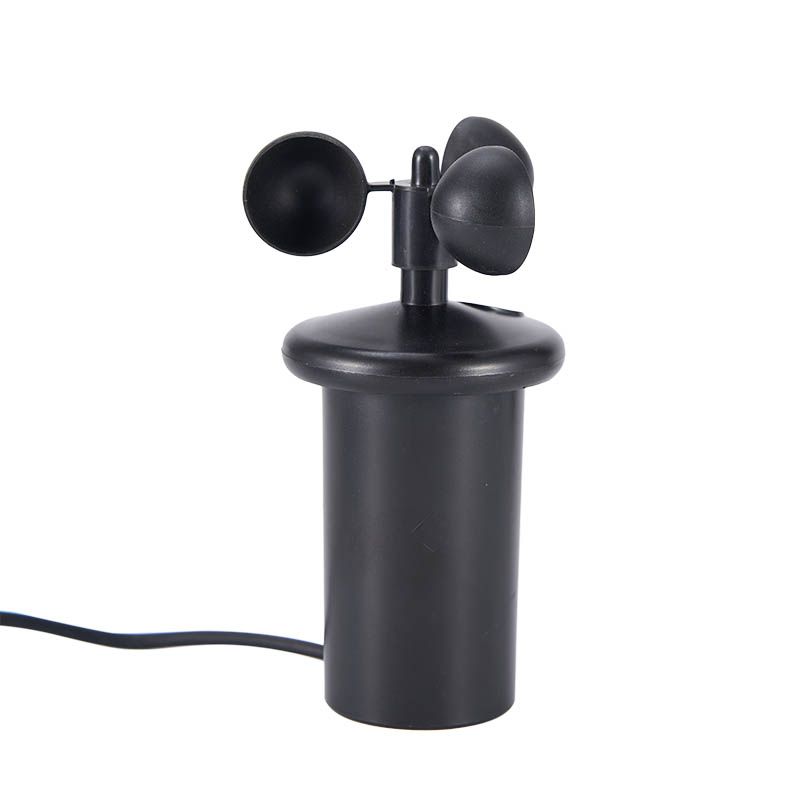

Sensors	Air Velocity/Flow Sensor	Vane Arms with Low-friction Ball Bearing	3-impeller

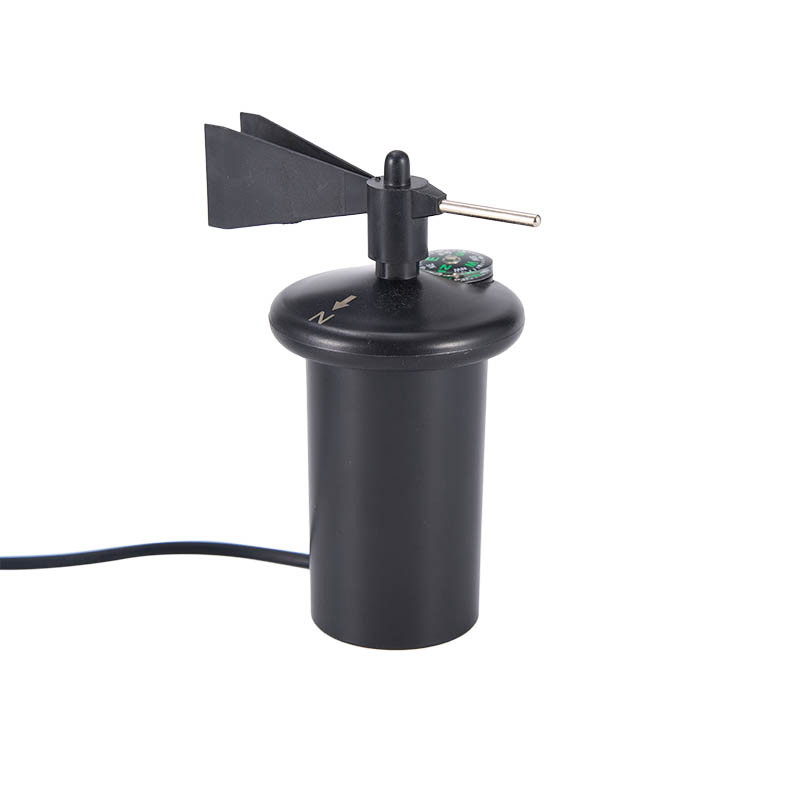

	Direction Probe	------	Low Friction Probe
	Temperature Sensor	Precision Thermistor
Automatic Power Off		0~9 Minutes Set by Users
Operating Conditions	Temperature	0oC~50oC(32oF~122oF)
	Humidity	<80%RH
Power Supply		4x1.5V AAA(UM-4)Battery
Dimensions	Main Unit	156mmx67mmx28 mm(6.1x2.6x1.1 inch)
	Sensor	Sensor Head:72mm Diameter	Velocity Sensor:65mmx65mmx115mm
		------
Weight (Including Batteries)		260g

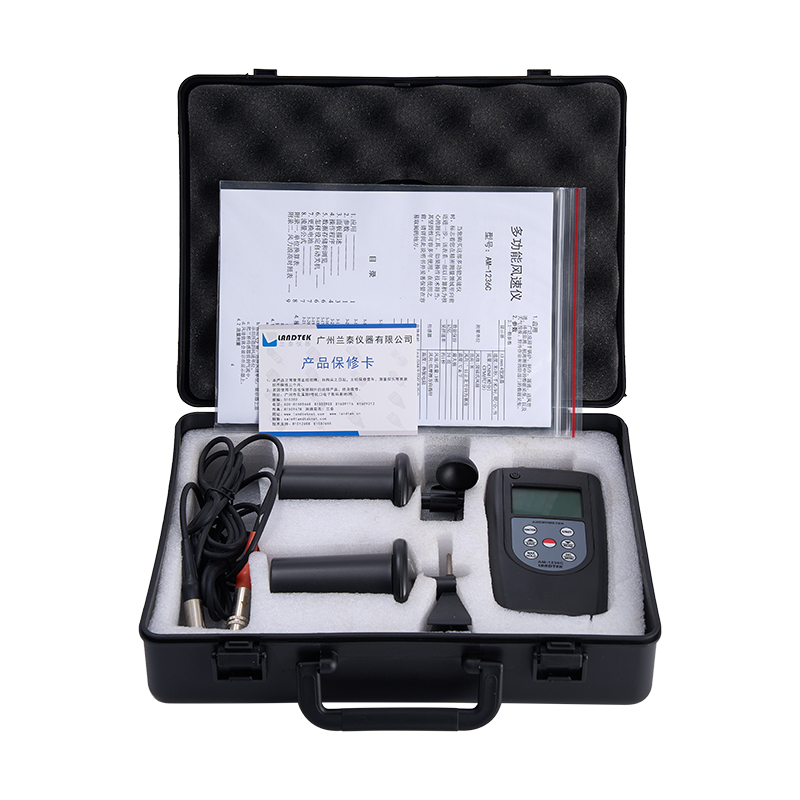

Standard Accessories		Main Unit
		Carrying Case(B04)	Carrying Case(B10)
		Operation Manual
		Sensor	Velocity Sensor
		------	Direction Sensor
Optional Accessories		RS-232C Data Cable with Software
		Bluetooth Data Adapter with Software

Test Range Specifications

		Range	Resolution	Accuracy
Air Velocity	m/s(meters/sec)	0.4~45.0	0.1	±(2%n+0.5 m/s)
	km/h(kilo-meters/hour)	1.4~162.0	0.1	±(2%n+0.5 km/h)
	Ft/min(feet/minute)	80~8860	0.1	±(2%n+0.5 ft/min)
	Knots(nautical MPH)	0.8~88.0	0.1	±(2%n+0.5 nots)
Air Flow	CMM(cubic meters/min)	0~9999	0.001~1	±(2%n+0.5 m3/min)
Air Flow	CFM(cubic ft/min)	0~9999	0.001~1	±(2%n+0.5 ft3/min)
Beaufort Scale		0~12	0.1	±0.5
Direction ( Only AM - 4836C )		0~360°	22.5°	±22.5°
Wave Height ( Meter )		0~14	0.1	±0.1
Air Temperature		32~140°F	0.1°F	0.9°F
Air Temperature		0~60°C	0.1°C	0.5°C

　Downloads

Anemometer_AM-1236C_Catalog

AM-1236C_EN_Manual

　RS232Software

NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
