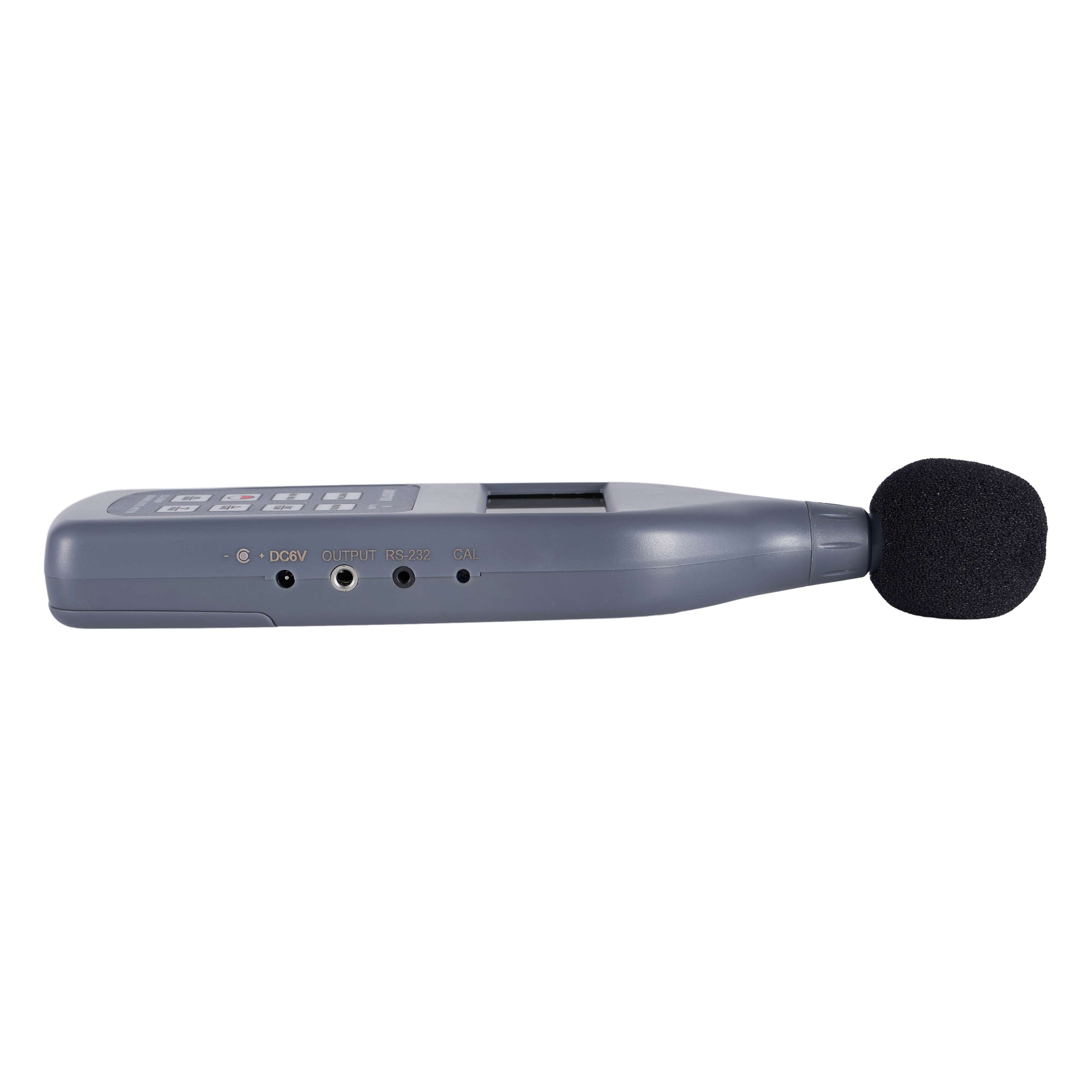

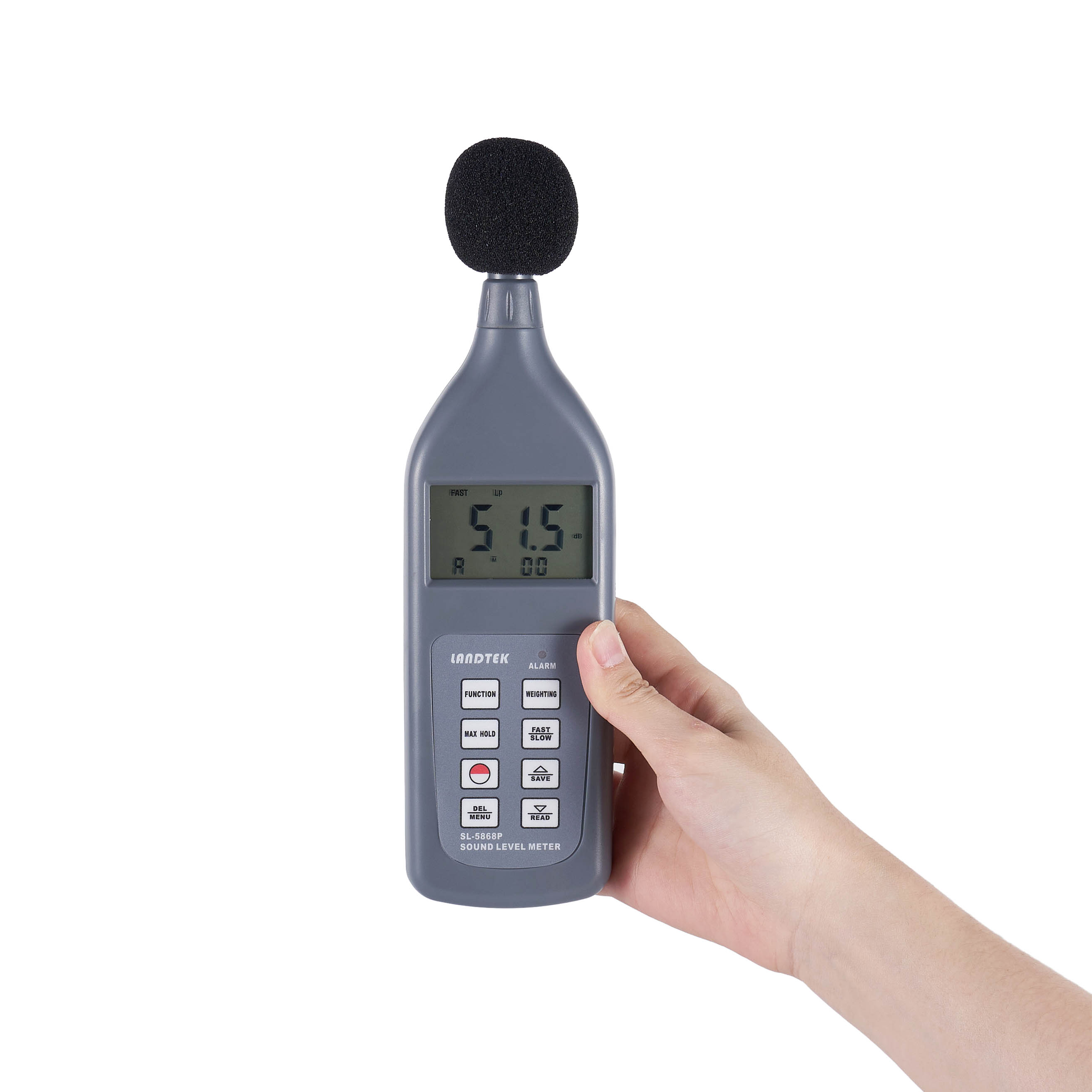

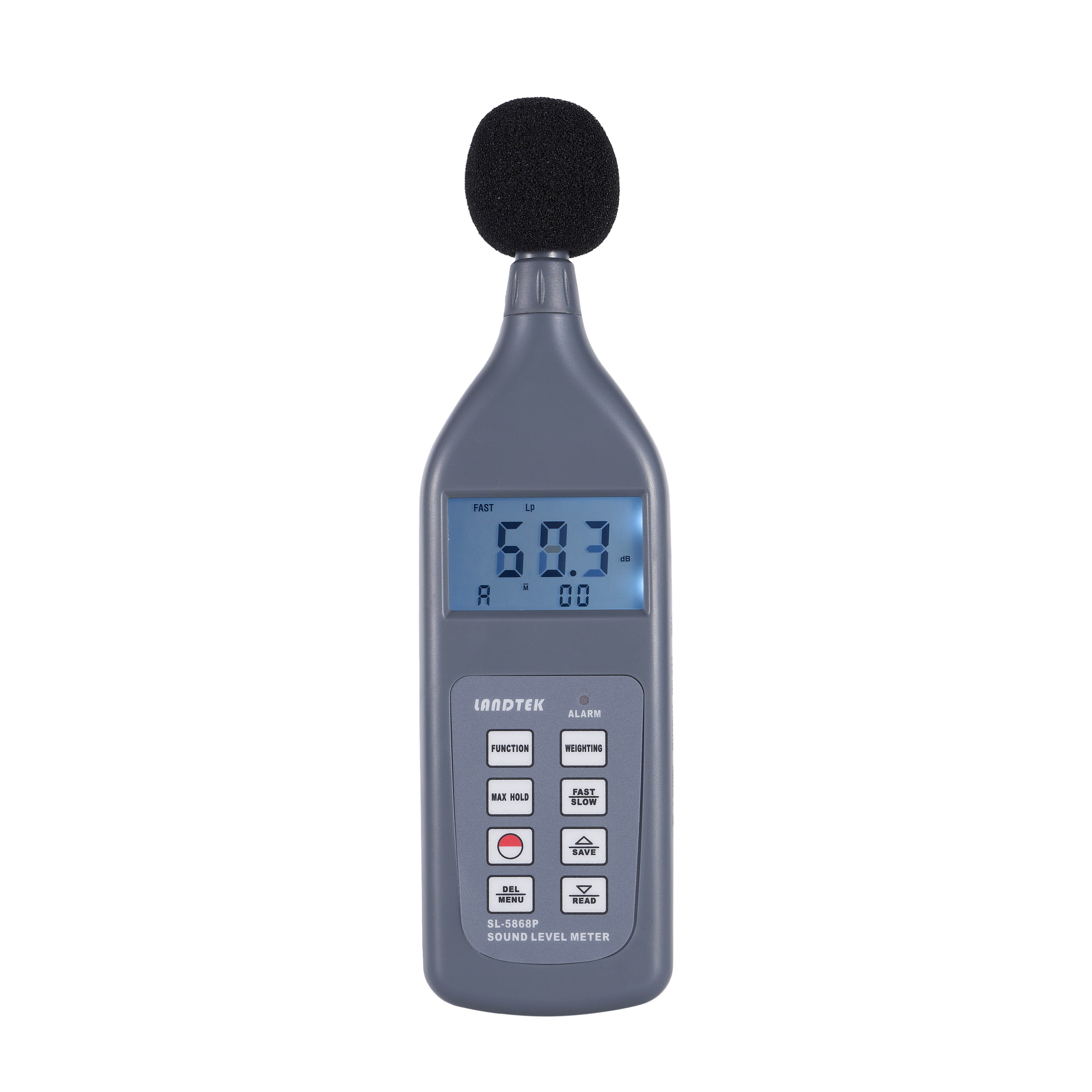

Sound Level Meter SL-5868P

Spec：	Widely used to test the sound level of environment, machinery, vehicle, ship and other noise. For industrial environmental protection, construction, health care, teaching and research department.
Model：	SL-5868P

產品詳情

　Features

* Permits choice “A”, “C” , “F” weighting and “Fast” / “Slow” response times.
* Offers 4 measurement parameters: Lp (sound level); Leq (Equivalent Continuous A Sound Level ); Lmax ( Maximum Sound Level) and LN (Percent of all readings over alarm value set ).
* DC output :1 0 m V / d B.
* Can memorize 30 groups of measurement results and measuring conditions.
* Auto range selection and digital display with no guessing errors.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

Specifications

Standards	IEC 651.2, ANSI 1.4.2
Paraments Measured	Lp-Sound Level
	Leq-Equivalent Continuous A Sound Level
	Lmax-Maximum Sound Level
	LN-Percent of All Reading Over Alarm Value Set
Testing Range	Lp	30dB~130dB(A Weighting)
		35dB~130dB(C Weighting)
		40dB~130dB(F Weighting)
	Leq	30dB~130dB(10Seconds,1Min,5Min,10Min,15Min,30Min,1Hour,8Hours,24Hours)
	LN	0%~100%
Resolution	0.1dB
Accuracy	1dB
Frequency Weighting	‘A’/’C’/’F’*(Flat)
Time Weighting	Fast (125 ms)/Slow (1 Second)

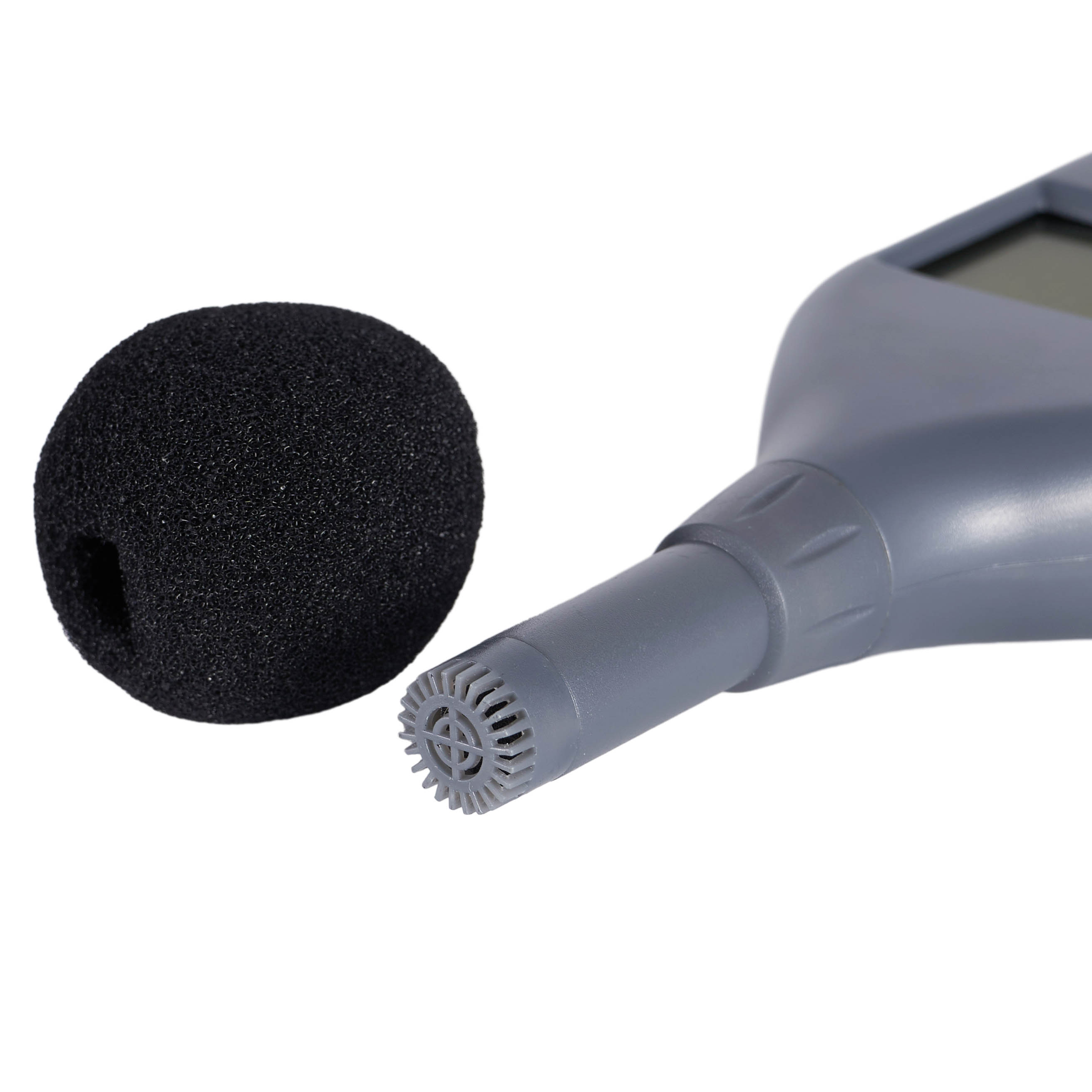

Microphone	1/2 Inch Electret Condenser Type
Memory	30 Group with Measuring Conditions
Calibration Signal Built in	94dB at 1k Hz(sinusoidal)
Frequency Range	20Hz~8kHz
Alarm Value Set	30dB~130 dB
Alarm Output	LED Optional Relay Contact(NC)
Indicator	Low Battery Indicator

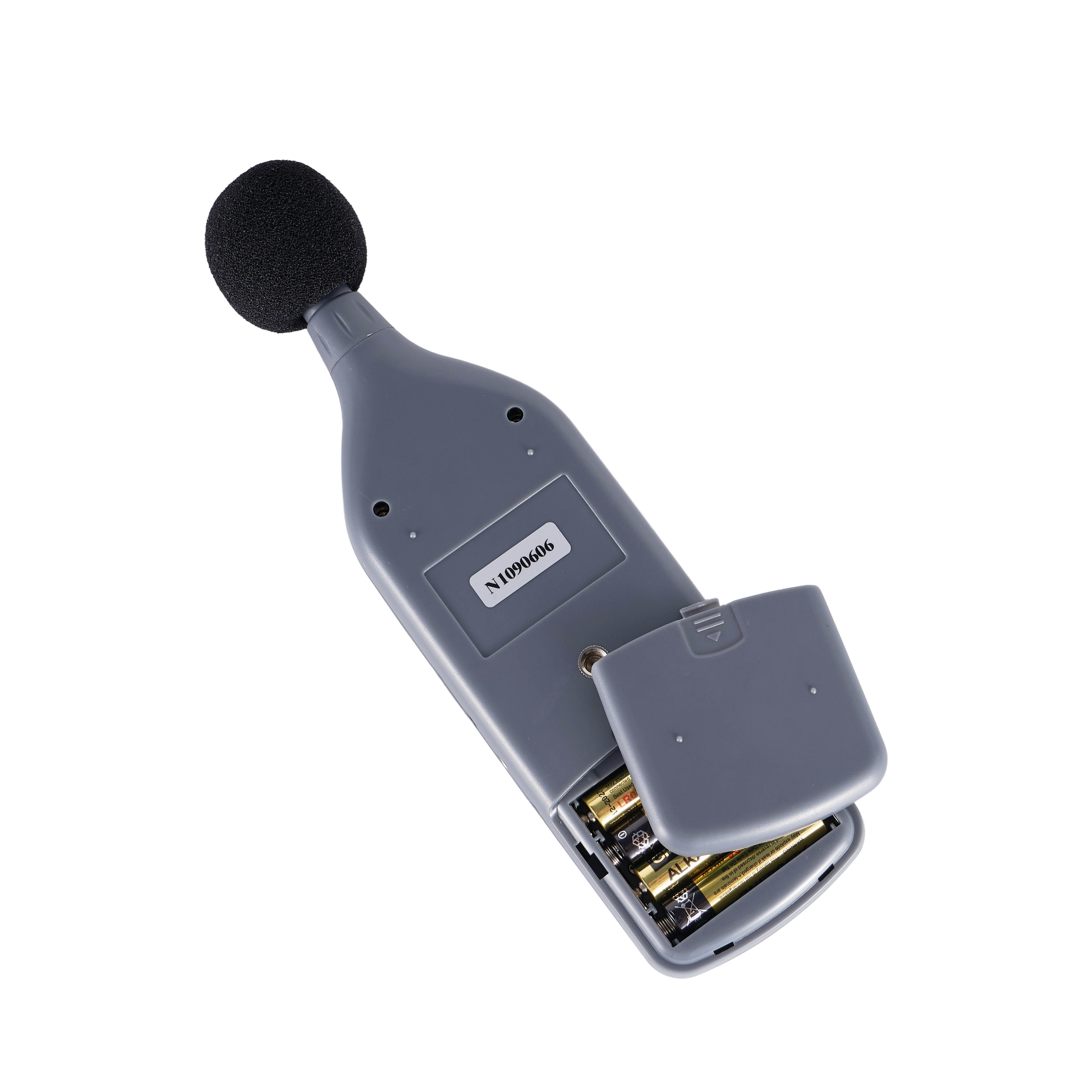

Power Supply	4x1.5V AAA Size (UM-4)Battery
External DC Power Supply	5V,DC,100mA
Dimensions	236mmx63mmx26 mm
Weight	170 g

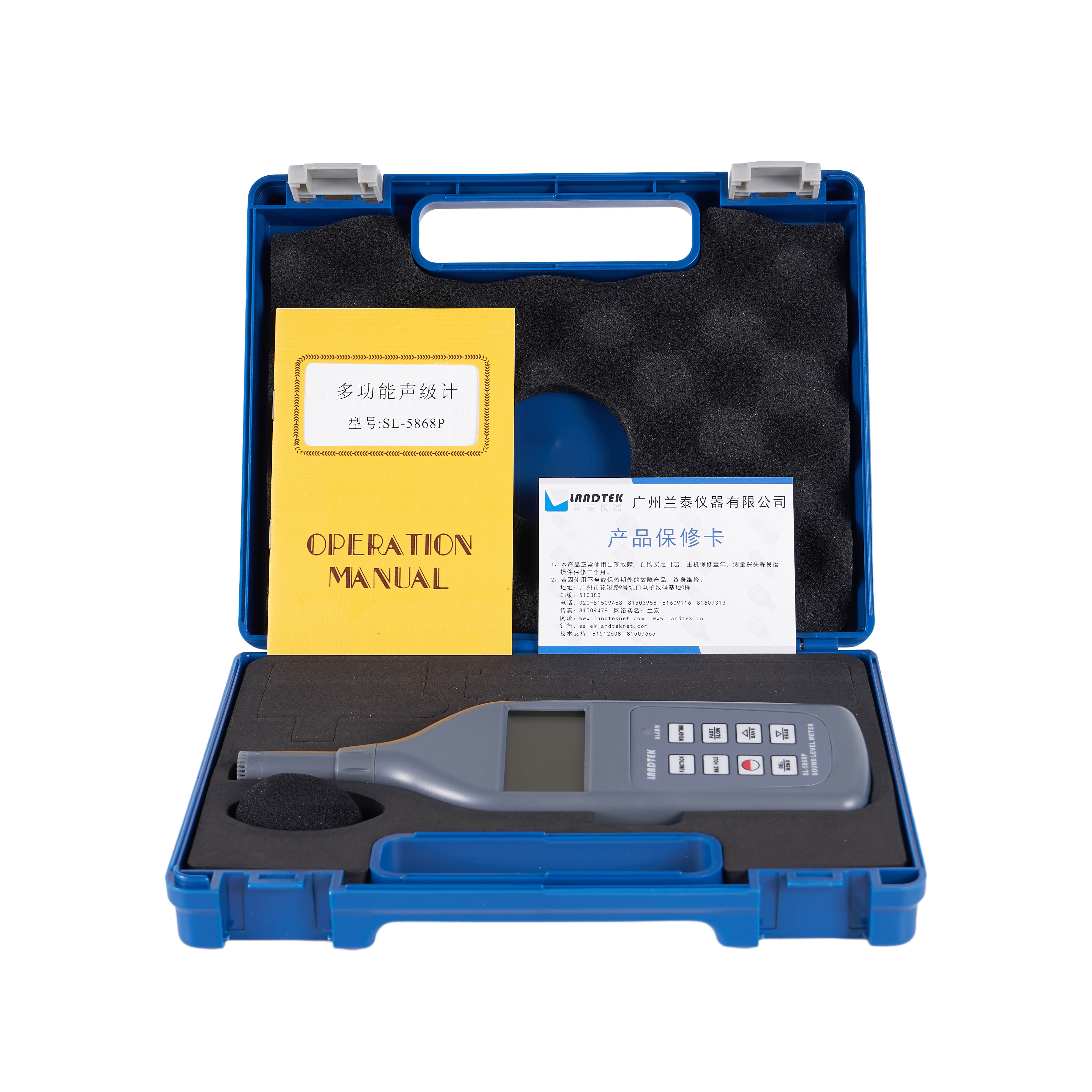

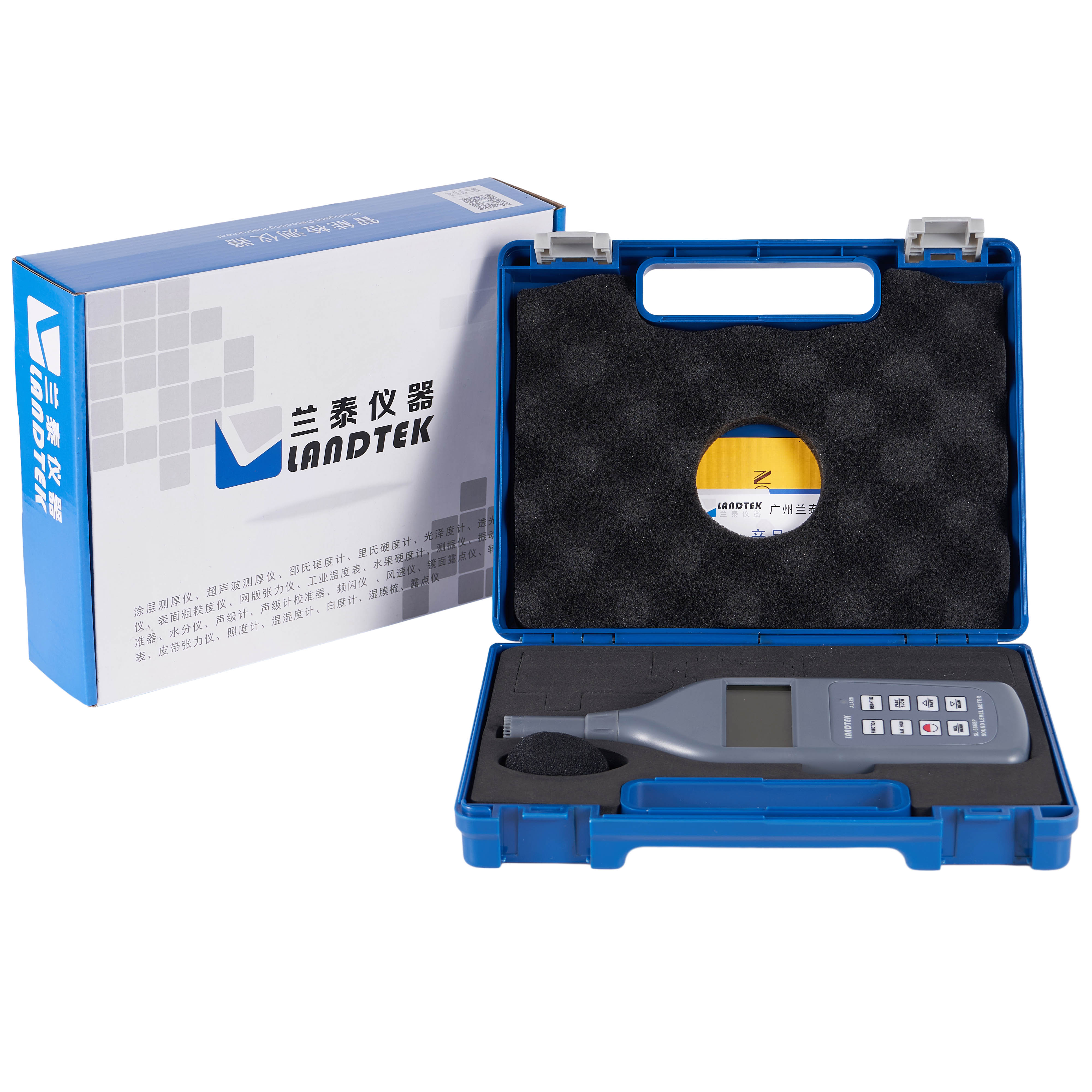

Accessories

Standard Accessories	Main Unit
	Windscreen
	Carrying Case (B04)
	Operation Manual
Optional Accessories	ND9 Sound Level Meter Calibrator
	RS-232C Data with Software
	Bluetooth Data Adapter with Software

　Downloads

SoundLevelMeter_SL-5868P_Catalog

SL-5868P_EN_Manual

　RS232Software

NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
