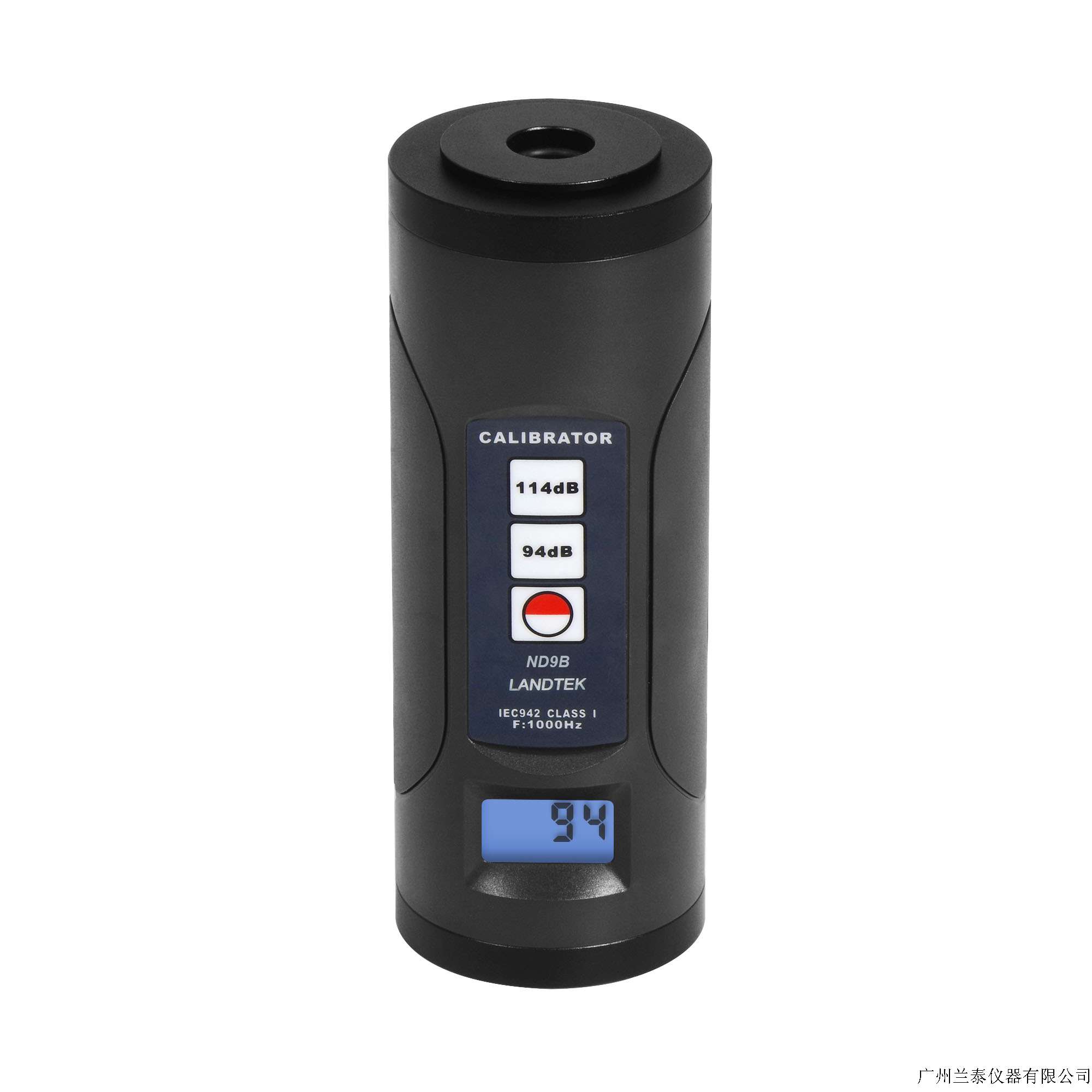

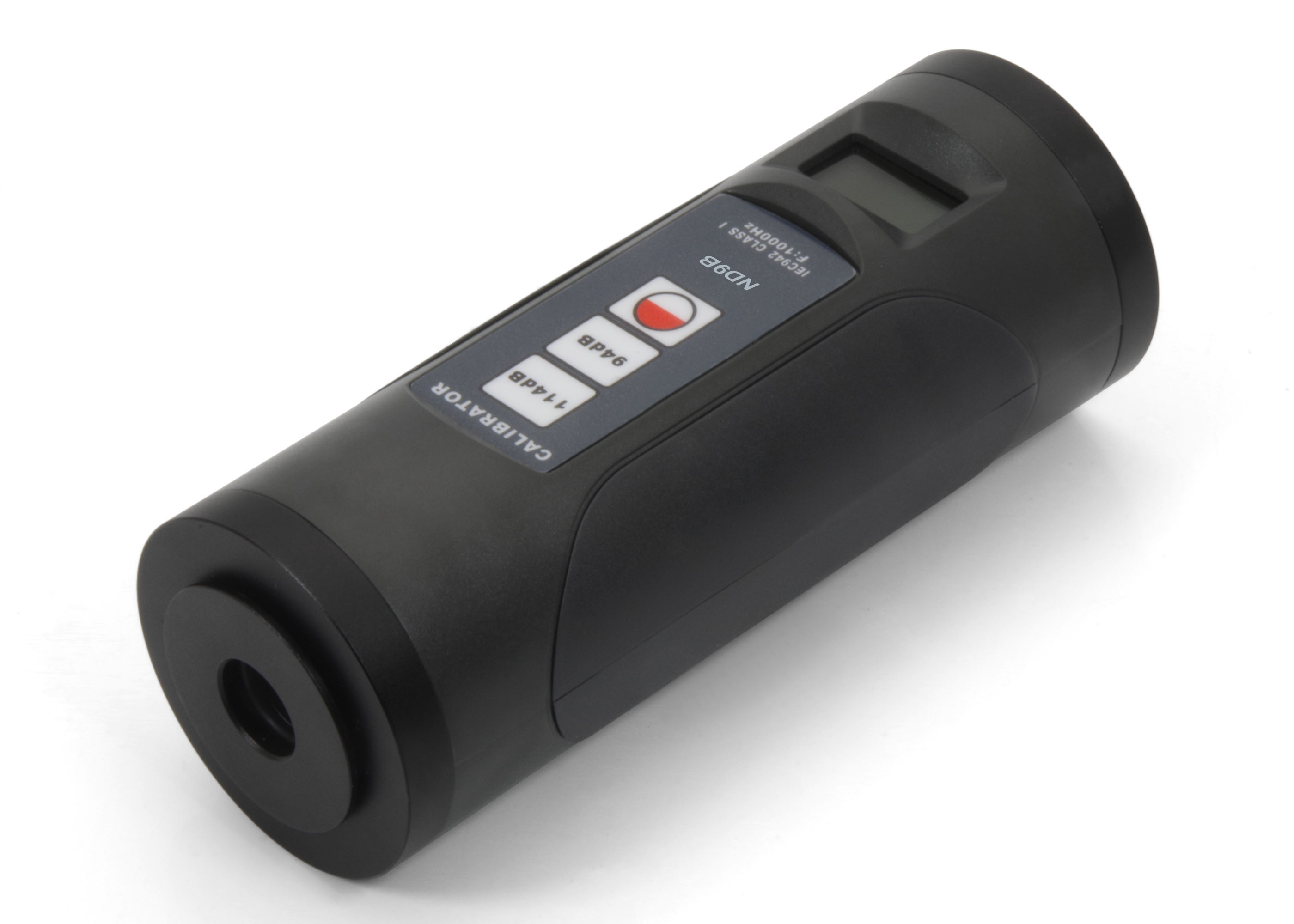

Sound Level Calibrator ND9B
Spec: For quick and easy calibration of sound  level meters and sound measuring systems.
Model: ND9B
產(chǎn)品詳情

 Features

* Handy sound source for quick and easy calibration of sound   level meters and sound measuring systems.
* The Calibrator employs solid state integrated circuitry that provides accurate and stable performance.
* Sensitivity calibration of microphones.
* Suitable for field and laboratory use.



Model
ND9A
ND9B
Standards
GB/T15173,ANSI S1.40,IEC942
Sound Pressure Level
94 dB
94 dB
114 dB
114 dB
Accuracy
0.5 dB
0.3 dB
Frequency
1000Hz

Cailbration Of
Microphones
1’’,1/2’’
Power Supply
1x9V 6F22 Battery
Dimensions
142x47x47 mm
Weight
275g(Including Battery)



Standard Accessories
Main Unit
Windscreen
Carrying Case (B04)
Operation Manual

 Downloads

  SoundLevelCalibrator_ND9B_Catalog

  ND9B_EN_EN_Manual

  RS232Software

NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
