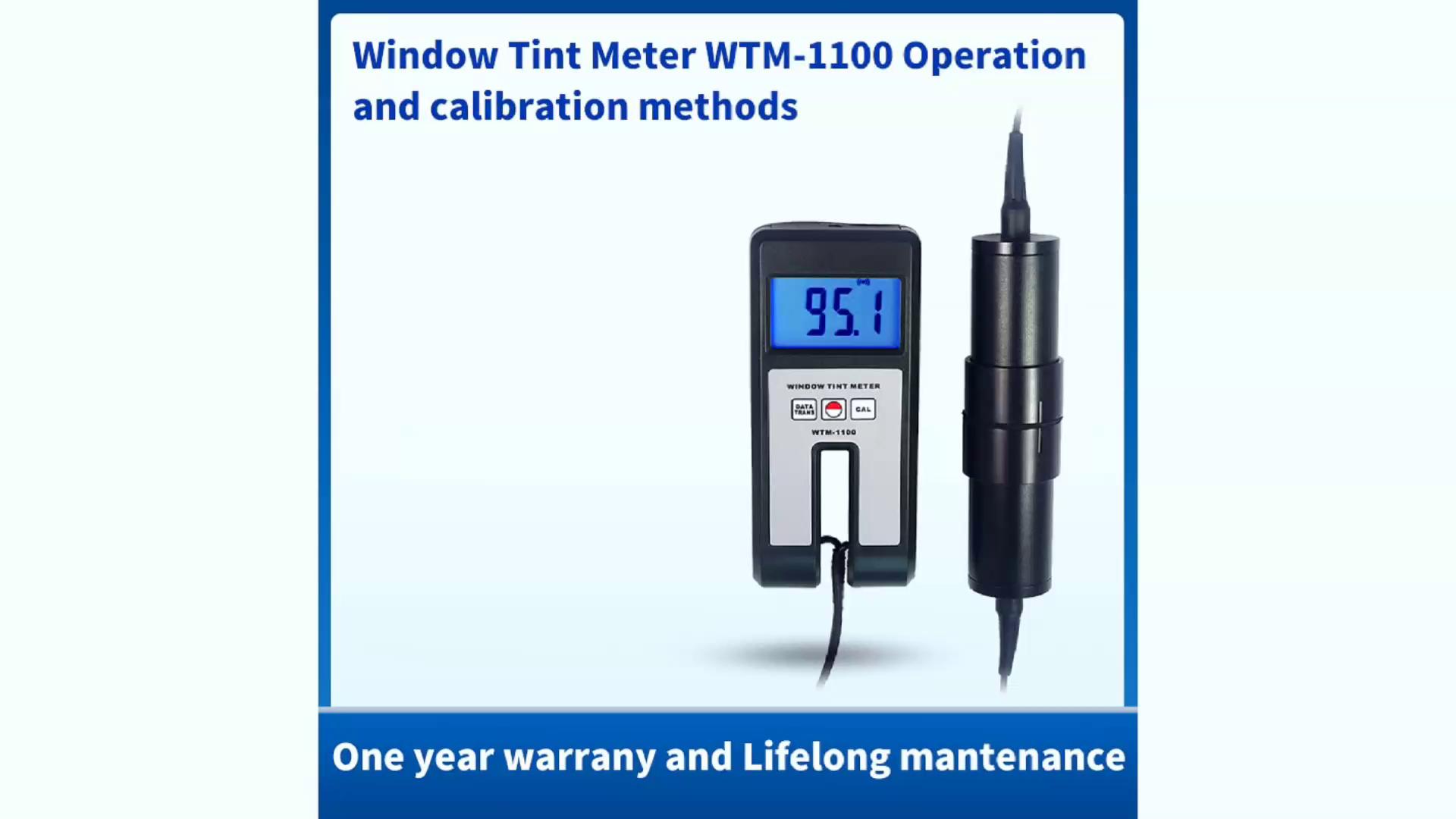

Window Tint Meter WTM-1100

Spec：	Applicable to measure the transmittance or haze of all kinds of transparent, translucent samples with parallel plane. Also can be used to determine the turbidity or clarity of liquid sample.
Model：	WTM-1100

產(chǎn)品詳情

　Features

* This Window Tint Meter is a hand held device that measures the amount of light that passes through a window.
* Technology is designed in accordance with GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards.
* Digital display, wide measurement range, high resolution.
* Solid structure, small volume, light weight, exquisite, easy to carry.
* Single / Continuous measuring mode.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.

Specifications

Model		WTM-1100	WTM-1000
Display		LCD
Range		0%~100%
Resolution		0.1
Accuracy		±2%
Sample Thickness		<<18 mm/0.7 inch	<<10 mm/0.4 inch
Light Source		LED
Measuring Mode		Single / Continuous
Operating Conditions		Temperature:0oC~50oC Humidity:,90%
Power Supply		4x1.5V AAA(UM-4)Battery
Size	Main Unit	126mmx65mmx27 mm	126mmx65mmx27 mm
	Sensor	125mmx38mmx38 mm	------
Weight		100g (Not Including Batteries)
Standard Accessories		Main Unit
		Testing Block
		Carrying Case(B04)
		Operation Manual
Opyional Accessories		USB Data Cable with Software
		Bluetooth Data Adapter with Software

　Downloads

　WindowTintMeter_WTM-1100_Catalog

　WTM-1100_EN_Manual

　RS232Software

NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
