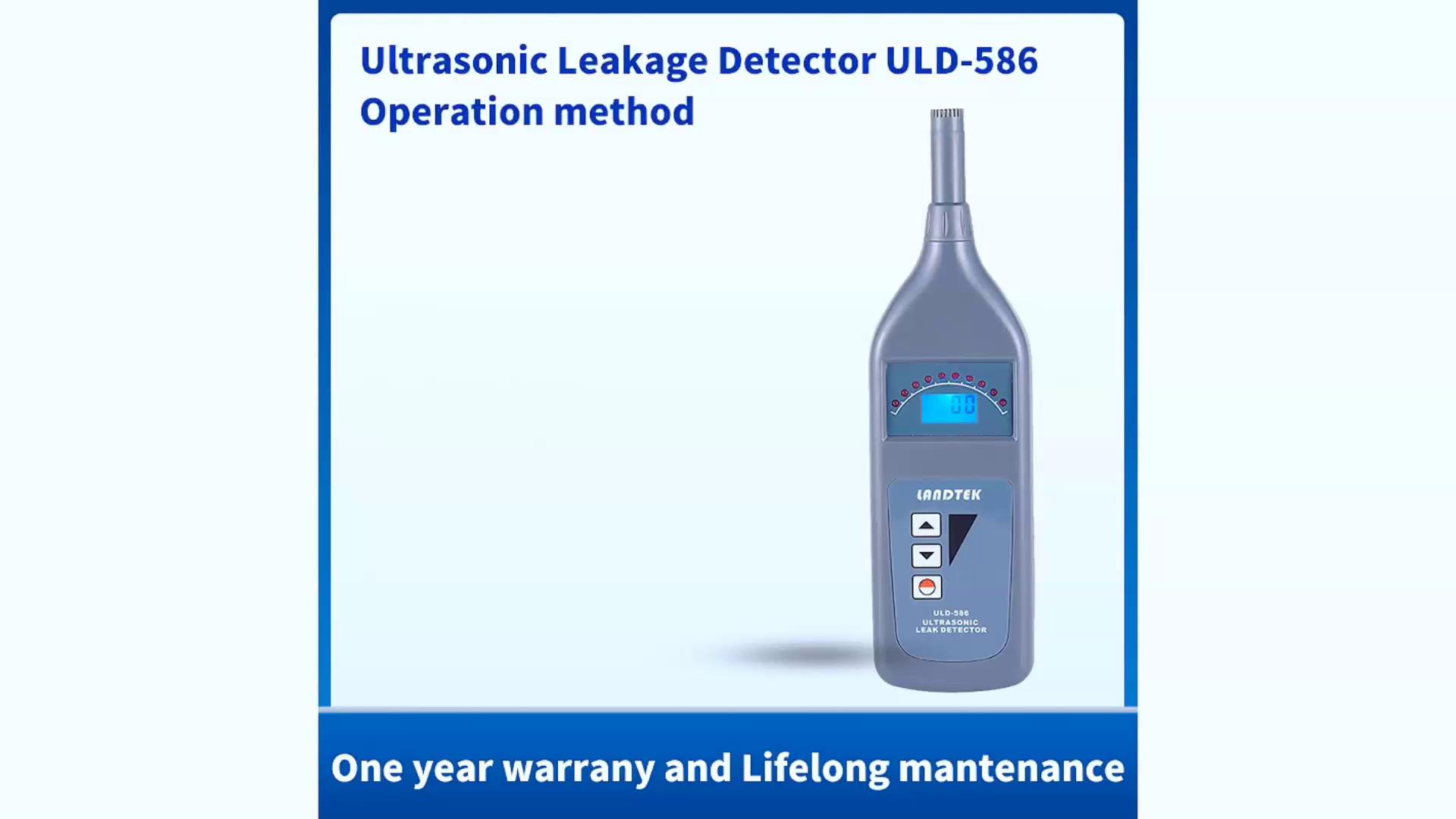

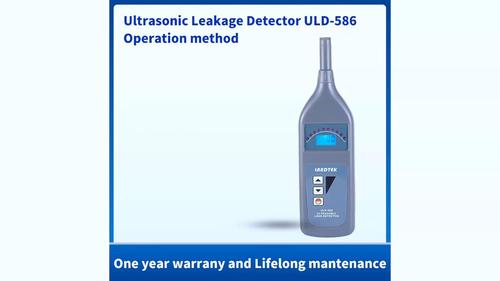

Ultrasonic Leakage Detector ULD-586
Spec: Used for measuring Leakage of system.
Model: ULD-586
產品詳情

 Features

This Ultrasonic Leakage Detector is designed to  locate the source of the ultrasonic emissions generated  by gas or air leaks. The leakage level is displayed by  "LED Display Panel", and is covered to audible sound  by either   internal buzzer or to external optional  earphone.



Used for measuring Leakage of system. Applicable to  detect Leaks in refrigeration and air condition systems,  Leaks in heating system, Internal leaks in steam transfers,  Compressed air leaks, Tire & tube leaks, Engine seals,  Electrical arcing, The bearing problems, Bake system. With the Ultrasonic transmitter, it is applicable to Air  leaks around door & window gaskets & seals, Water  leaks in roofs, Conduit & pipe identification, Door &  trunk seals, Windshield leaks.



Human ear can hear sound frequency up to 18 KHz. The  sound frequency above 20 KHz is categorized as  ultrasonic sound which is not audible. Ultrasonic sound is very directional in nature. We can  utilize this nature to pinpoint the exact origin of the  sound source where the leak is located. Physics tells us that the gas always flows from the higher  pressure region to the lower one. When the pressure  difference is only a small opening, the turbulence created  by the gas through the small hole then generates  ultrasonic sound. In the non pressurized state, the ultrasonic transmitter is  applicable, ultrasonic wave can leak from the small hole. Ultrasonic gas leakage detector is designed based on the  above simple physics.



Leakage Sensitivity Indicator
LED display panel & audible tone. (LED display is a relative measurement only.  Audible tone is the frequency of the received ultrasonic sound divided by 32.)
Frequency Response
20 KHz to 100 Khz.
Power Supply
4x1.5 AAA(UM-4) battery
Power Consumption
Approx. DC 25 mA.
Operating Temperature
0 to 50 °C ( 32 to 122 °F ).
Operating Humidity
Max. 80% RH.
Weight
Approx. 140 g/0.31 lb (including battery).
Size HWD 236 x 63 x 26 mm (9.3 x 2.5 x 1.0 inch)

Standard accessories


host /PVC pipe/ certificate/ instruction manual
Optional accessoriesUT40

 Downloads

  UltrasnoicLeakageDetector_ULD-586_Catalog

  ULD-586_EN_Manual

  RS232Software

NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
