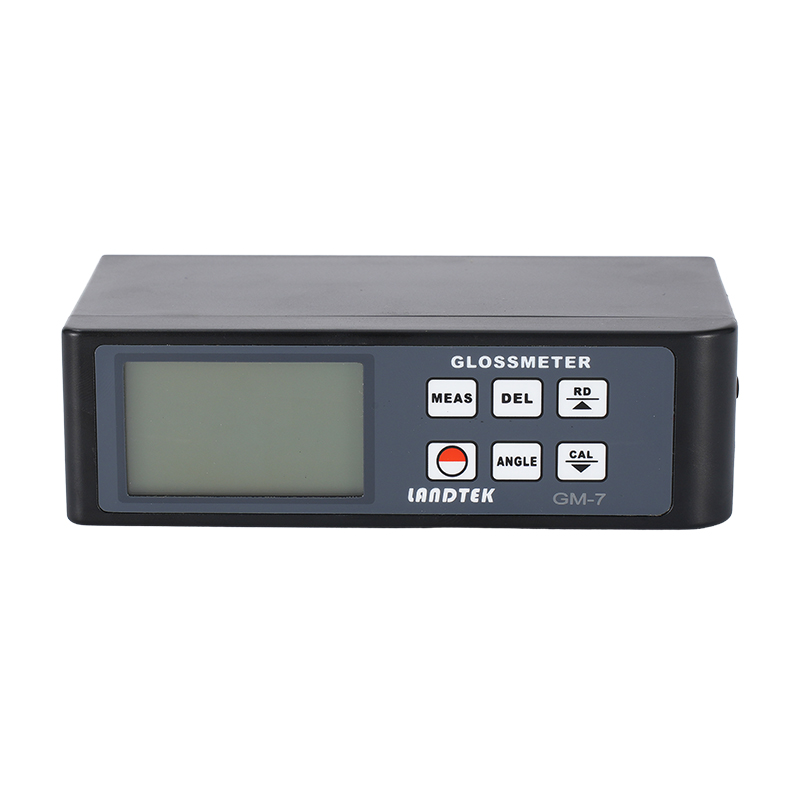

75°Gloss Meter (Integral Type) GM-7

Spec：	Glossmeter have different kinds of maesurement angles.Generally,20°applies to High Gloss Materials, 60°applies to Medium Gloss Materials,85°applies to Low Gloss Materials.
Model：	GM-7

產(chǎn)品詳情

　Features

* In accordance with international standard ASTMD523,ASTMD1455,ASTMC346,ASTMC574,ASTMD2457,DIN ENISO2813,DIN67530,ENISO7668,JISZ8741,MFT30064,TAPPIT480,GB9754,GB/T13891,GB7706 and GB8807.Its technical parameters conform with JJG696-2002.
* Accurate measurement,good repetitiveness.
* Automatic calibration.Small in size,easy to carry.
* Intelligent design,rapid measurement.
* Able to store 254 groups of measurements.
* Applies USB,Bluetooth data output.
* Bulit-in lithium ion rechargeable battery.
* Backlight display,suitable for lo light environment.

Specifications

Display	4 Digits Backlit LCD
Measuring Angle	75°
Range	0.1GU ~ 200GU
Gloss Units	GU
Accuracy	±1.0 GU
Resolution	0.1
Repeatability	±0.5 GU
Measuring Area	7 mmx 14 mm（Ellipse）
Data Memorized	254 Groups
Operating Conditions	Temp ：0°C ~ 40°C
Operating Conditions	Humidity ：< 85% RH
Power Supply	3.7 V Lithium Ion Rechargeable Battery
Dimensions	140 mmx 45mm x 75 mm
Weight	305 g（Including Batteries）

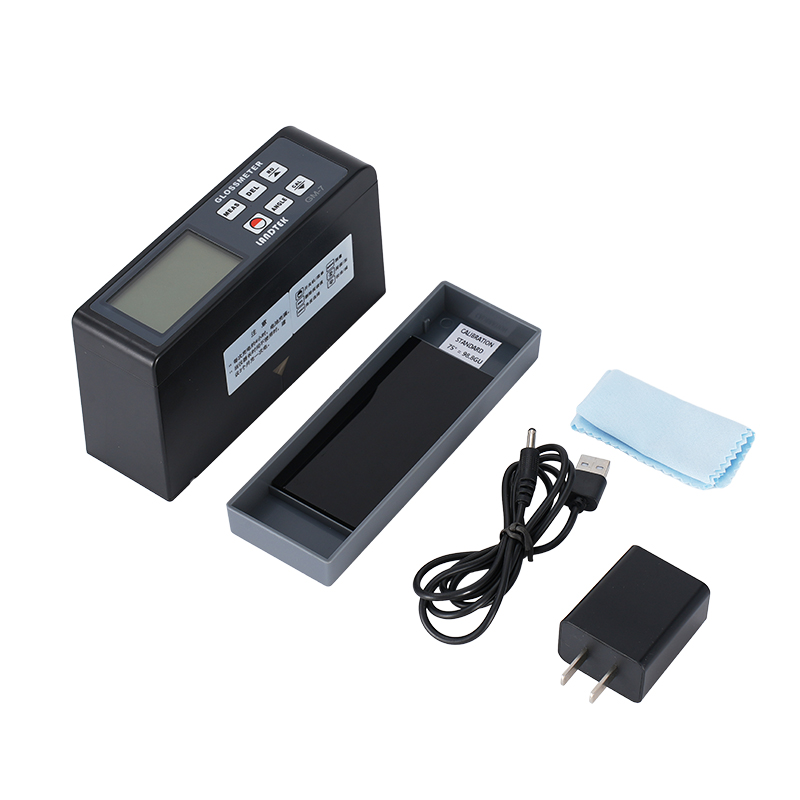

Standard Accessories	Main Unit
	Holder with Calibration Standard
	Optical Cleaning Cloth
	Carrying Case（B04）
	Operation Manual
Optional Accessories	USB Data Cable with Software
Optional Accessories	Bluetooth Data Adapter with Software

　Downloads

　GlossMeter_GM-7_Catalog

　GM-7_EN_Manual

　RS232Software

NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
