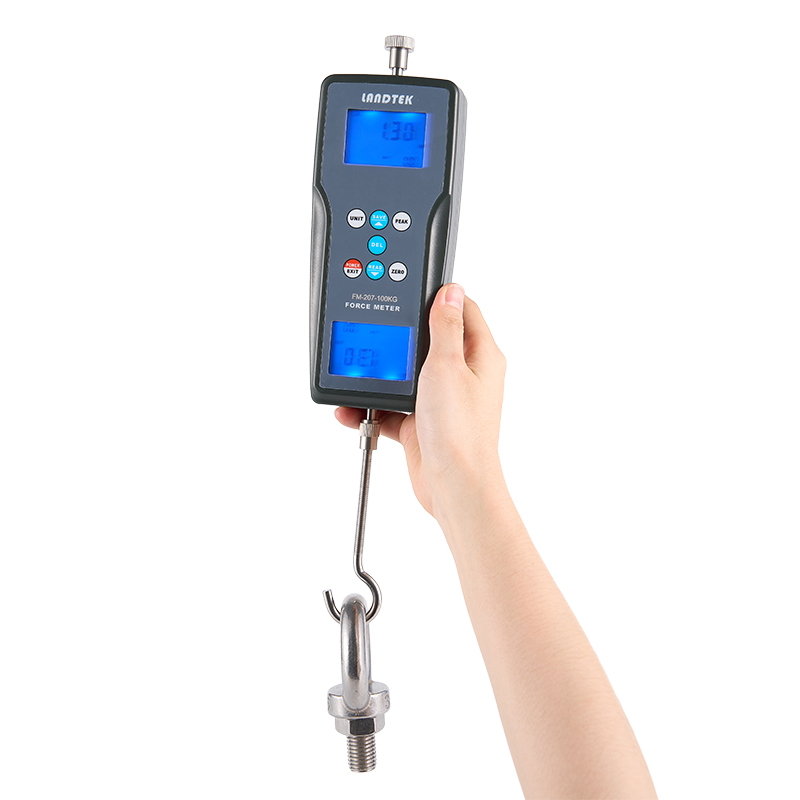

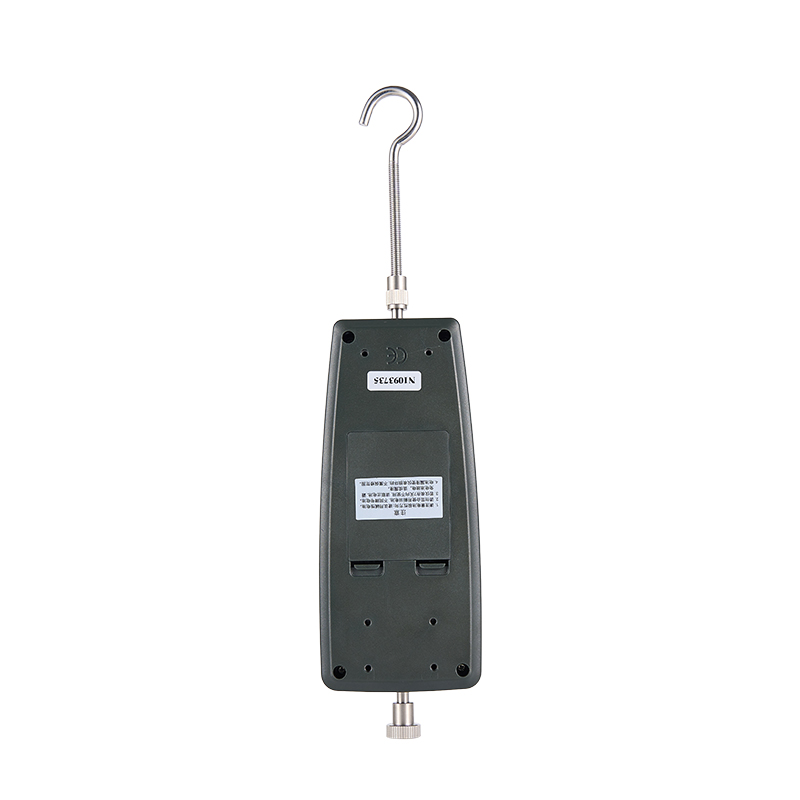

Digital Force Gauge FM-207-100K

Spec：	The digital force gauge is a kind of simple and convenient functional instrument for high-accuracy push force and pull force test.It is widely used in electronics,building hardware,textile,auto parts,
Model：	FM-207-100k

產品詳情

　Features

* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With data memory function, can memorize 99 groups of data.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 5V DC power.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

　Specifications

Force Range	±100 kgf
	±980 N
	±220 Lbf
Resolution	0.01 kgf
	0.1 N
	0.1 Lbf
Accuracy	±0.2% FS ±1 Digit
Unit	Kgf, gf, N, Lbf
Measurement State	Peak Value Measurement, Real Time Measurement
Display	2 Reversed 4 Digit LCD
Power Off	10 Minutes Auto Power Off, Manual Power Off
Backlight	Blue Backlight
Safe Load	150% FS ( Buzzer Alarm Over 110% FS )
Data Output	USB, Bluetooth
Power Supply	2 x 1.5 AA( UM-3 ) Battery or 5VDC Power Supply
Operating Conditions	Temperature: 0 ~ 40°C
Operating Conditions	Humidity: <80%
Surrounding	No Vibration Source or Corrosive Medium Around
Weight	390 g
Size	211mm x 80 mmx 36 mm

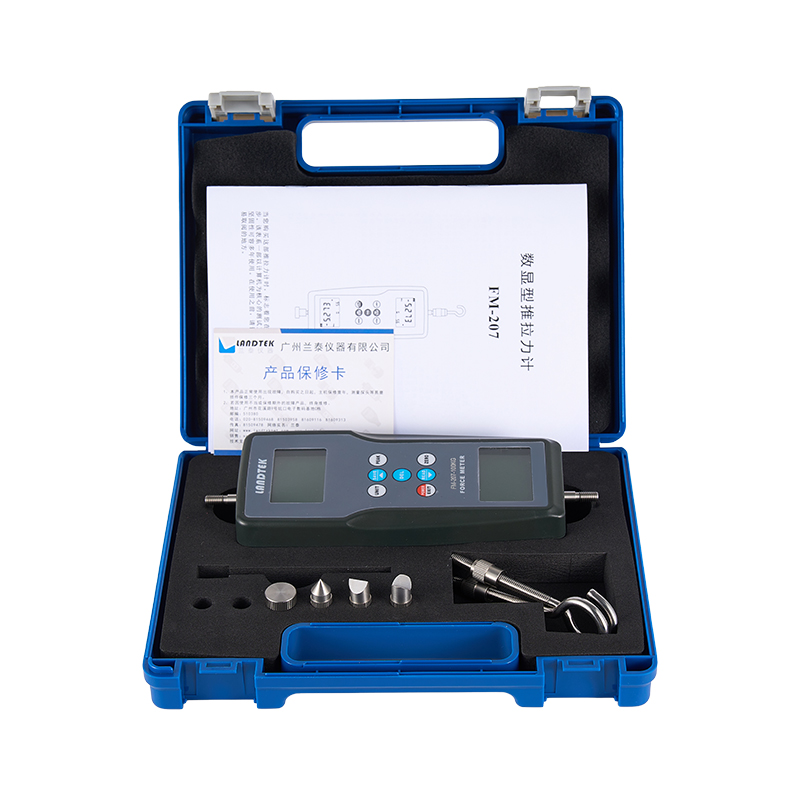

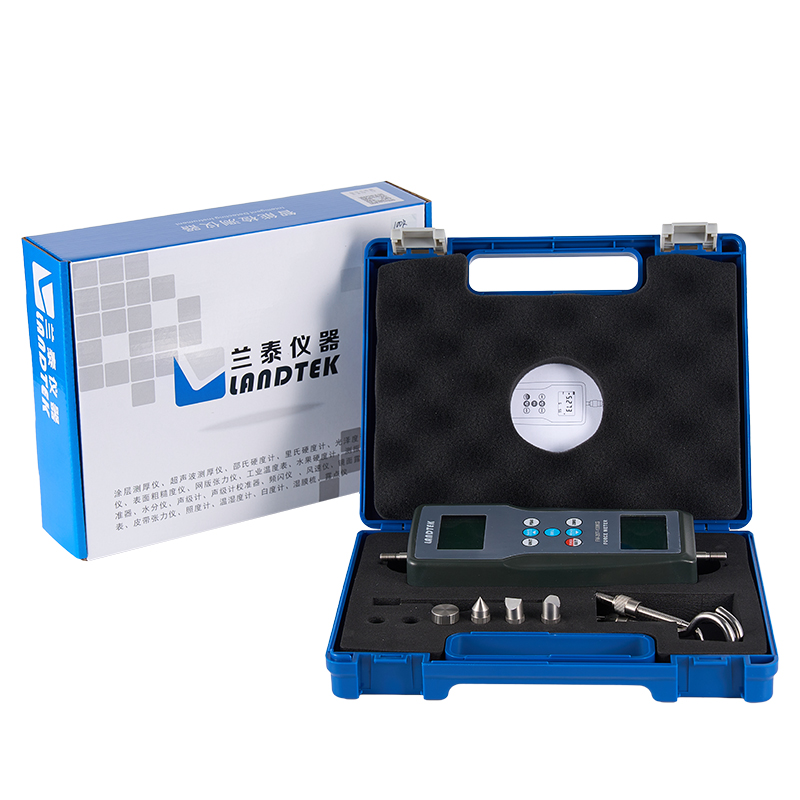

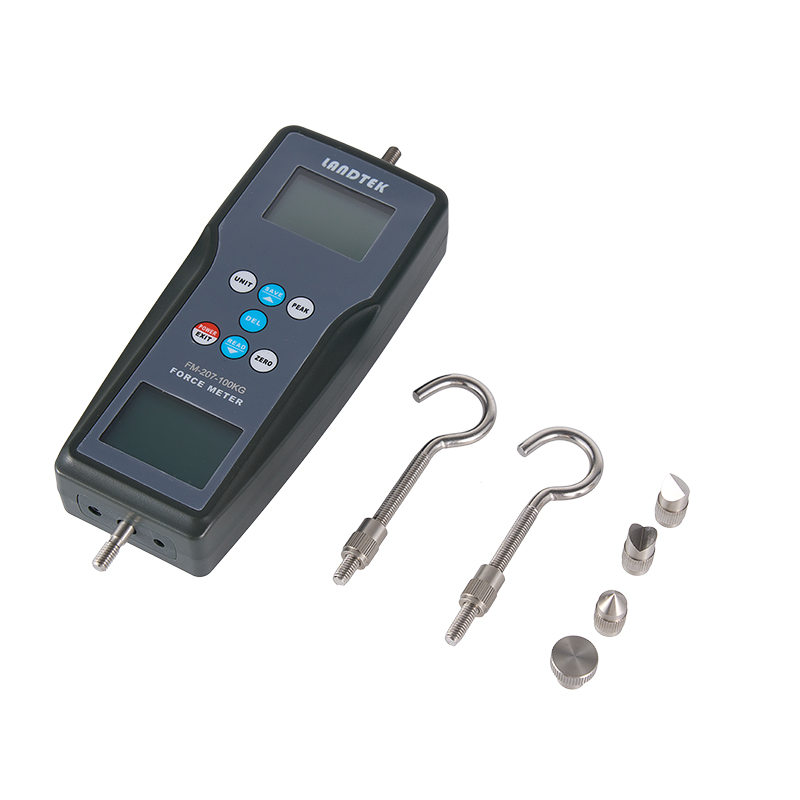

　Accessories

Standard Accessories	Digital Force Gauge
	Pulling Hook
	Flat Tip
	Cone Tip
	V-shaped Groove Tip
	V-shaped Wedge Tip
	Lengthening Connection Rod	Screw Rod
		Cap Nut
	Manual
	Carrying Case
Optional Accessories	CD
	USB Data Cable
	Bluetooth Adapter
	Power Adapter
	Force Gauge Stand

　Specification And Application Of Accessories

　Downloads

　DigitalForceGauge_FM-207-100k_Catalog

　FM-207-100k_EN_Manual

　RS232Software

NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
