Provide high-tech measuring products and technical developments for instrument service providers

NDT and Photoelectric Measurements

產品詳情

Share to：

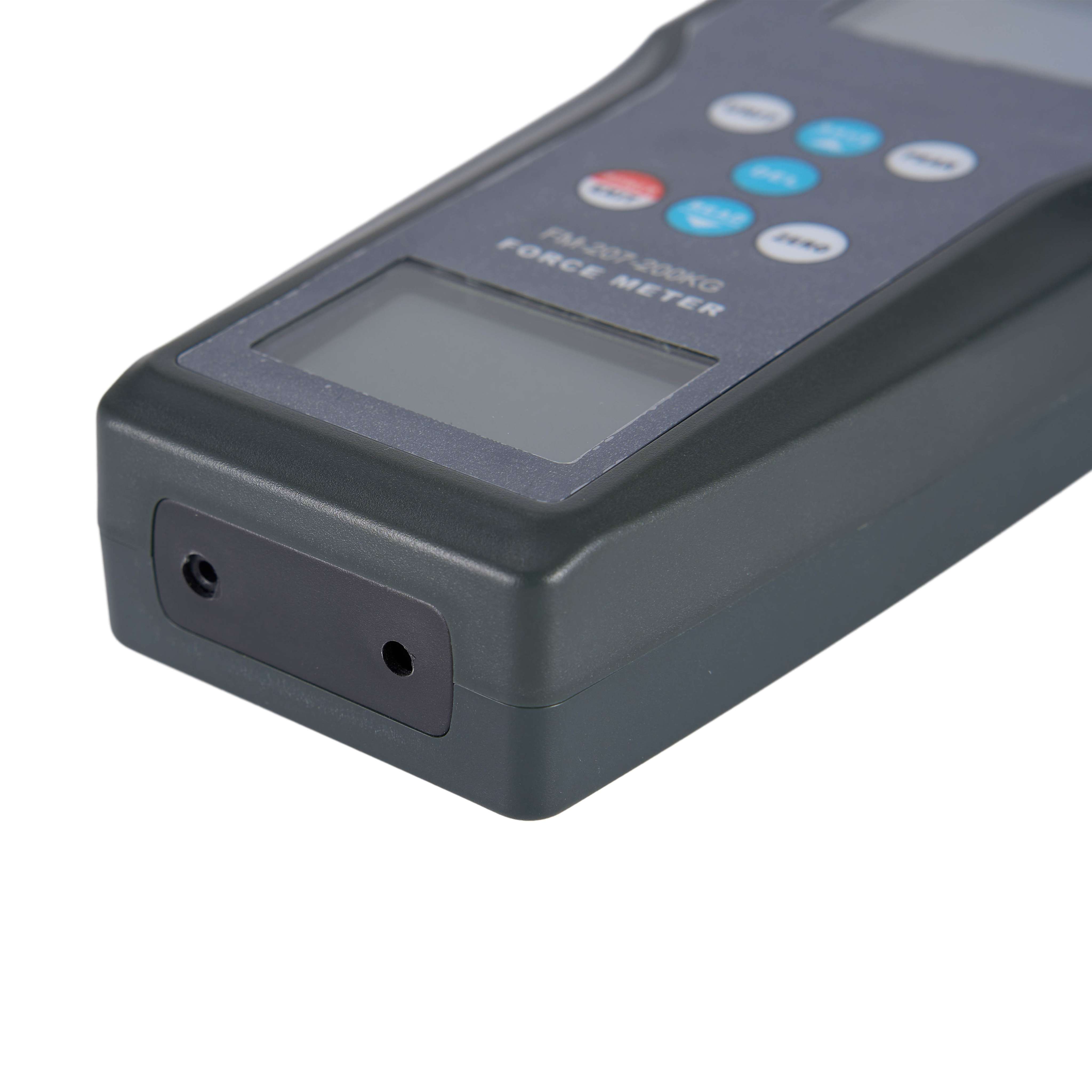

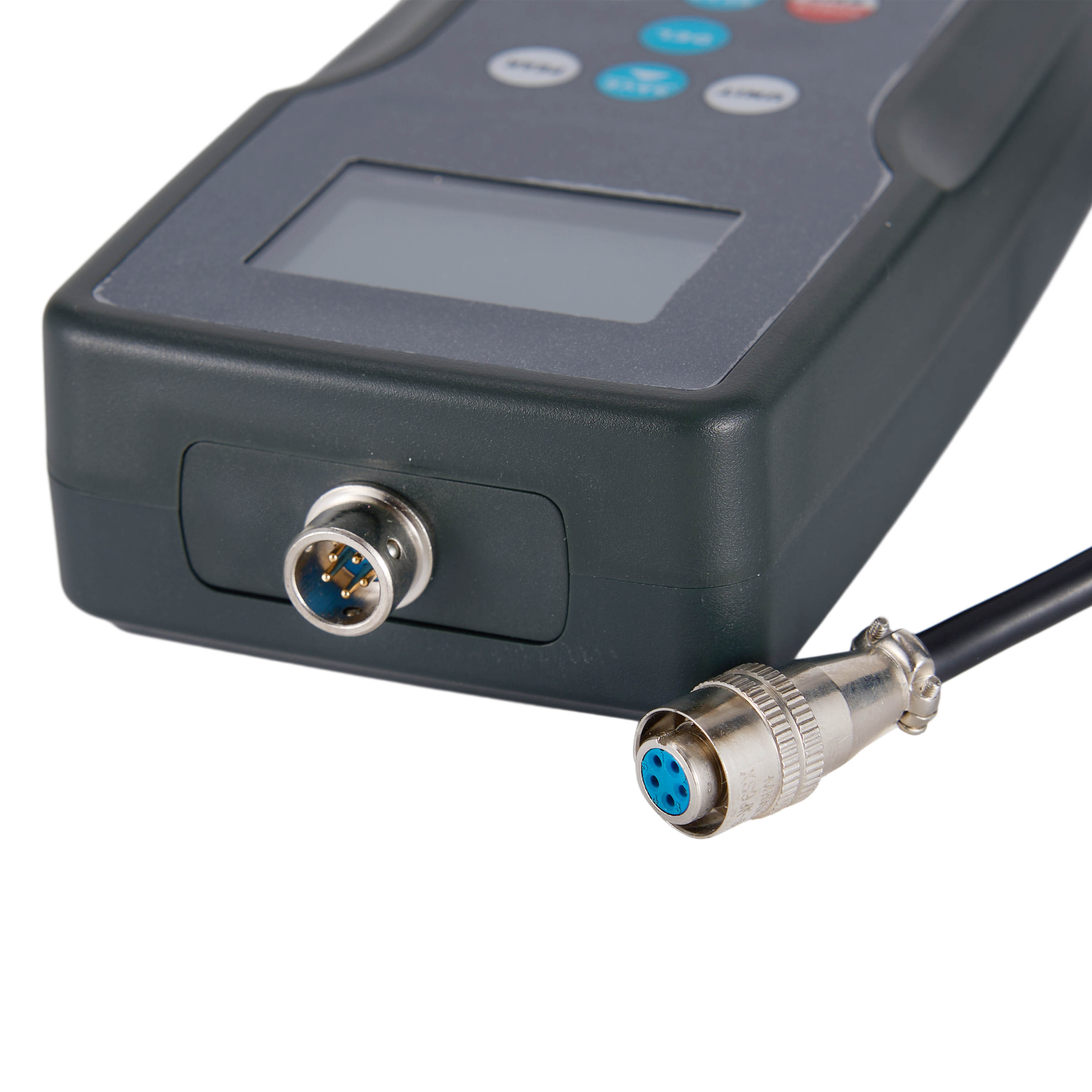

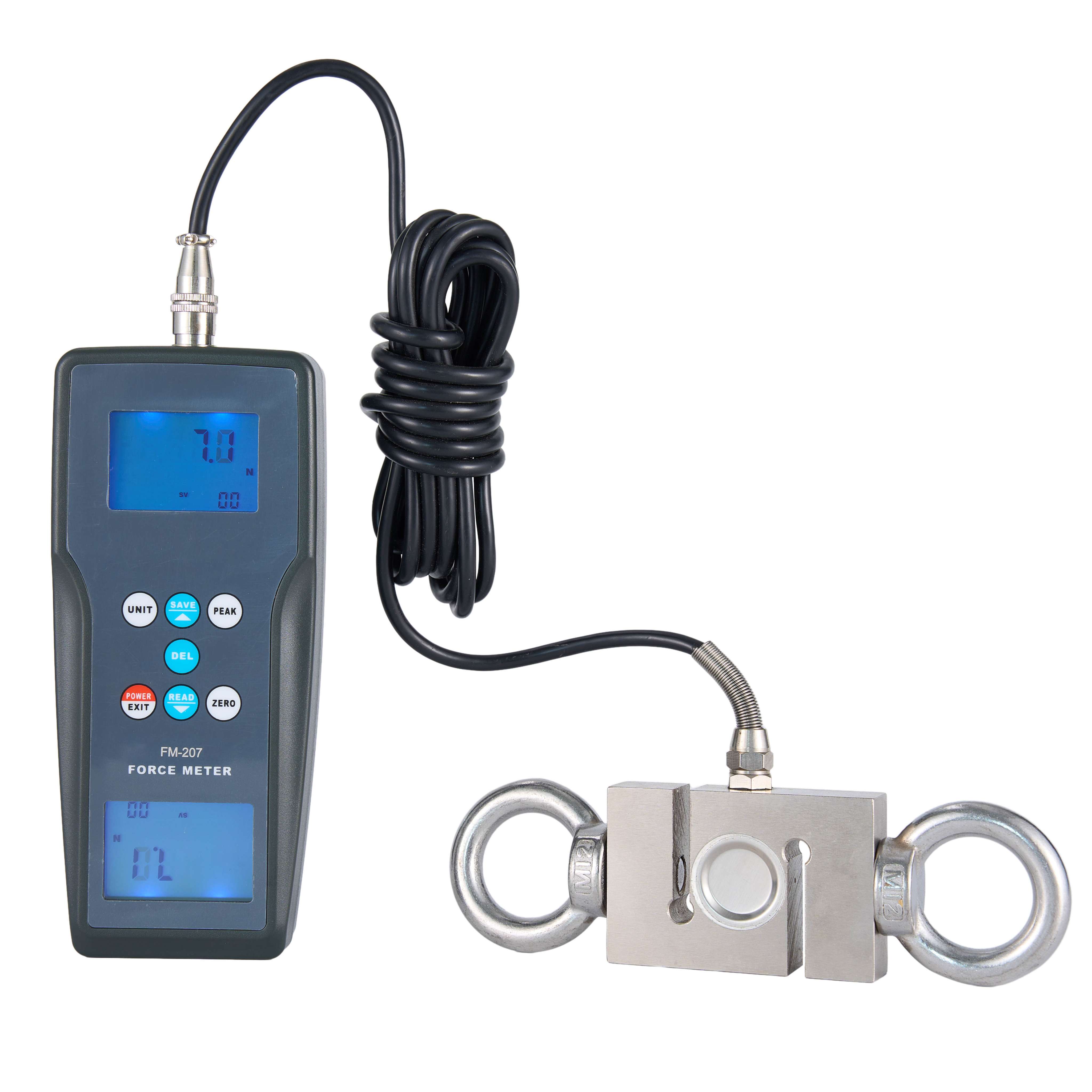

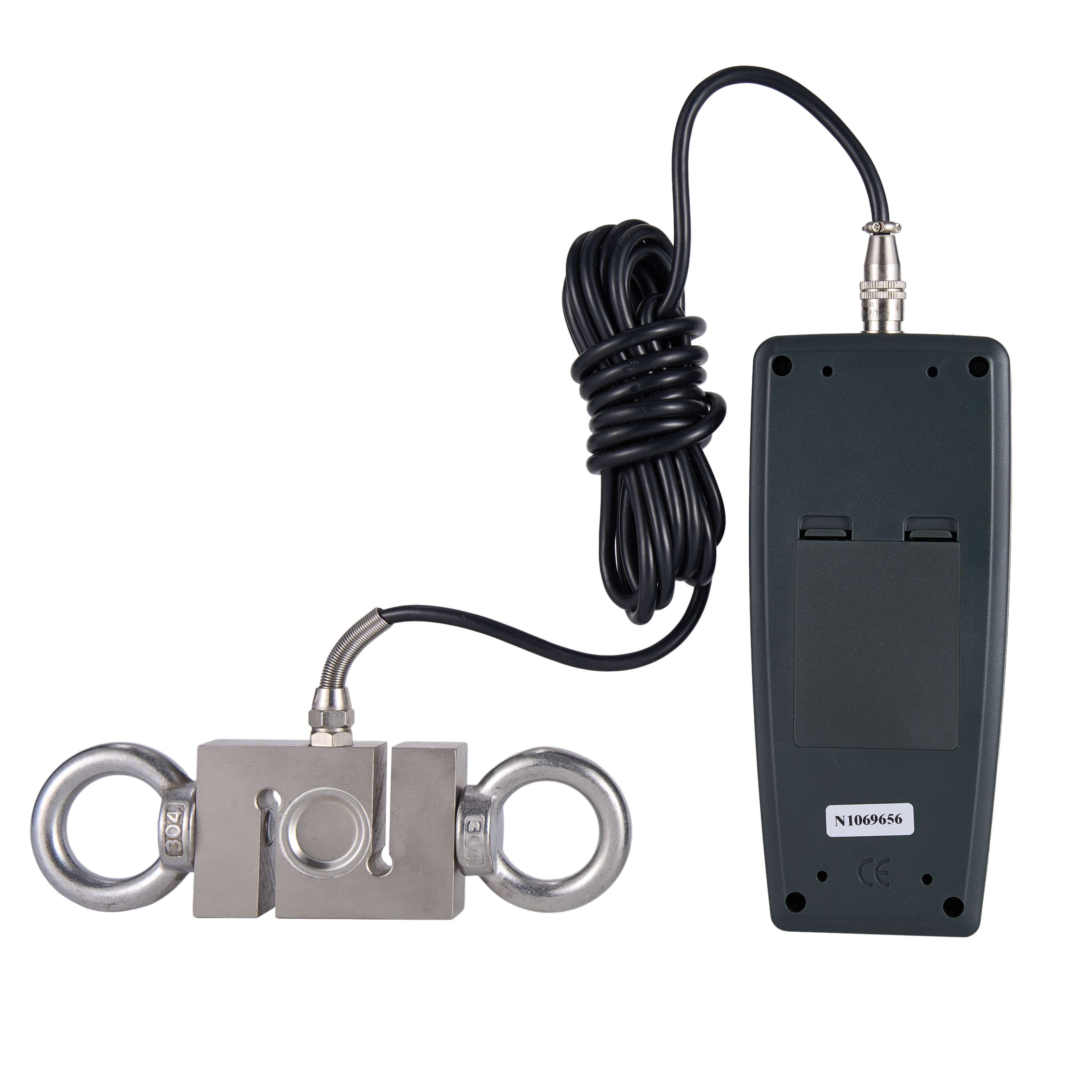

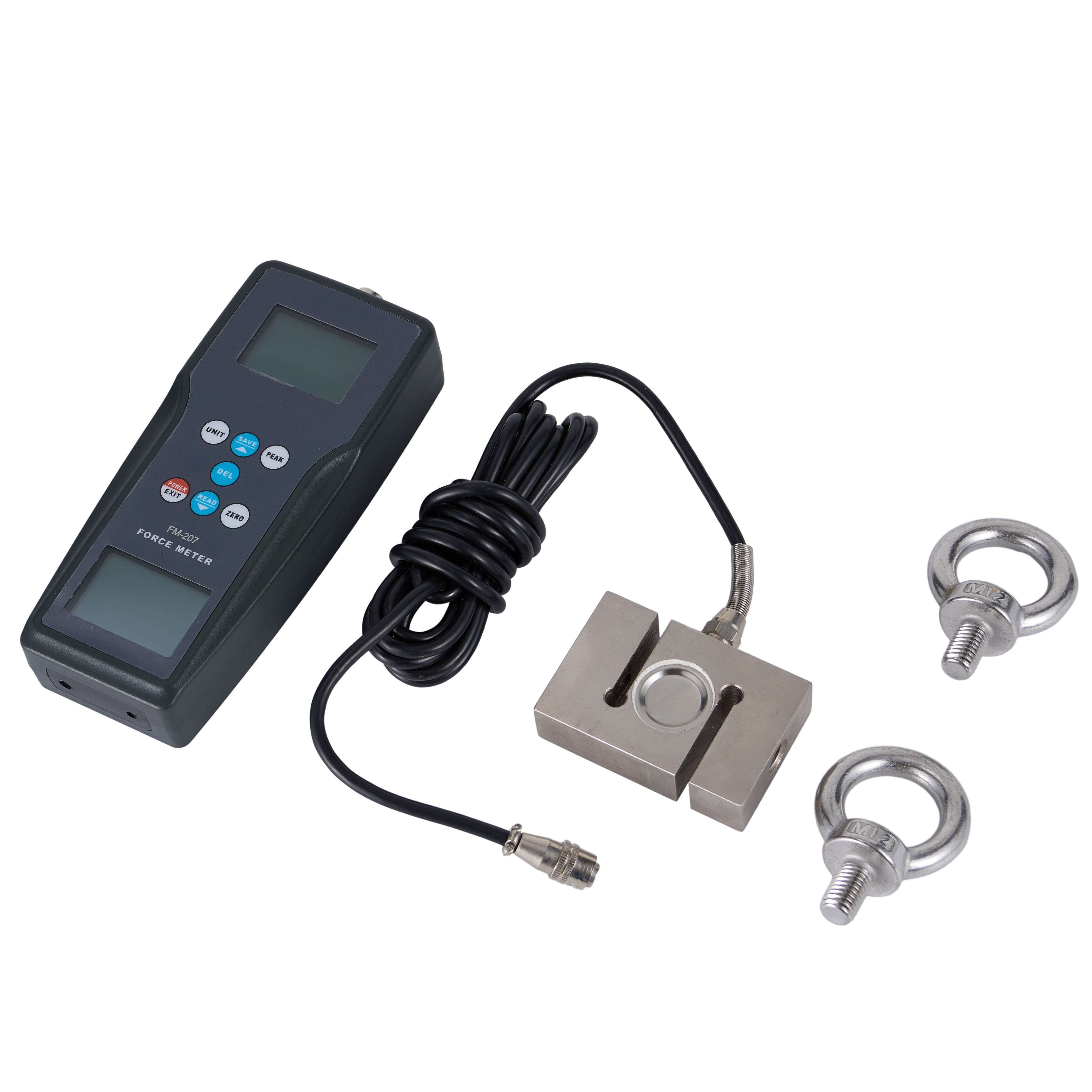

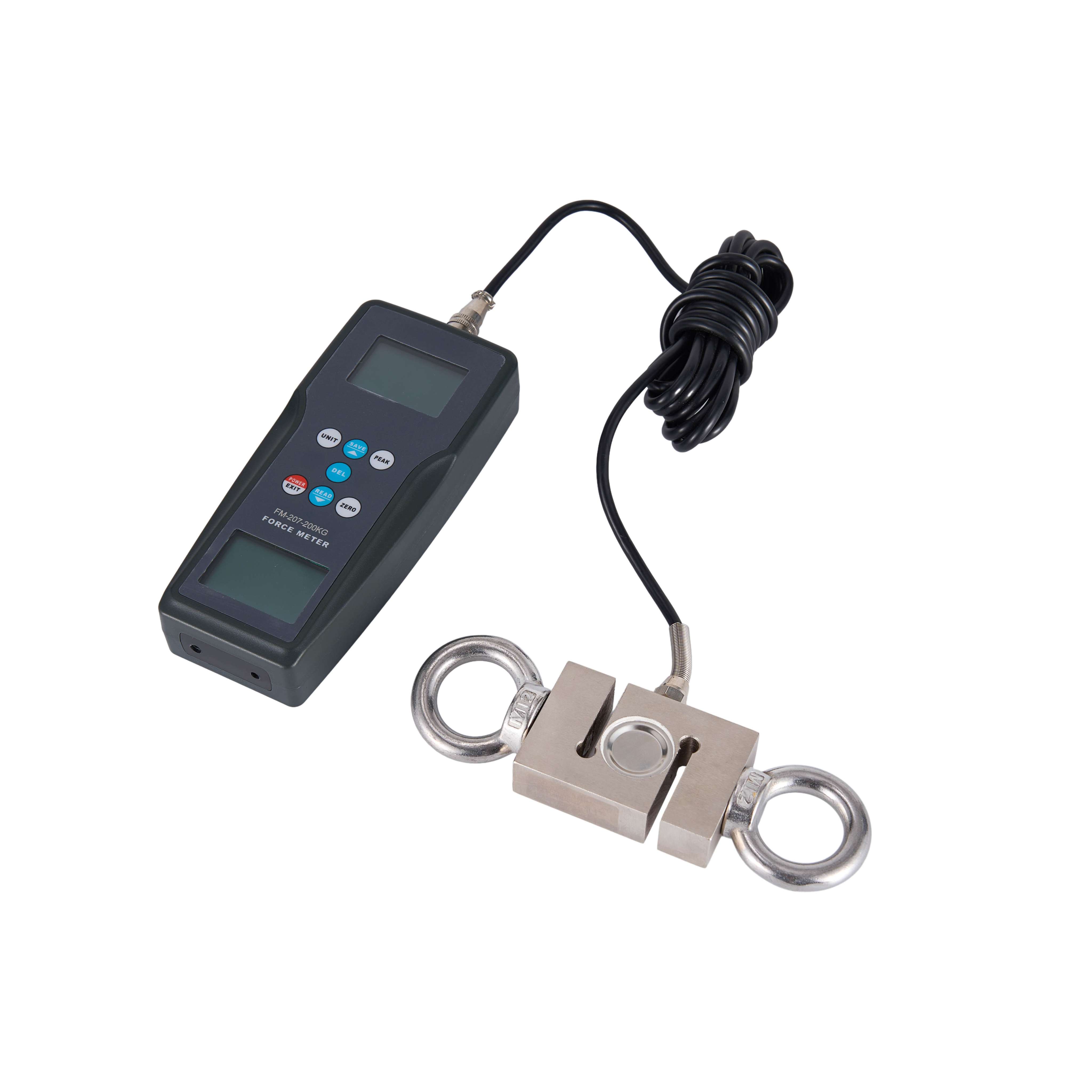

Digital Force Gauge FM-207-500K

Spec：	The digital force gauge is a kind of simple and convenient functional instrument for high-accuracy push force and pull force test.It is widely used in electronics,building hardware,textile,auto parts,
Model：	FM-207-500k

產品詳情

　Features

* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb，g.
* With peak value hold function.
* can memorize 99 groups of data.
* With 10 minutes auto power off and manual power off.
* Either alkaline battery Power supply or 5V DC power.
* Use USB cable or Bluetooth adapter for data output.

Force Range	±500 kgf
	±4900 N
	±1100 Lbf
Resolution	0.01 kgf ( <100 kgf ) 0.1 kgf ( ≥100 kgf )
	0.1 N ( <1000N ) 1 N ( ≥1000 N )
	0.1 Lbf ( < 1000 Lbf ) 1 Lbf ( ≥1000 Lbf )
Accuracy	±0.5% FS ±1 Digit
Unit	Kgf, N, Lbf
Measurement State	Peak Value Measurement, Real Time Measurement
Display	2 Reversed 4 Digit LCD
Power Off	10 Minutes Auto Power Off, Manual Power Off
Backlight	Blue Backlight
Safe Load	150% FS ( Buzzer Alarm Over 110% FS )
Data Output	USB, Bluetooth
Power Supply	2 x 1.5 AA( UM-3 ) Battery or 5VDC Power Supply
Operating Conditions	Temperature: 0 °C~ 40°C
Operating Conditions	Humidity: <80%
Surrounding	No Vibration Source or Corrosive Medium Around
Weight	1165 g
Case Size	175 mmx 80mm x36 mm
Senor Size	181 mmx 54mm x 30 mm

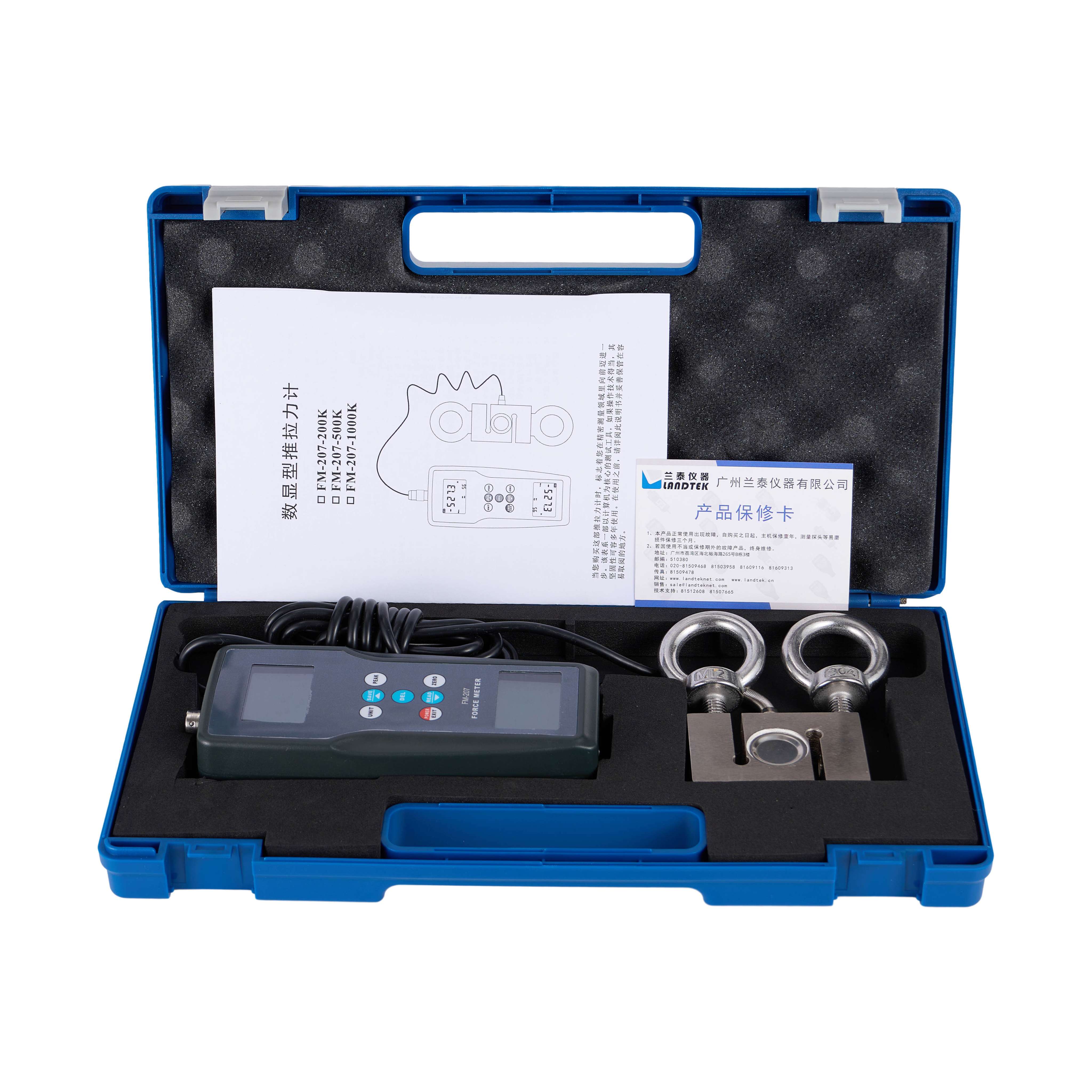

Standard Accessories	Digital Force Gauge
	Sensor ( M12 Screw Hole )
	2 Suspension Links
	Manual
	Carrying Case
Optional Accessories	CD
	USB Data Cable
	Bluetooth Adapter
	Power Adapter

　Downloads

　DigitalForceGauge_FM-207-200k_Catalog

　FM-207-200k_EN_Manual

　RS232Software

NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
