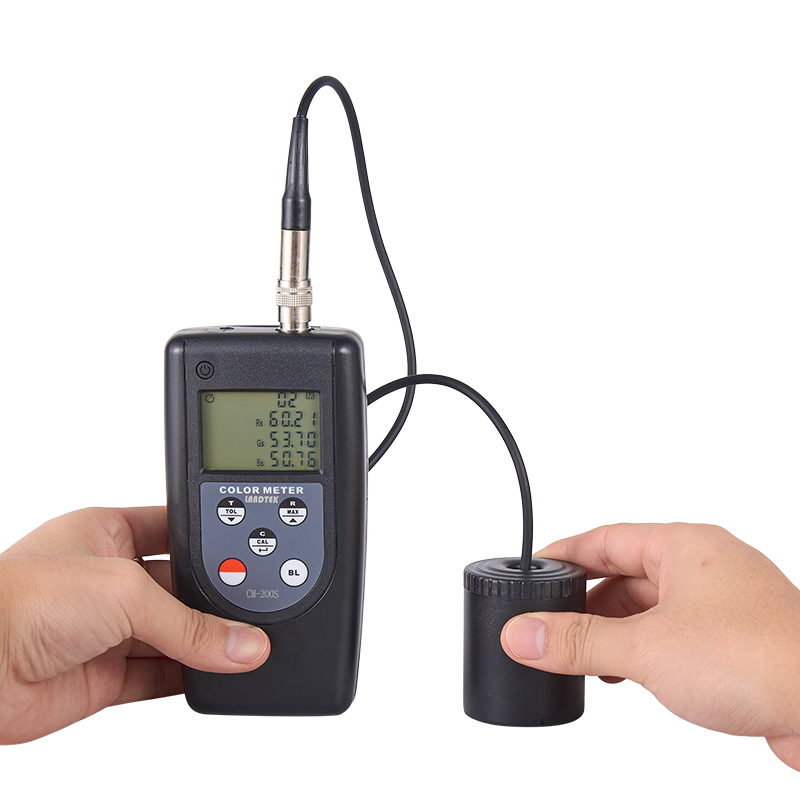

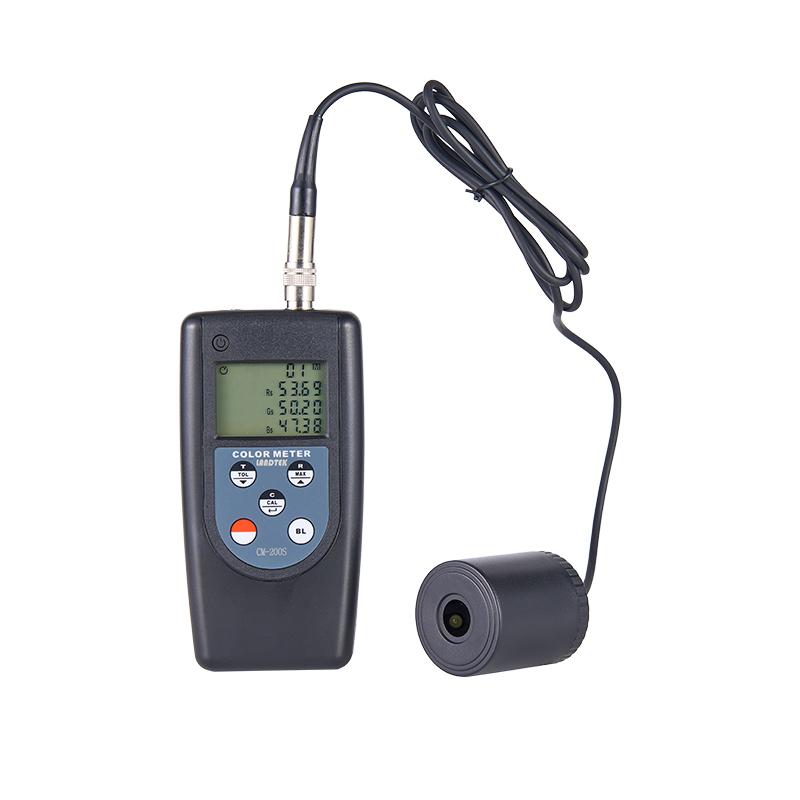

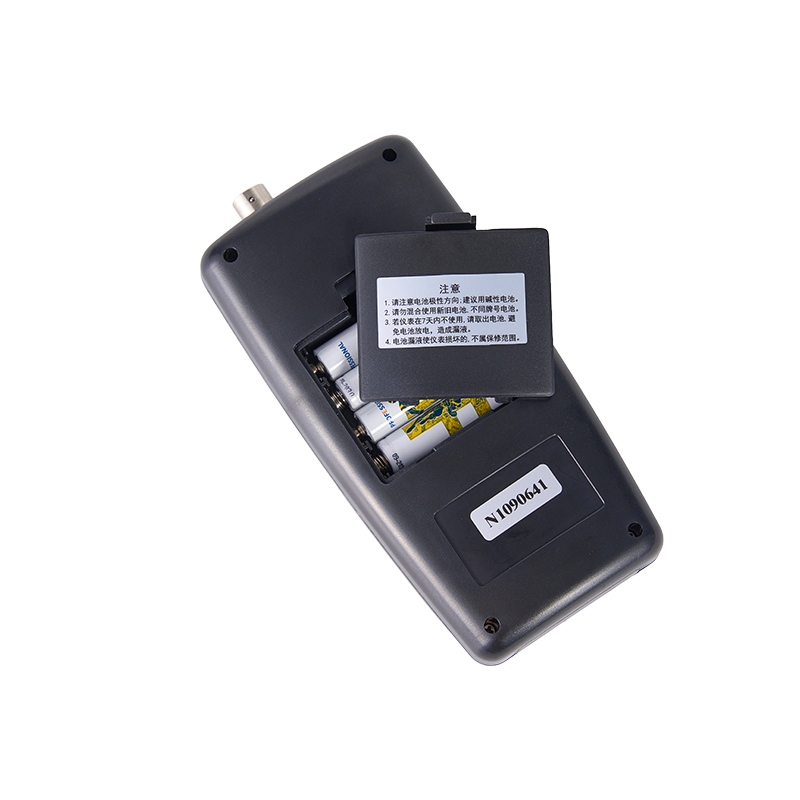

Color Meter CM-200S
Spec：
The meter is an extremely compact, extremely easy-to-use tristimulus colormeter specially designed for measuring the color difference between two colors.
Model：
CM-200S
產品詳情
Features
The meter is designed for measuring the color of no lighting and non-fluorescent sample such as textile, paper, leathers, painting materials, etc. It is the useful tool for the quality control and wide industrial application. * Color difference displayed ?(L*, a*, b*), ?(E*ab, C*ab, H*ab), ?(Y, x, y), ?(X, Y, Z), ?(Rs, Gs, Bs) or ?(WI, YI, Tw). * Color space displayed (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw). * Statistical function (Maximum, Minimum, Average and Standard Deviation). * Color difference tolerance set to perform PASS / WARN / FAIL. * Store 9 color-difference target colors. * User calibration function ensures higher accuracy. * Auto memory (99 sets) & Read function. * Digital backlight display. * Auto power off function. * Applies USB, Bluetooth data output. * Use USB data output to connect with PC.
Display
Triple 4 digit LCD Display
Auto power off
Approx. 3 minutes
Data memory capacity
99 set. (Direct reading from LCD display)
Low battery indication
√
Illuminating/Viewing geometry
45°/0°: Illumination at 45°, measurement at 0°
Measuring area
Color difference: ?(L*,a*,b*), ?(E*ab,C*ab,H*ab), ?(Y,x,y), ?(X,Y,Z), ?(Rs,Gs,Bs) or ?(WI,YI,Tw)
Color space: (L*, a*, b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw)
Target color memory
9 channel; set by measurement or keypad
Measuring range
L*: 5 to 100
Measurement conditions
Observe: CIE 2° Standard Observer
Illuminant
White LED lamp
Repeatability
Standard deviation within ?E*ab 0.5 (Measurement conditions: Average of measurements of standard white plate)
NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
