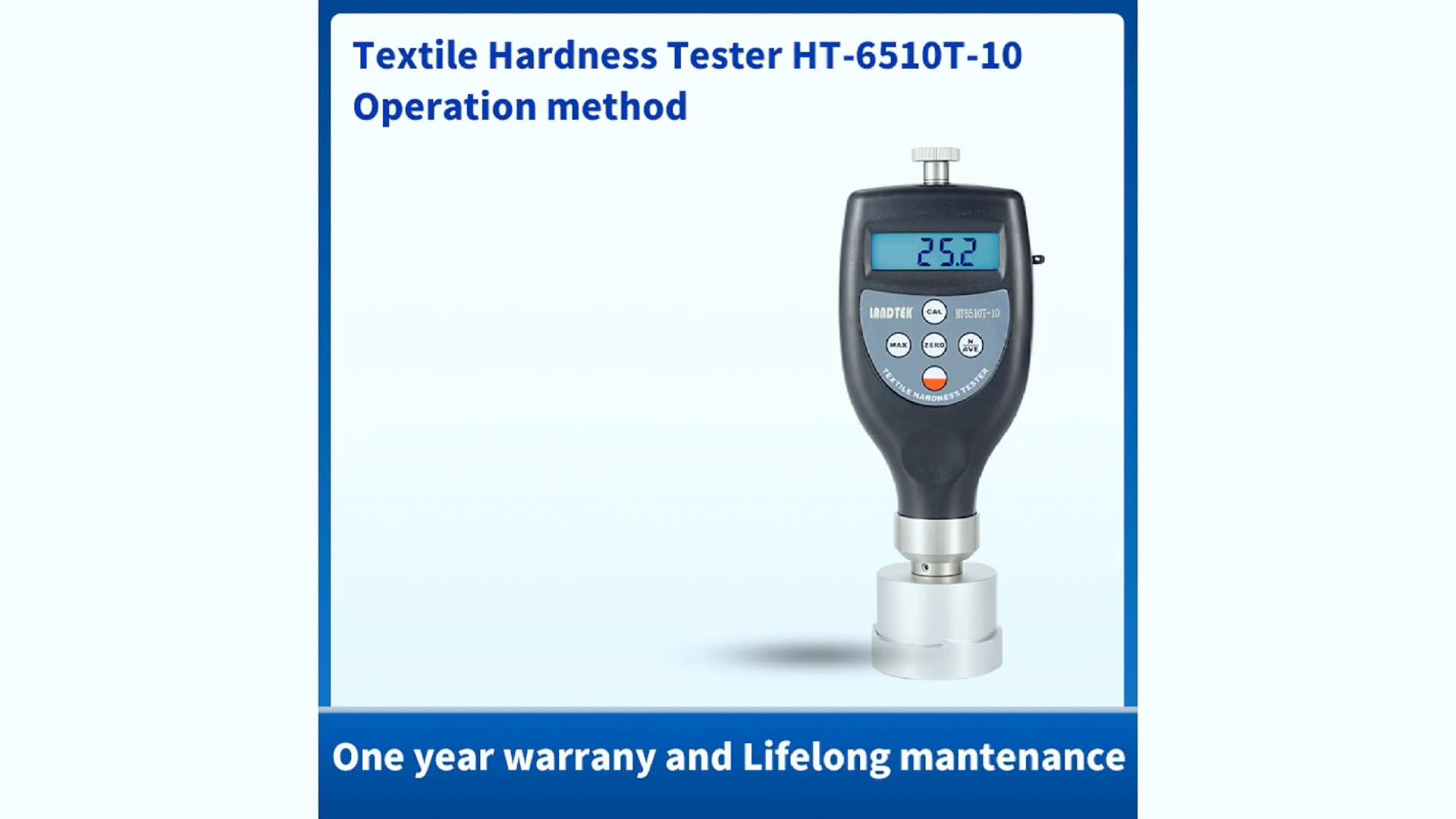

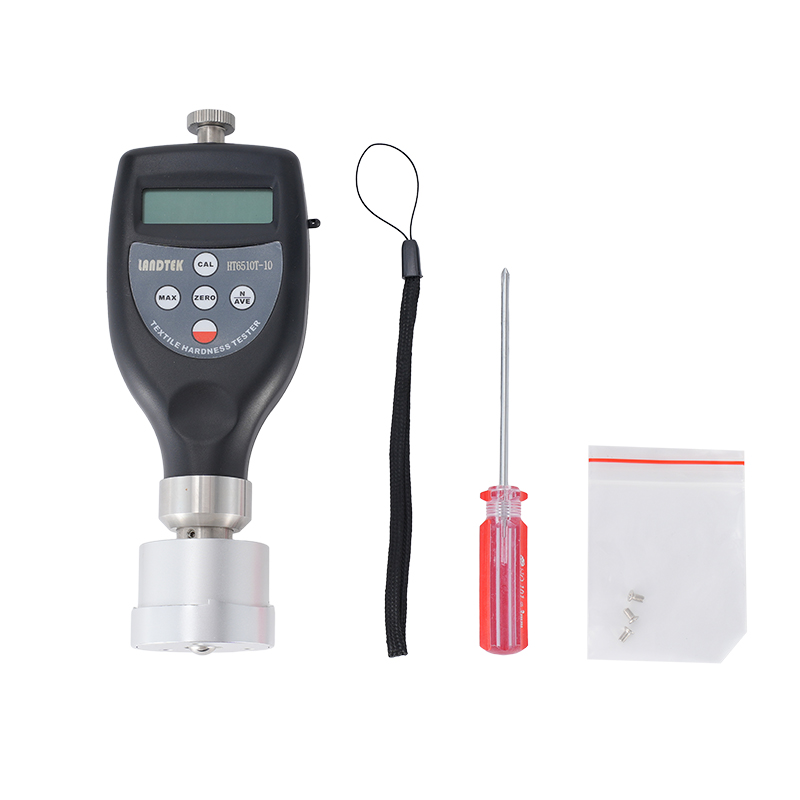

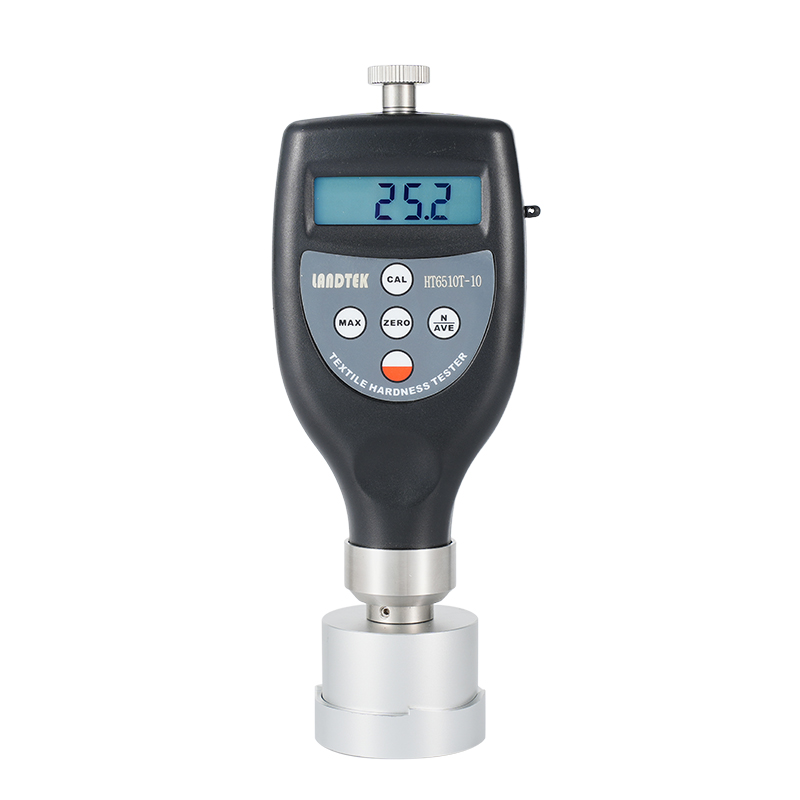

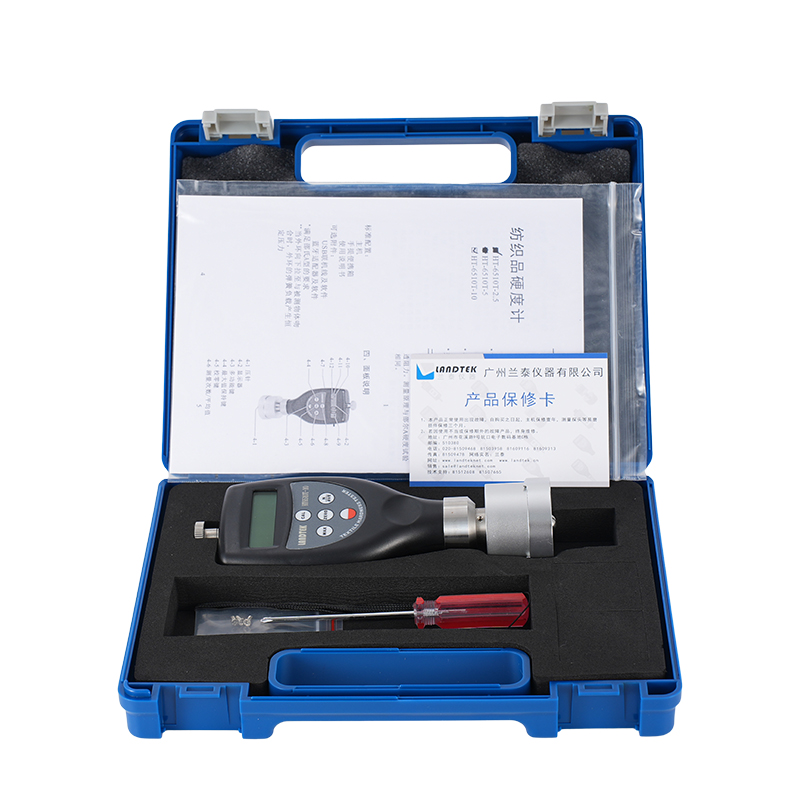

Textile Hardness Tester HT-6510T-10
Spec：
To measure the winding density (hardness) of textile bobbins, beams, spools, cones, dye packages etc.
Model：
HT-6510T-10
產品詳情
Features
* Convertible probe, the curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the flat end of the probe is suitable for the bobbin with a diameter greater than 400mm. * With average calculate function. * Peak value deposit function. * Under-voltage alarm function. * Use USB data output to connect with PC. * Provide Bluetooth data output choice.
Principle
The principle used to measure textile hardness is based on measuring the resistance force of the penetration of a ball against the spool under a known spring load. The measuring principle is the same as for the Shore A hardness test.
Model
HT-6510T-2.5
HT-6510T-5
HT-6510T-10
Parameters
Tested Result/Mean Value/Max.Value
Indenter
Ball 2.5mmΦ
Ball 5mmΦ
Ball 10mmΦ
Convertible Probe
The curved end of the probe is used for the bobbin with a diameter less than or equal to 400mm, and the plane end of the probe is suitable for the bobbin with a diameter greater than
400mm
Area Of Application
For closely wound bobbins of synthetic, finished fibers and filaments
For loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads
For very loosely wound bobbins of thick yarns, such as carpet yarns
NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
