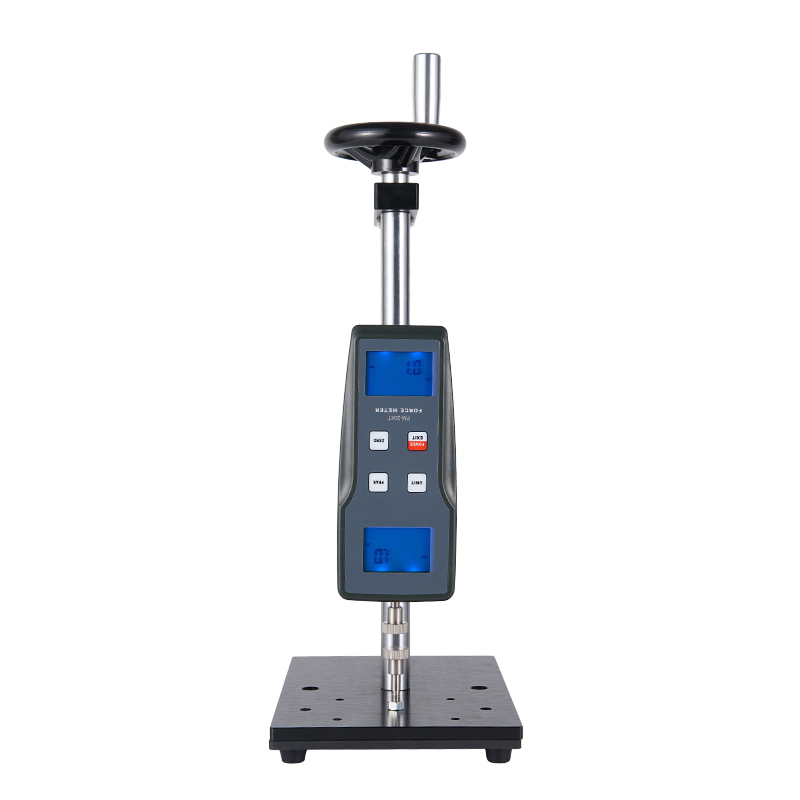

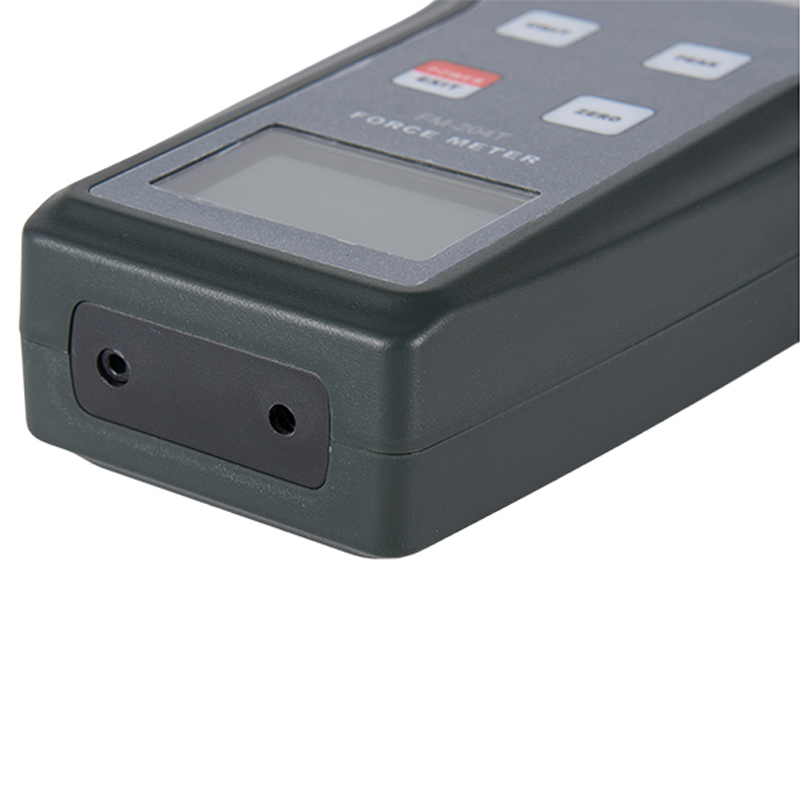

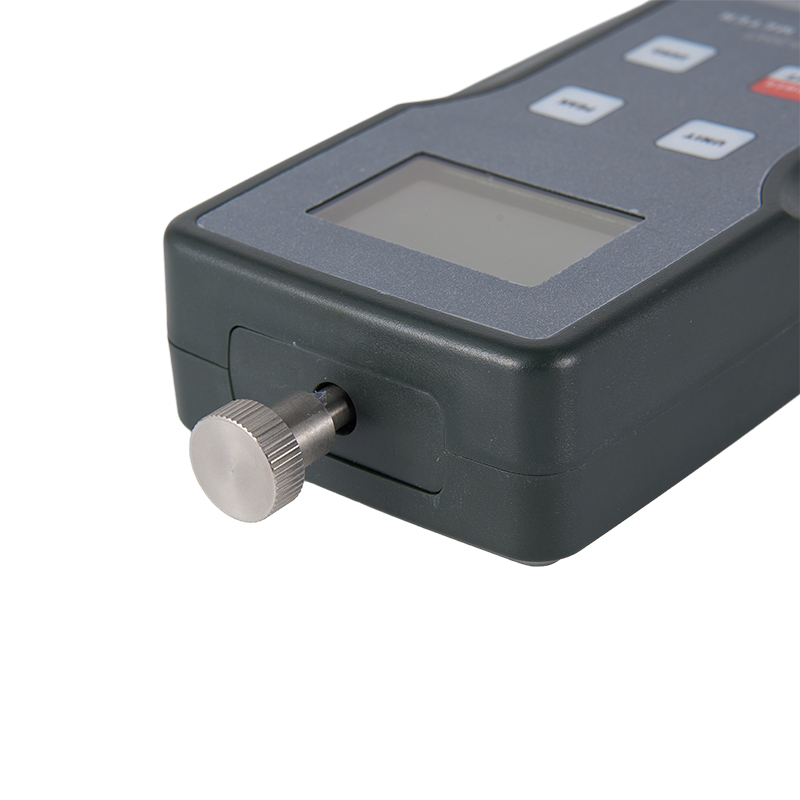

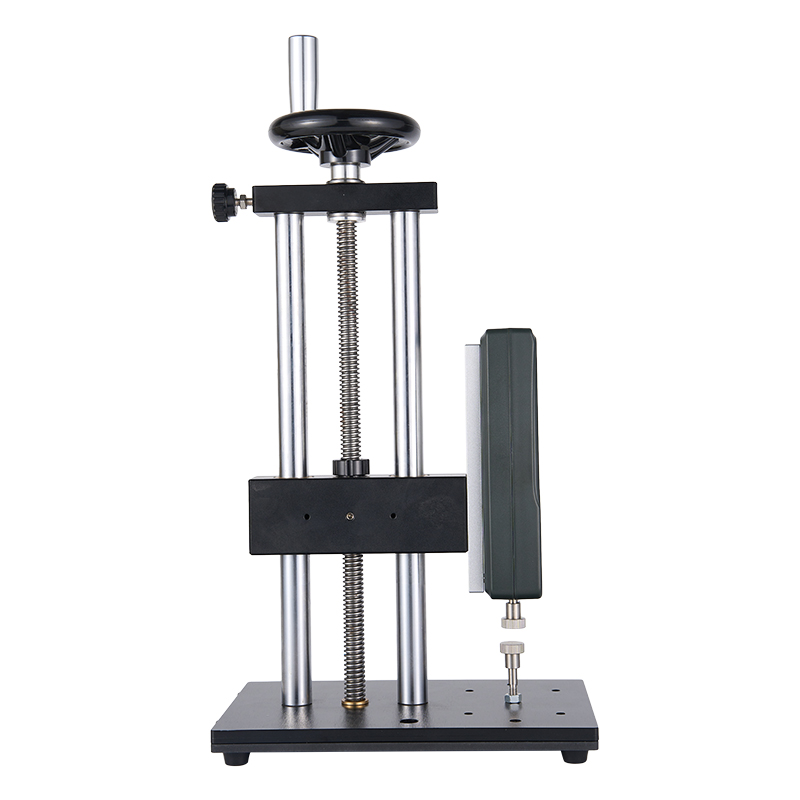

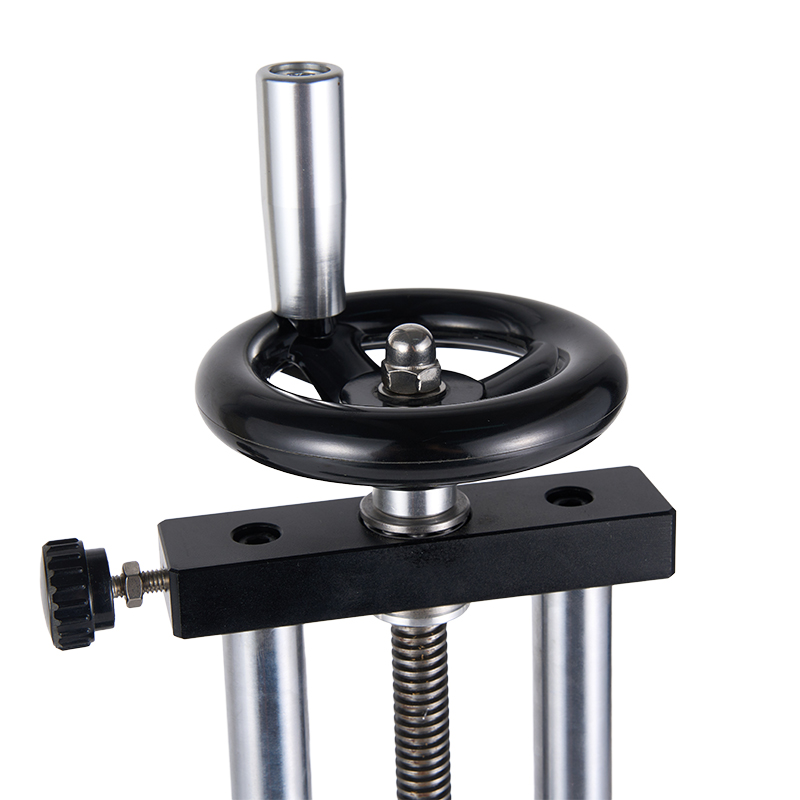

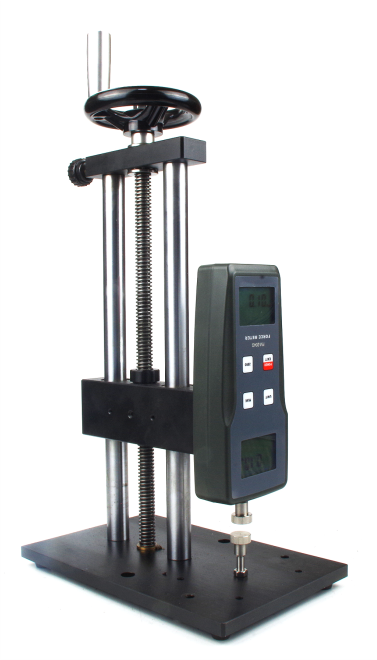

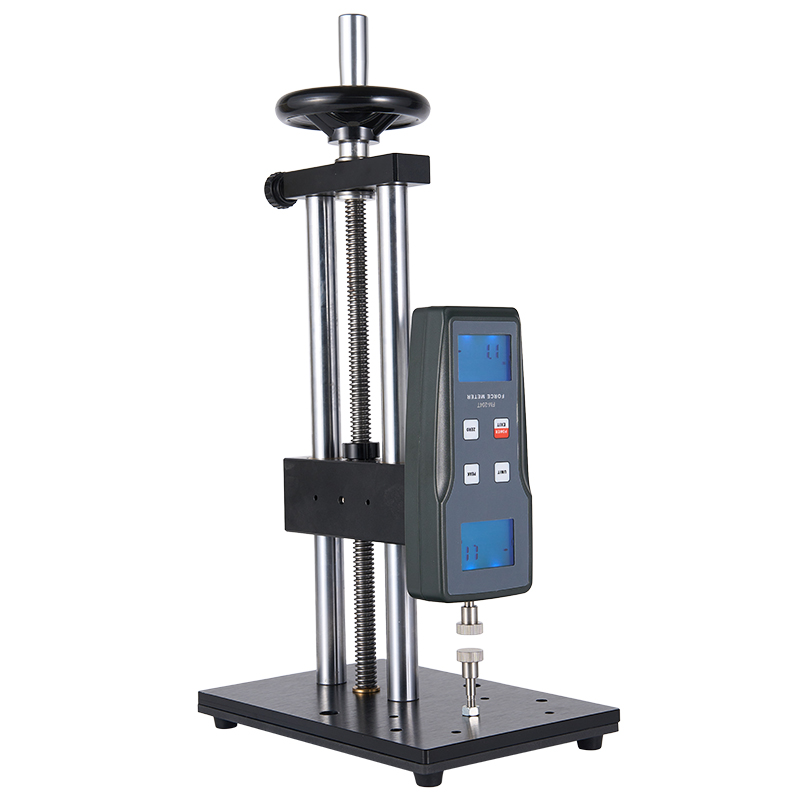

Grain feed grain hardness tester FM-204G
Spec：
0-20Kgf,0-196N,0-4426F
Model：
FM-204G
產(chǎn)品詳情
Features
* High precision and high resolution.
* Digital display, ignore the difference.
* N(Newton), kg(kg), 1B (pounds),
g(grams) four measuring units for choice, mutual conversion.
* Peak hold function. Maintain peak display until manually reset.
* Green environmental protection, can be set 10 minutes no operation
automatic shutdown; It can also be manually shut down.

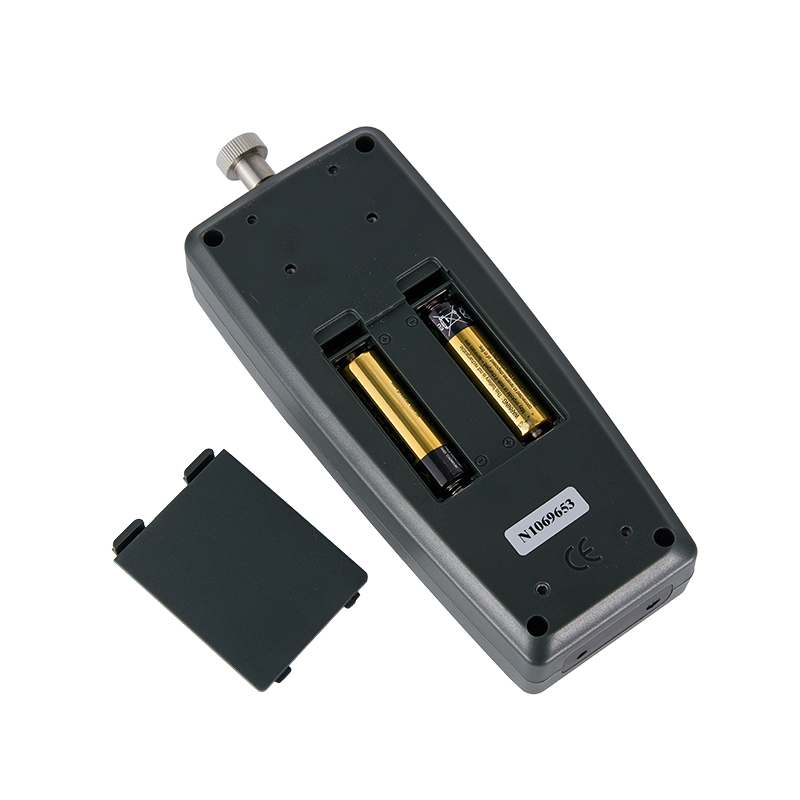

* Can be powered by alkaline batteries; Can also be connected to 5V DC power supply.
Principle
FM_204G series grain feed granule hardness tester is a kind of digital display grain feed granule hardness tester newly designed and developed by our company. It has the advantages of high precision, easy operation and convenient carrying. The scientific use test range is 10%-100% of the full scale. The metrology department recommends not to use less than 1% of the full scale. At the same time, after the instrument and the tested object are in place, press the ZERO (ZERO) key to clear the ZERO to eliminate the weight of the fixture and so on.
Specifications
Test scope
0Kgf-20Kgf,0N-196N,0F-4426F
The resolution
0.01Kgf,0.1N,0.0126F
Diameter of the test range
15mm
Precision
±0.5%FS (range) + 1 digital peak
Unit
kgf, gf, N, Lbf
Can be measured value
Peak, instantaneous value.
According to
Four big liquid crystal, the direction, double screen
Shutdown mode
Close automatically or manually shut down 10 minutes
