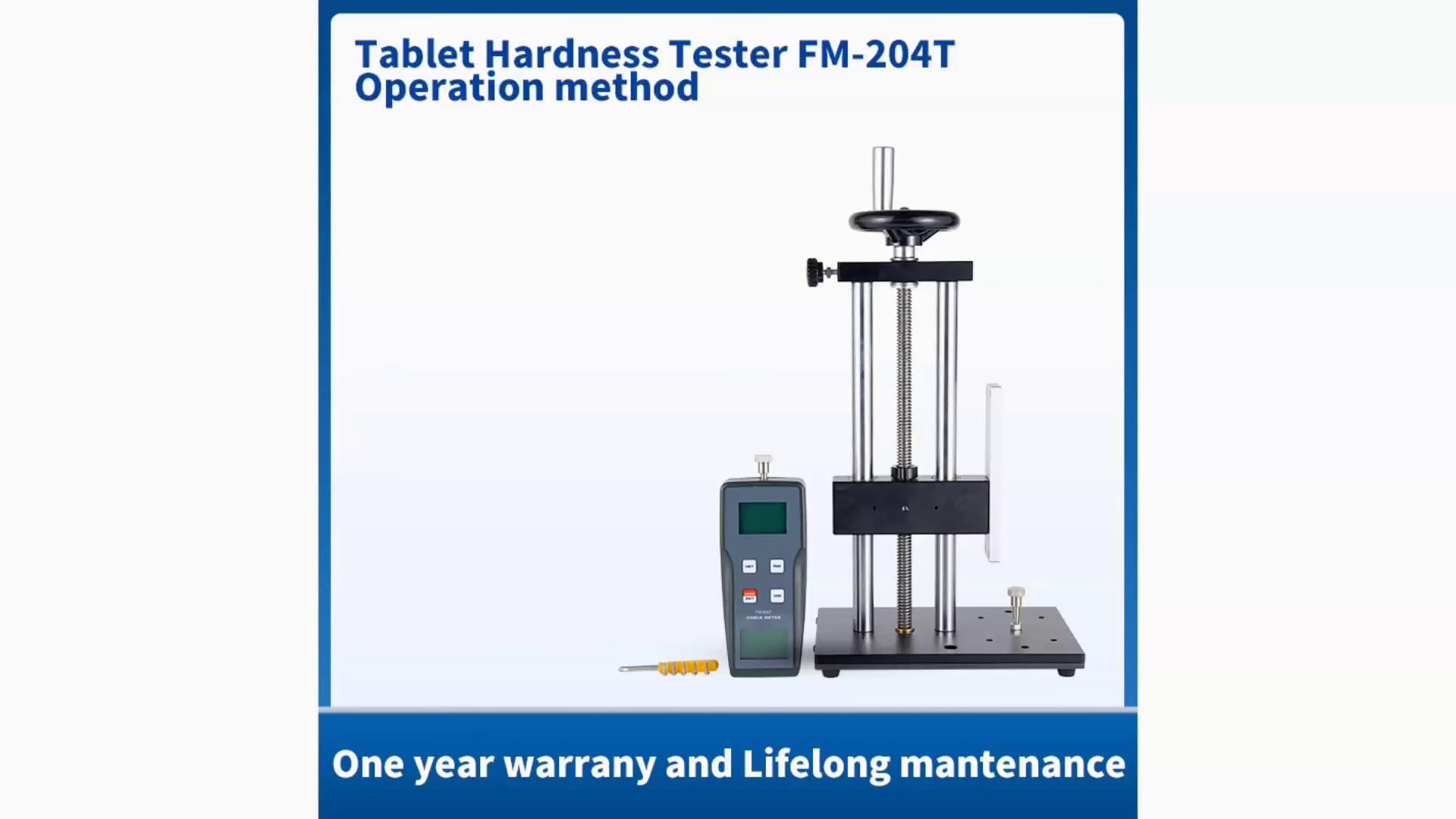

Tablet Hardness Tester FM-204T
Spec：
0-20Kgf,0-196N,0-4426F
Model：
FM-204T
產品詳情
Features
* High precision and high resolution.
* Digital display, ignore the difference.
* N(Newton), kg(kg), 1B (pounds),
g(grams) four measuring units for choice, mutual conversion.
* Peak hold function. Maintain peak display until manually reset.
* Can be powered by alkaline batteries; Can also be connected to 5V DC power supply.
Principle
Fm-204t series tablet hardness tester is a digital display tablet hardness tester designed and developed by our company. It has the advantages of high precision, easy operation and convenient carrying. The scientific use test range is 10%-100% of the full scale. The metrology department recommends not to use less than 1% of the full scale. At the same time, after the instrument and the object to be tested are in place before the test,
press the ZERO(ZERO) key to clear the ZERO to eliminate the weight of the fixture.
Specifications
Test scope
0Kgf-20Kgf,0N-196N,0F-4426F
The resolution
0.01Kgf,0.1N,0.0126F
Diameter of the test range
15mm
Precision
±0.5%FS (range) + 1 digital peak
Unit
kgf, gf, N, Lbf
Can be measured value
Peak, instantaneous value.
According to
Four big liquid crystal, the direction, double screen
