Muscle strength tester FM-204M50KG
Model: FM-204M50kg
產品詳情

 Features

* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 3 measurement unit for selection and conversion, N, kg, lb.
* With peak value hold function.
* Either alkaline battery Power supply or 5V DC power.

 Specifications

Force Range±50 kgf
±490 N
±110 Lbf
Resolution
0.01 kgf
0.01 N
0.1Lbf
Accuracy±0.5% FS ±1 Digit
Unitkgf, N, Lbf
Measurement StatePeak Value, Real Time Measurement
Display2 Reversed 4 Digit LCD
Power Off10 Mins Auto Power Off, Manual Power Off
BacklightBacklight
Safe Load150% FS ( Buzzer Alarm Over 110% FS )
Power Supply2 x 1.5 AA ( UM-3 ) Battery or 5VDC Power
OperatingTemperature: 0°C ~ 40°C
ConditionsHumidity: <80%
SurroundingNo Vibration Source or Corrosive Mwdium
Weight705g
Size

host machine:170mm*72mm*35mm

handspike:315mm*Φ30mm

Instrument stents:155mm*95mm*35mm

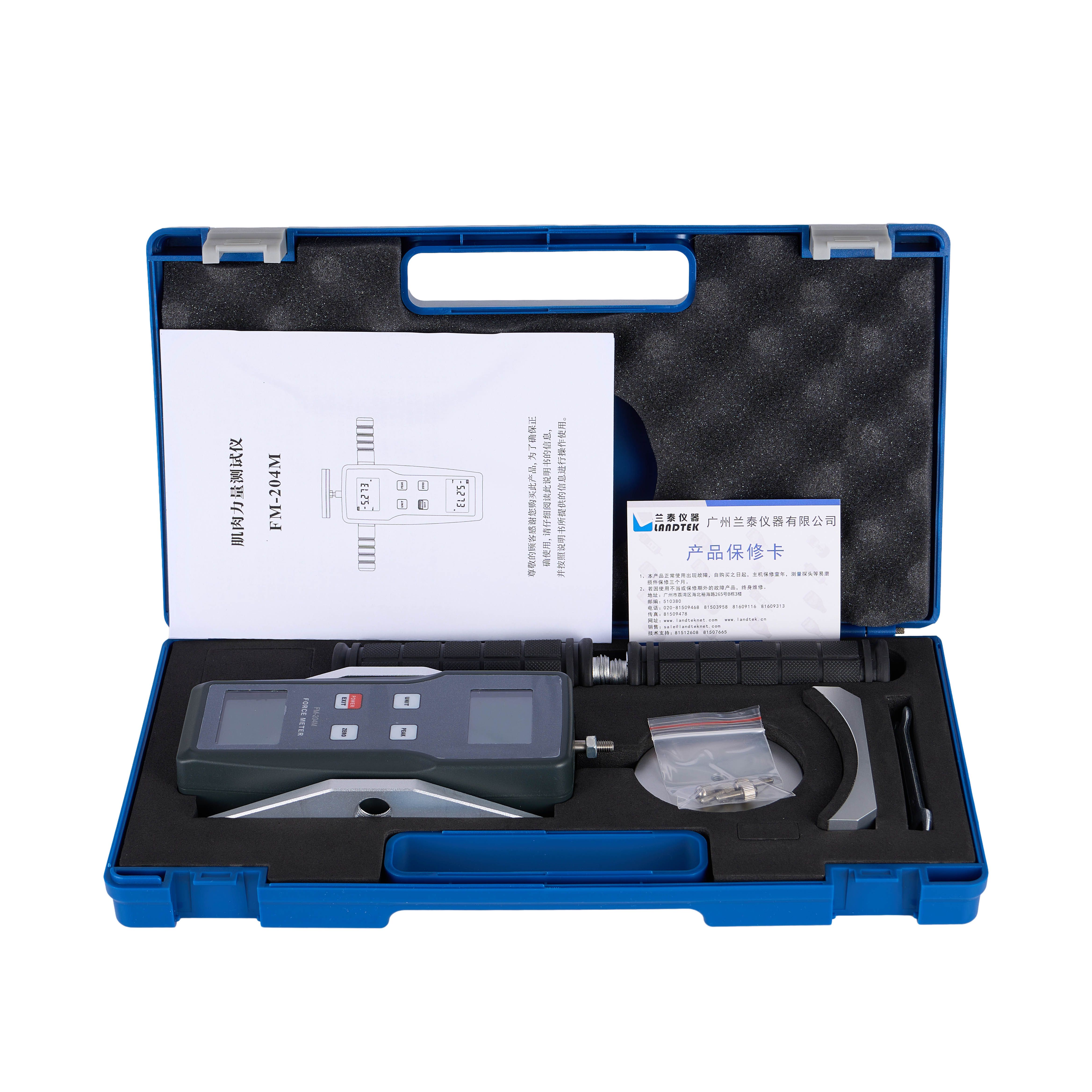

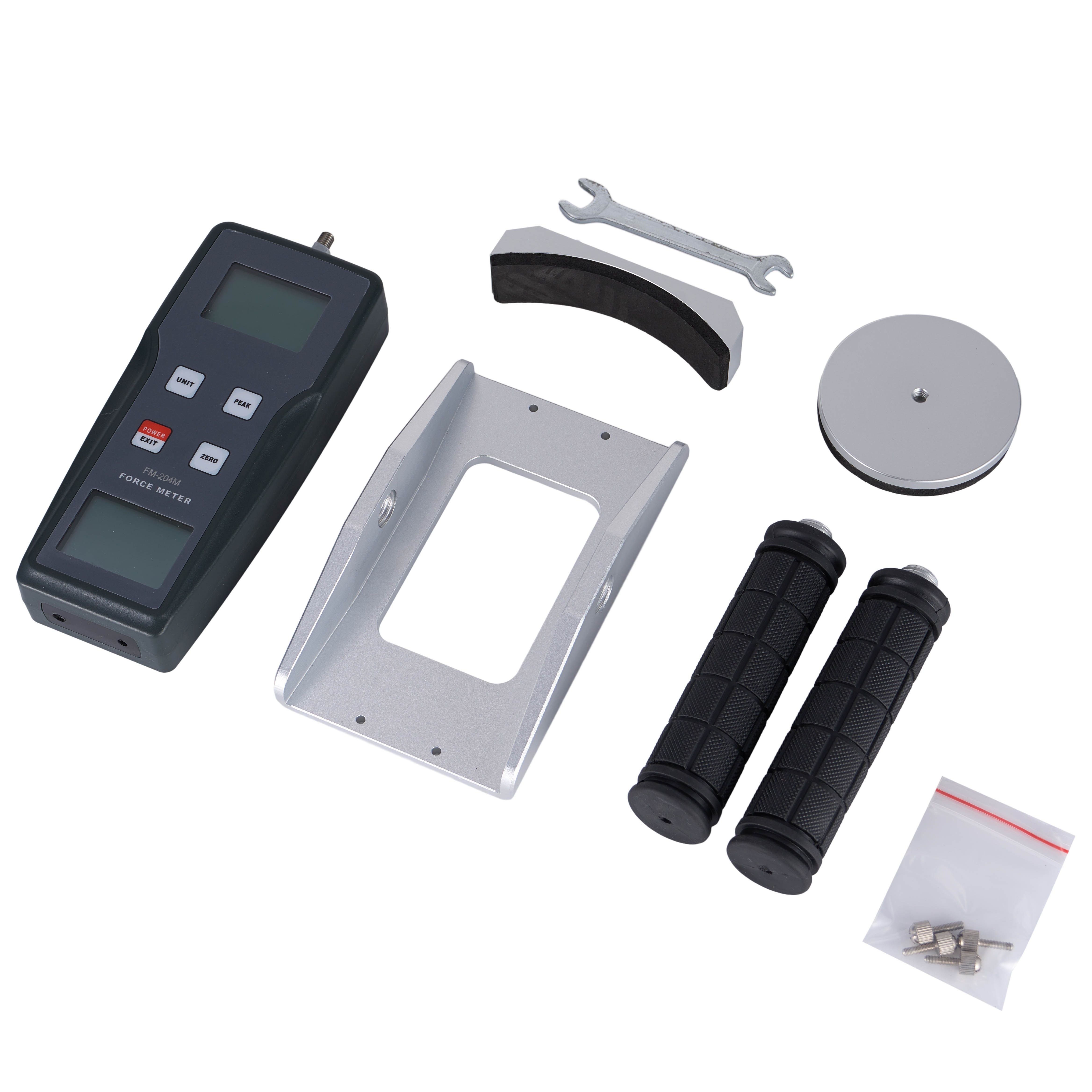

 Accessories

Standard AccessoriesManual

Carrying Case

Instrument stents
4 M3*18 screws

E-1005

Optional Accessories   External USB power supply cable
E-1004

 Downloads

  Muscle strength tester?_FM-204M_Catalog

  Muscle strength tester?_FM-204M?_EN_Manual

  RS232Software

NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
