Vehicle Brake Force Meter FM-204PB

Model：

FM-204PB

產品詳情

　Features

* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 3 measurement unit for selection and conversion, N, kg, lb.
* With peak value hold function.
* Either alkaline battery Power supply or 5V DC power.

　Specifications

Force Range	100kgf
	1000 N
	220 Lbf
Resolution	0.01 kgf
	0.01 N
	0.1Lbf
Accuracy	±0.5% FS ±1 Digit
Unit	kgf, N, Lbf
Measurement State	Peak Value, Real Time Measurement
Display	2 Reversed 4 Digit LCD
Backlight	Backlight
Safe Load	150% FS ( Buzzer Alarm Over 110% FS )

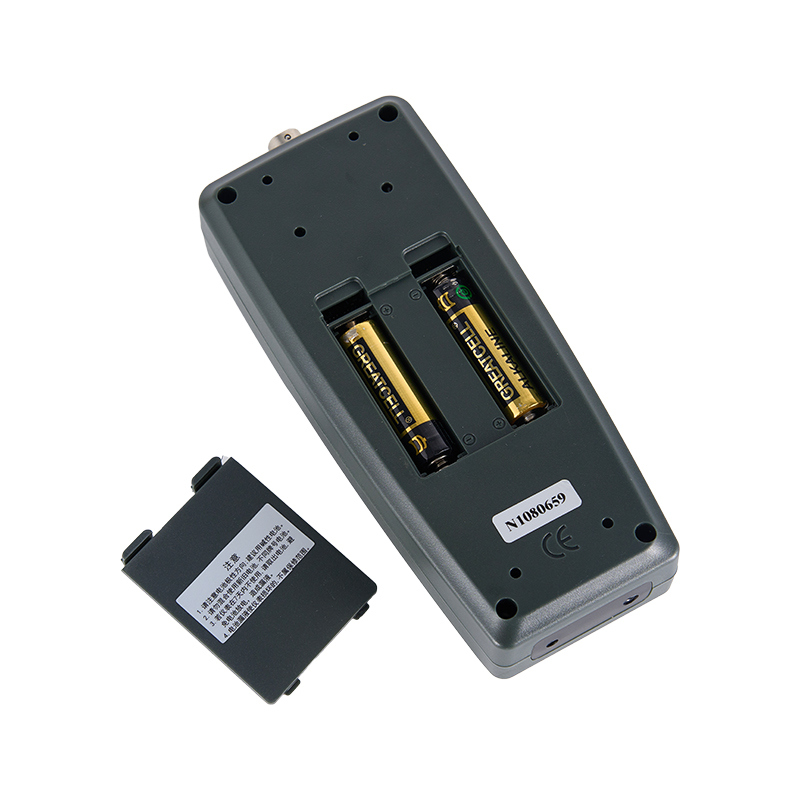

Power Supply	2 x 1.5 AA ( UM-3 ) Battery or 5VDC Power
Operating	Temperature: 0°C ~ 40°C
Conditions	Humidity: <80%
Surrounding	No Vibration Source or Corrosive Mwdium
Weight	390G
Size	host machine:211mm80mm36mm

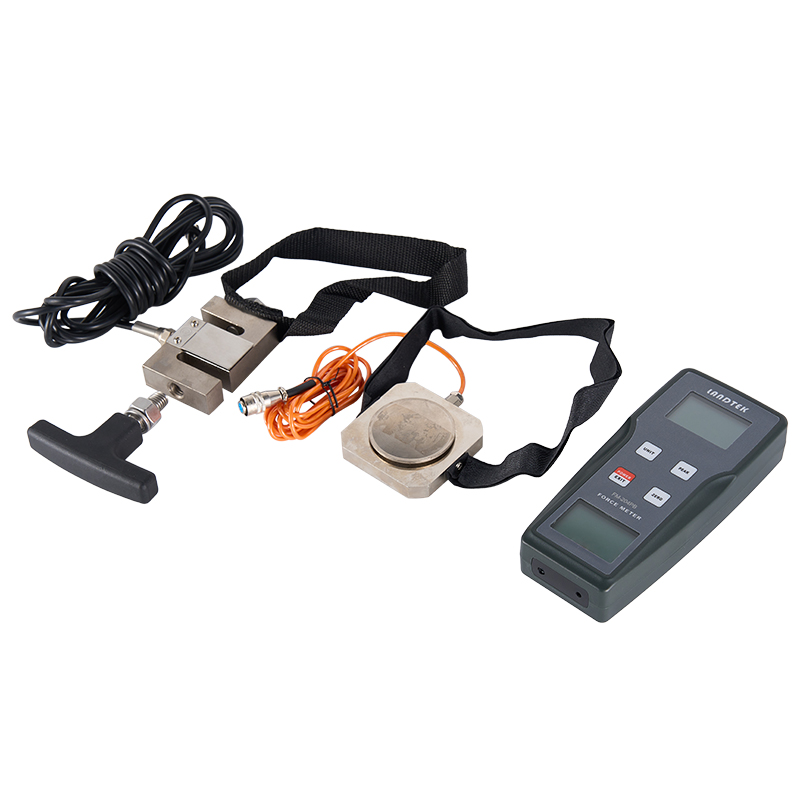

　 Accessories

Standard Accessories	specification

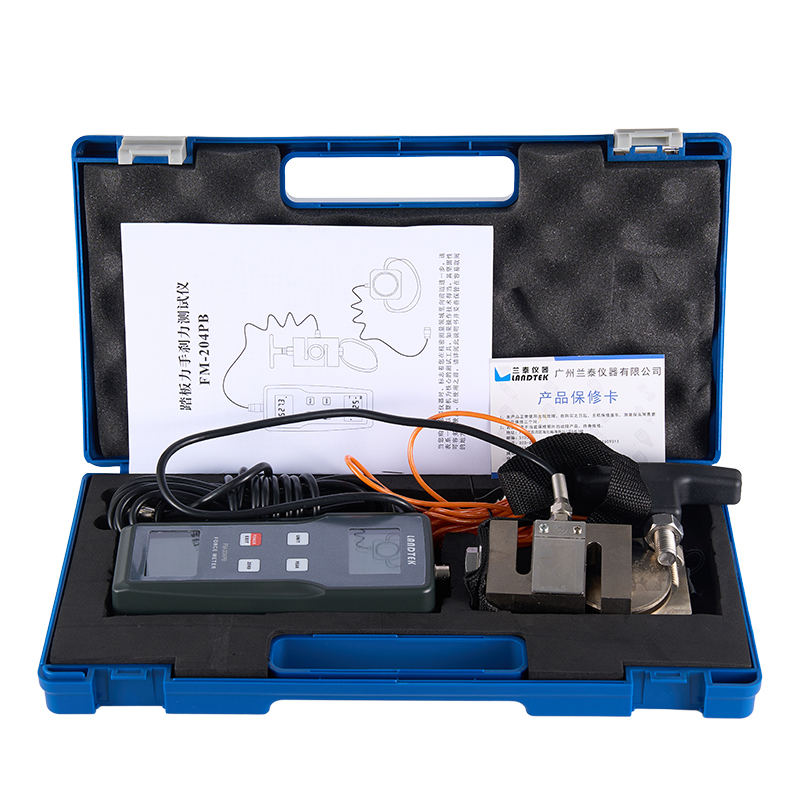

	Carrying Case

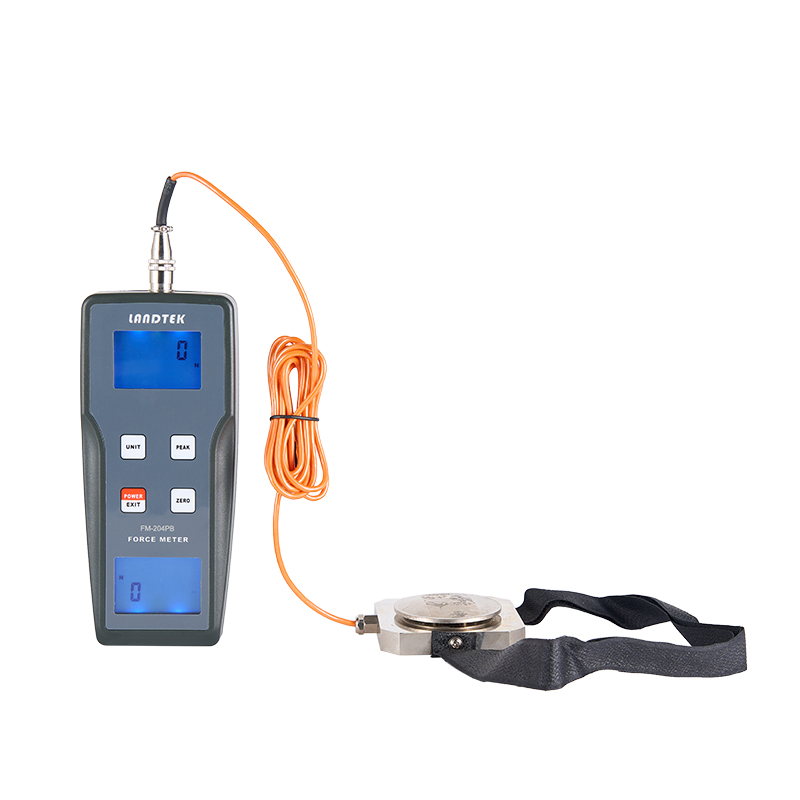

	Pedal force transducer

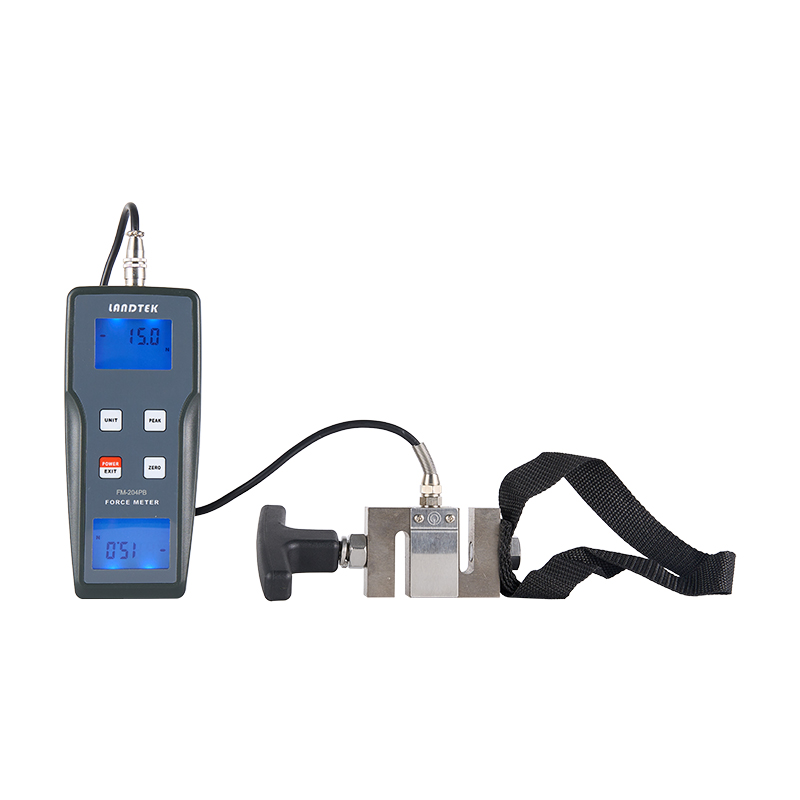

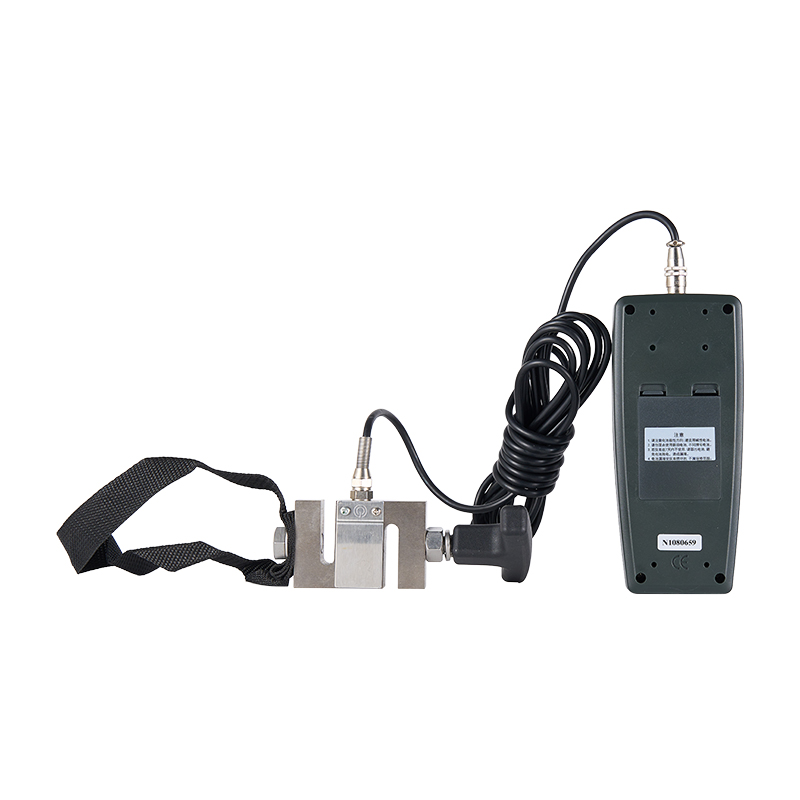

	Handbrake force sensor
Optional Accessories	power adapter

　Downloads

　Vehicle Brake Force MeterFM-204PB_Catalog

　Vehicle Brake Force MeterFM-204PB_EN_Manual

　RS232Software

NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
