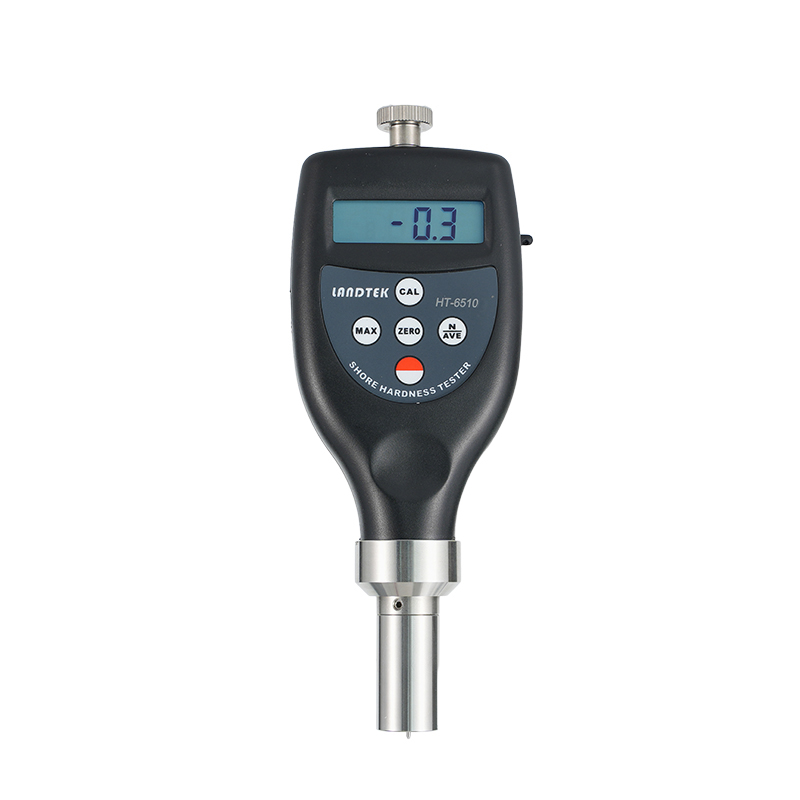

Shore Hardness Tester HT-6510AM
Spec：
Used to determine the indentation hardness of materials ranging from cellular products to rigid plastics.
Model：
HT-6510AM
產(chǎn)品詳情
Features
*AM Shore Hardness tester/Thin rubberhardness tester, suitable for determining thehardness of ordinary vulcanized rubber and itsanaloguesSample (thickness above 1.5mm) ofthe product, measured hardness values in ShoreAM hardness 20HAM(degree)-90HAM(degree)Therubber. Implementation standard :GB/T 531.1-2008 "vulcanized rubber or thermoplastic rubberpressed into the hardness testerMethod Part I:Shore hardness tester method (Shore hardness),the national standard is equivalent to theinternational standard ISOThe 7619-1-2004。
* It meets standards: DIN 53505, ISO 868, ISO7619, ASTM D 2240, JIS K7215.
* Used the exclusive Micro-computer LSI circuitand crystal time base to offer high accuracy measurement.
* Digital display gives exact reading with noguessing or errors.
* Can communicate with PC for recording, printing and analysing by the optionalsoftware and cable for RS232C interface.
* Automatic power off to conserve power.
* Use operation stand of optional parts can get good accuracy and repetitiveness due to constant measurement force to eliminate the errors caused by artificially applied different force
NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
