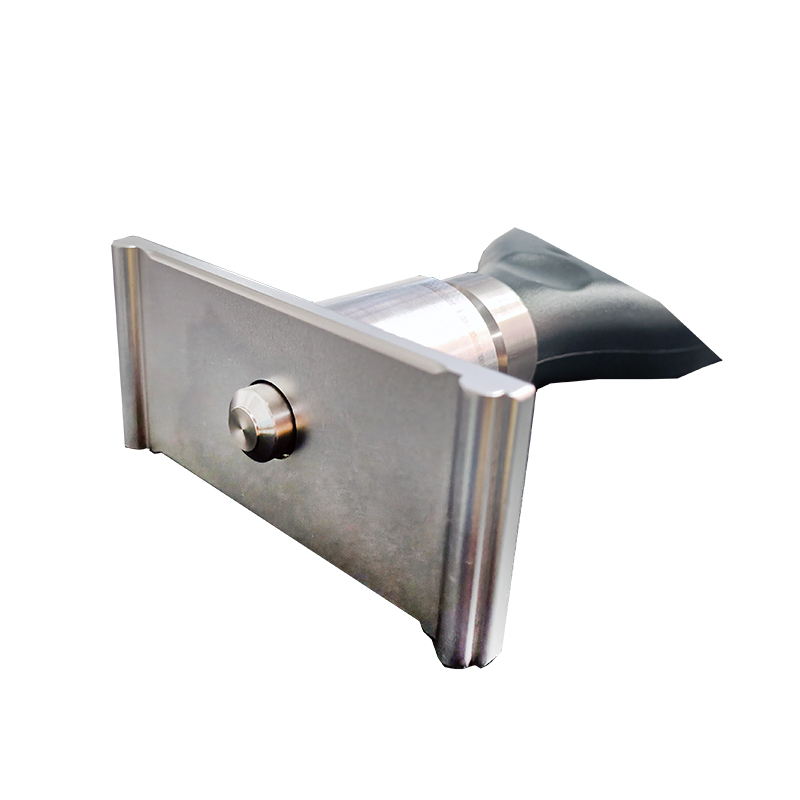

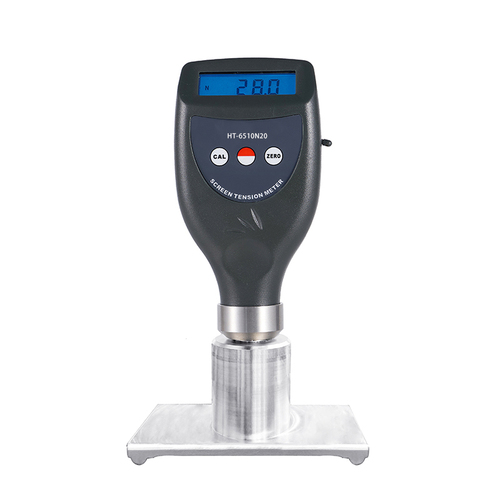

Screen Tension Tester HT-6510N20
Spec: For screen tension testing. The ideal  and necessary tool for production of precise screen and steel mesh.
Model: HT-6510N20
產(chǎn)品詳情

 Features

* Suitable for general wire mesh tension and steel mesh tension measurement.
* Suitable for screen printing and screen stencil measurement, high accuracy. The ideal   and necessary tool for production of precise screen and steel mesh. Can avoid the personal or tactile measurement error.

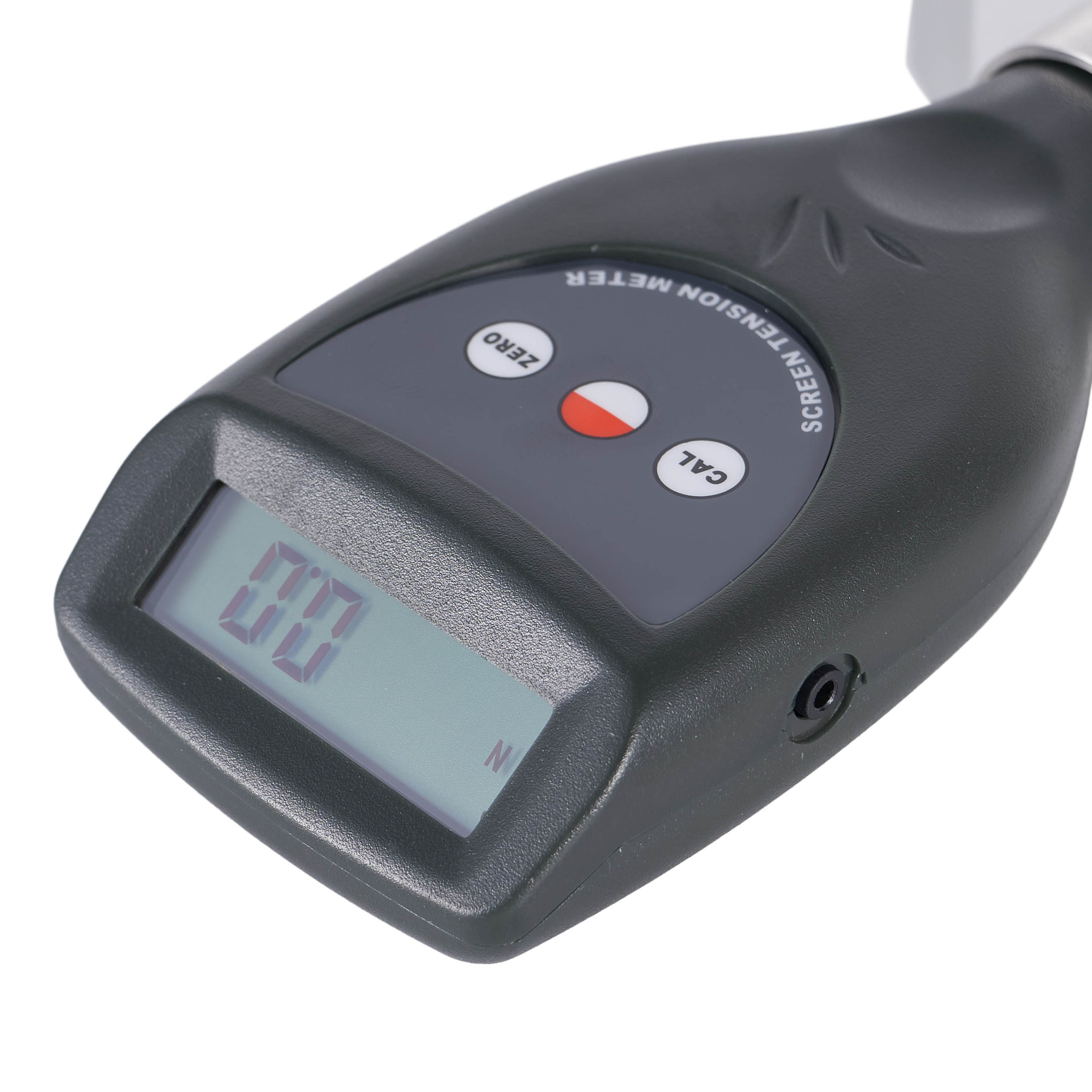

* LCD digital display, eliminating reading error.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

Specifications

Measurement Range7~20N/cm
Diaplay Range0~25N/cm
Resolution0.1
Fiducial Error5%
Operating ConditionTemp.: 0~40℃ Humidity: 10~90%RH

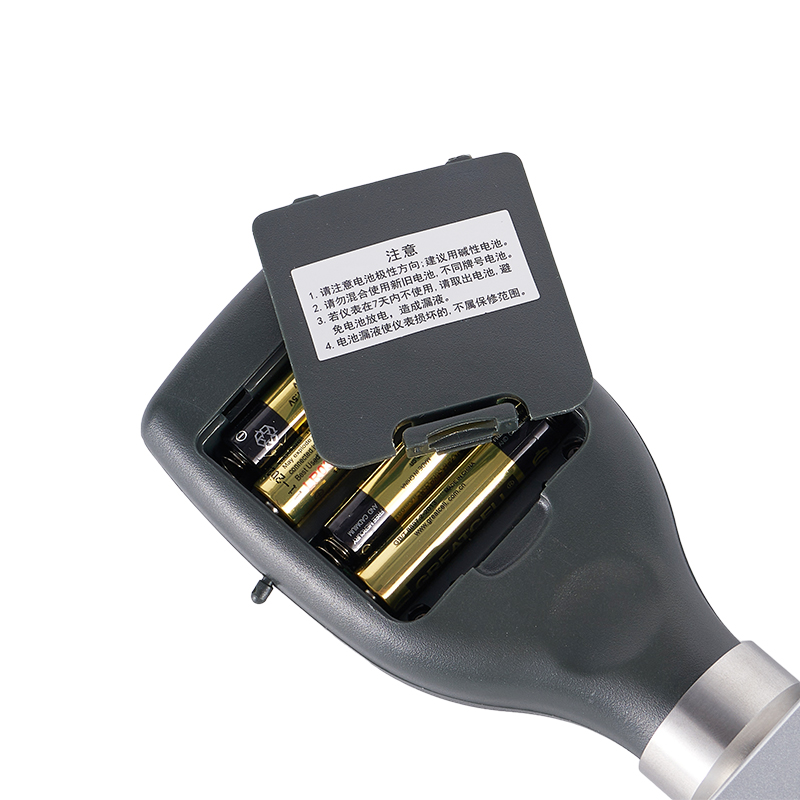

Power Supply4x1.5V AAA Size (UM-4) Battery
Dimensions175x95x40mm
Weight490g (Not Including Batteries)
Standard AccessoriesMain Unit

Calibration Board

Carrying Case

Operation Manual


 Downloads

  ScreenTensionTester_HT-6510N20_Catalog

  HT-6510N20_EN_Manual

  RS232Software

NOTE: The name of RS232 Software is 'RS232_EN_4.0.rar' after downloading. Just decompress 'RS232_EN_4.0.rar' with Decompress Software, Enter password:www.landtek.cn. a folder named 'RS232_EN_4.0' is abtained. There are RS232 Software and install instruction inside the folder.
